Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [12/2021 - ]: Wiring Diagram

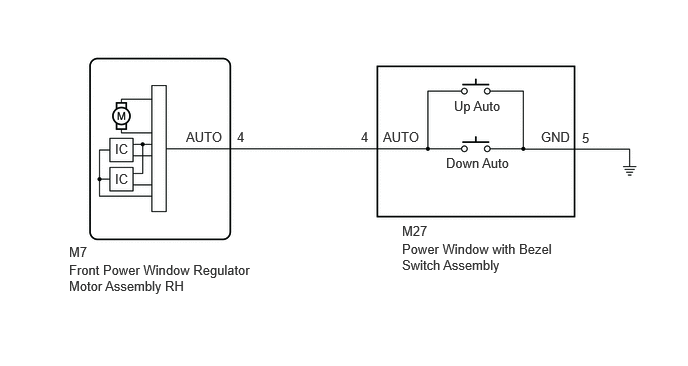

  1. w/o Door Closer System:
    GTY1081392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

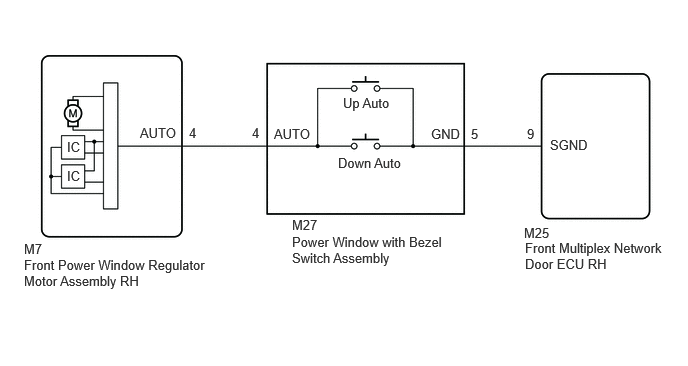

  2. w/ Door Closer System:
    GTY1080848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
