Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [12/2021 - ]: Wiring Diagram

  1. w/o Door Closer System:
    GTY1081057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

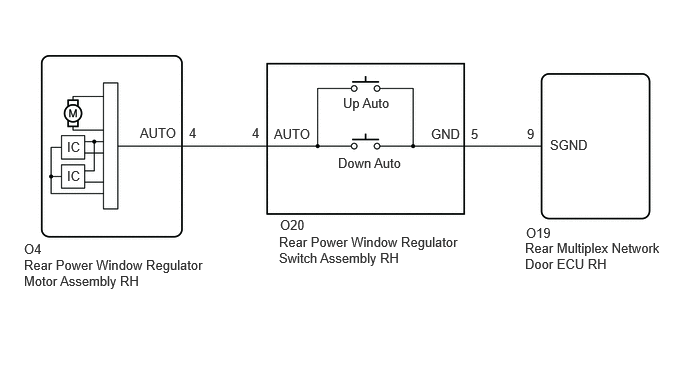

  2. w/ Door Closer System:
    GTY1080847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
