Stop And Start System - Diagnostics - Introduction
>>
Stop And Start System
>>

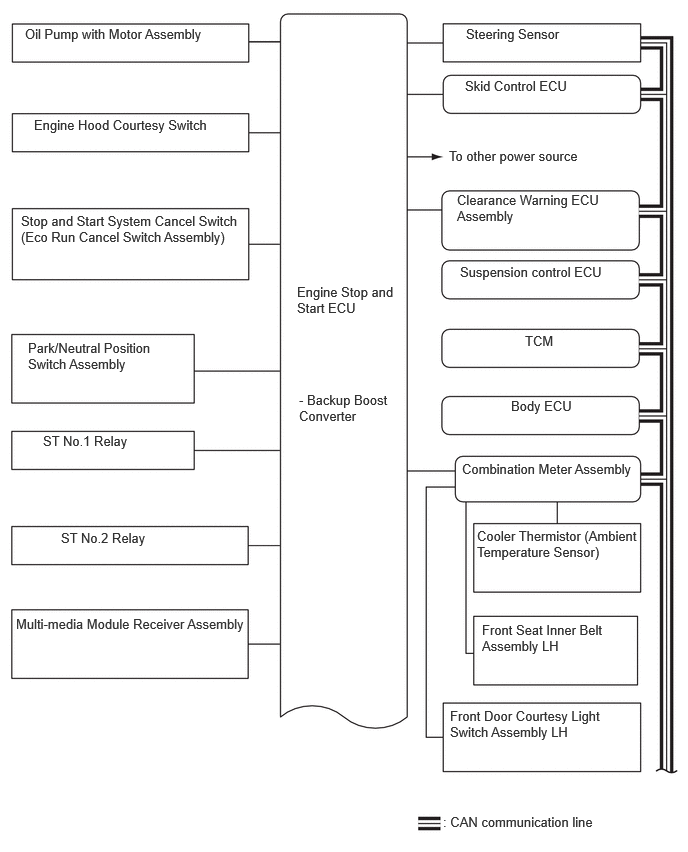

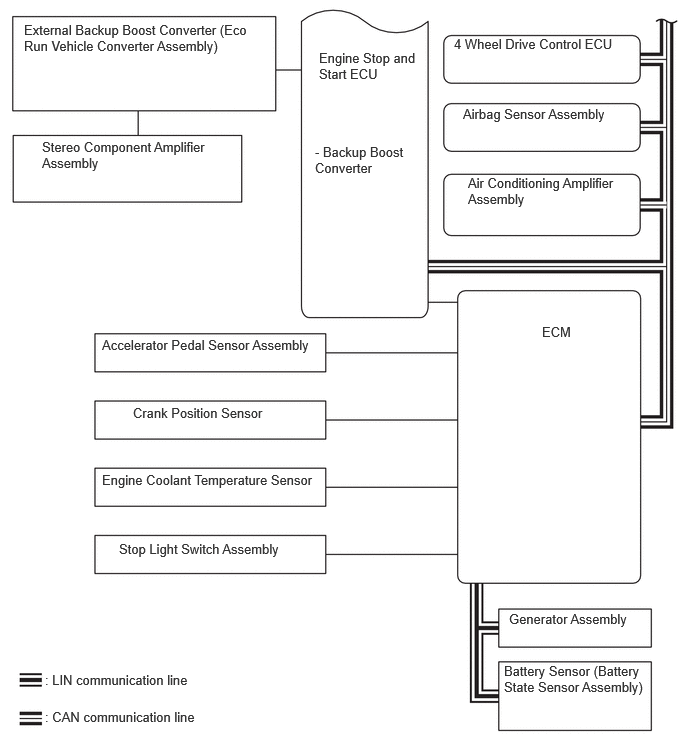

System Diagram [12/2021 - ]
>>
System Diagram [12/2021 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [12/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
