System Diagram [12/2021 - ]

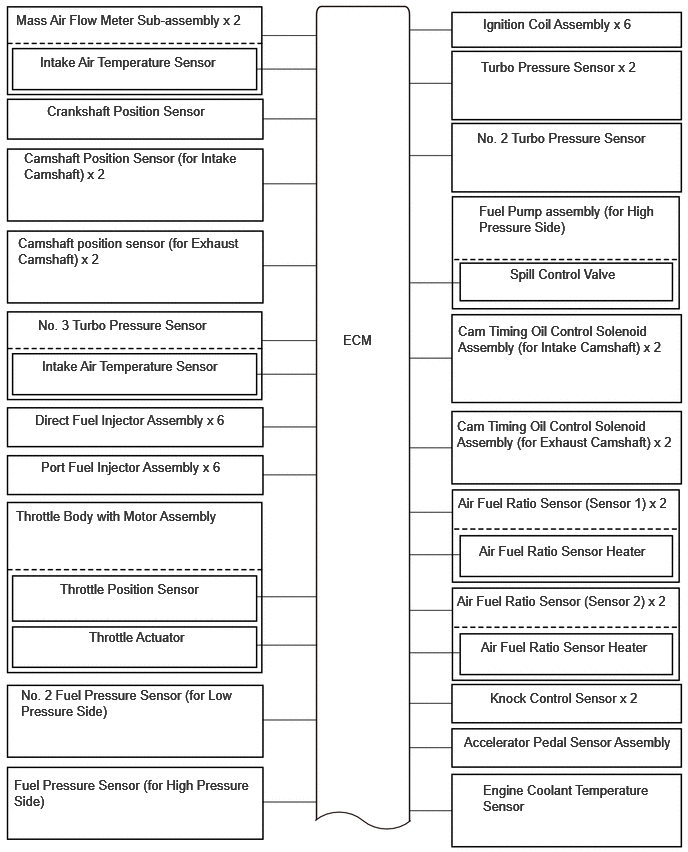

GTY1073989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

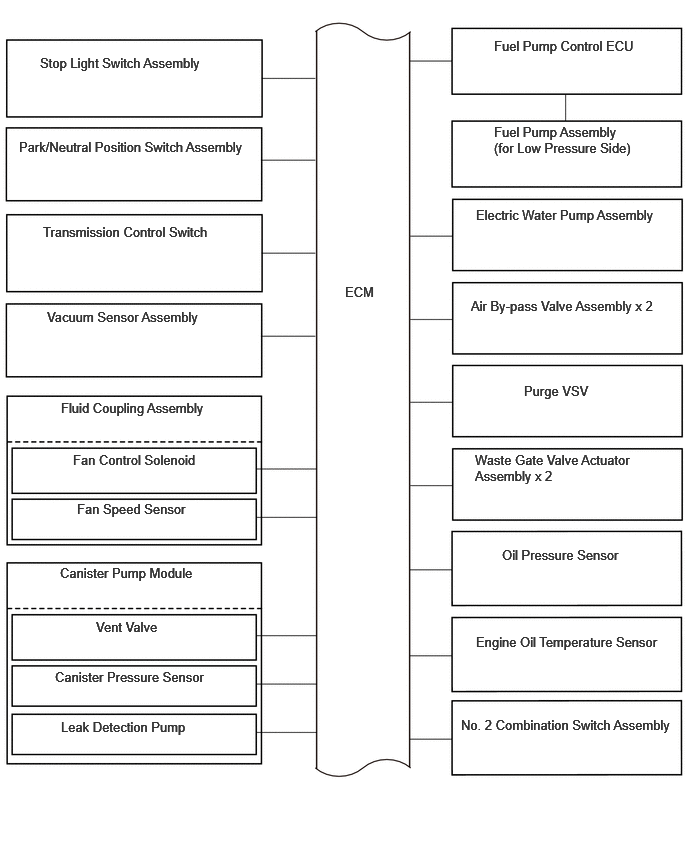

GTY1042656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

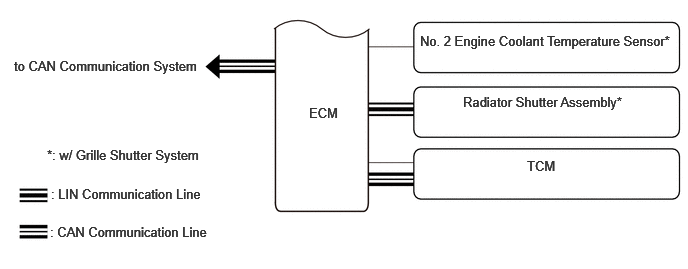

GTY1042354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
