DTC B1793-12: Load Sensor for Occupant Detection System Circuit Short to Battery [12/2021 - ]: Procedure

Pre-procedure1

• Turn the ignition switch off.
• Disconnect the cable from the negative (-) battery terminal, and wait for at least 60 seconds.

• Check that the connectors are properly connected to the airbag ECU assembly and front seat adjuster assembly RH.

  Result

  Result	Proceed to
  Connectors are properly connected	A
  Connectors are not properly connected	B

Post-procedure1

• None

Result:

B

CONNECT CONNECTORS PROPERLY

Result:

A

See step  2

Pre-procedure1

• Disconnect the airbag ECU assembly connector.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *1	Front Seat Adjuster Assembly RH
  *2	Airbag ECU Assembly
  *3	Wire Harness

• Disconnect the front seat adjuster assembly RH connector.

• Check that the connectors (on the airbag ECU assembly side and front seat adjuster assembly RH side) are not damaged.

  Result

  Result	Proceed to
  Connectors are not deformed or damaged	A
  Connectors are deformed or damaged	B

Post-procedure1

• None

Result:

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

A

See step  3

Pre-procedure1

• Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

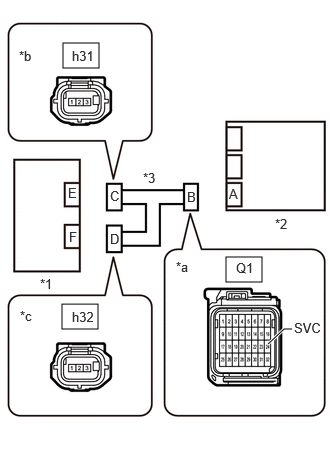

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *1	Front Seat Adjuster Assembly RH
  *2	Airbag ECU Assembly
  *3	Wire Harness
  *a	Front view of wire harness connector (to Airbag ECU Assembly)
  *b	Front view of wire harness connector (to Front Seat Adjuster Assembly RH (Front Occupant Classification Sensor LH))
  *c	Front view of wire harness connector (to Front Seat Adjuster Assembly RH (Rear Occupant Classification Sensor LH))

• Turn the ignition switch to ON.

• Measure the voltage according to the value(s) in the table below.

  Standard Voltage

  Tester Connection	Switch Condition	Specified Condition
  Q1-24 (SVC) - Body ground	Ignition switch ON	Below 1 V
  h31-1 - Body ground	Ignition switch ON	Below 1 V
  h32-1 - Body ground	Ignition switch ON	Below 1 V

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None

Result:

OK

REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [12/2021 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
