Removal [11/2021 - 03/2024]: Procedure

  1. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [11/2021 - 03/2023] , or refer to REMOVAL [03/2023 - 03/2024]

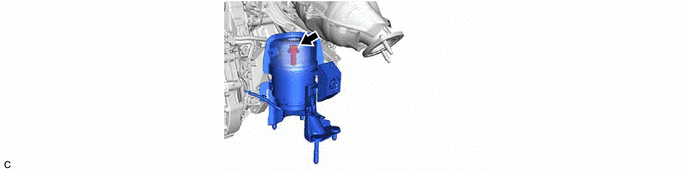

  2. REMOVE REAR ENGINE MOUNTING INSULATOR
    1. GTY1076339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

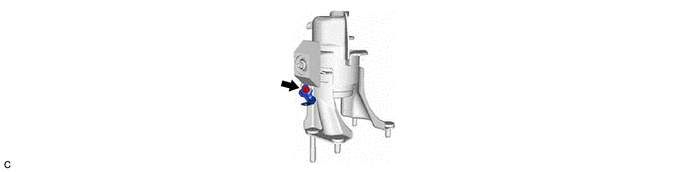

  3. REMOVE WIRE HARNESS CLAMP BRACKET
    1. GTY1077412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
