Components [11/2017 - ]

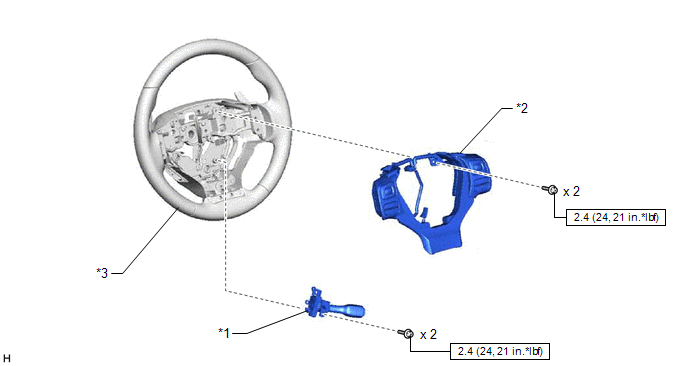

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications [11/2017 - ]
GTY821961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRUISE CONTROL MAIN SWITCH *2 STEERING PAD SWITCH ASSEMBLY
*3 STEERING WHEEL SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
