Components [01/2023 - ]

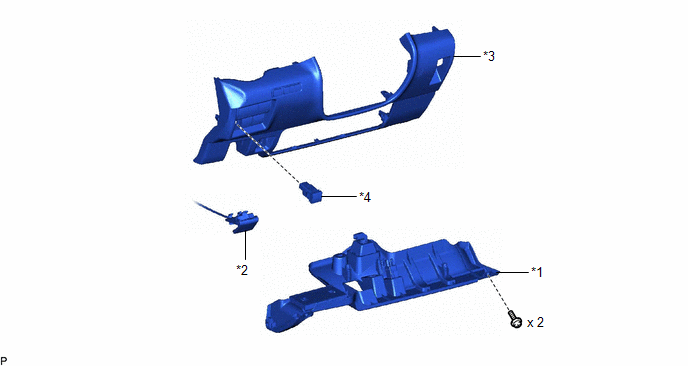

Fig 1: Blind Spot Monitor Main Switch Replacement Components [01/2023 - ]
GTY1174859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *2 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 BLIND SPOT MONITOR MAIN SWITCH ASSEMBLY (WARNING CANCELING SWITCH ASSEMBLY)
