Components [03/2019 - ]

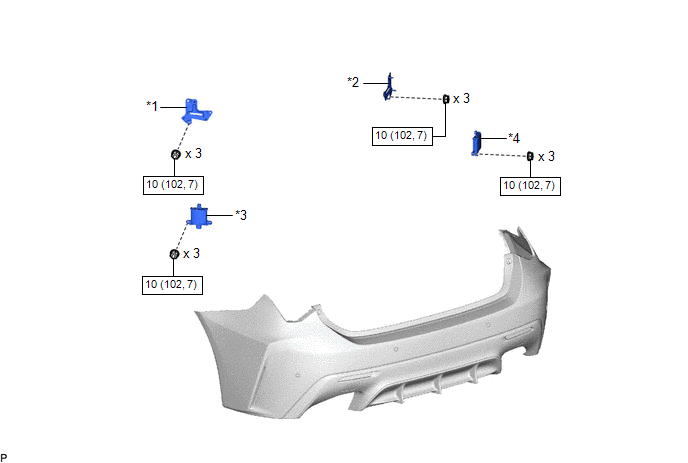

Fig 1: Blind Spot Monitor Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY960853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BLIND SPOT MONITOR BRACKET LH *2 BLIND SPOT MONITOR BRACKET RH
*3 BLIND SPOT MONITOR SENSOR LH *4 BLIND SPOT MONITOR SENSOR RH
N.m (kgf/cm, ft.lbf): Specified torque - -
