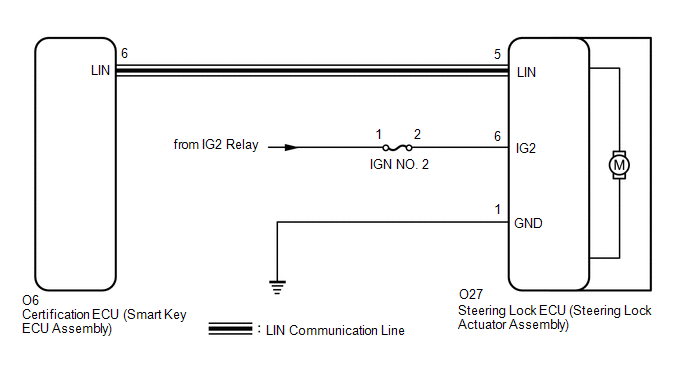

DTC B2788: IG2 Signal Malfunction [09/2014 - 01/2023]: Wiring Diagram

GTY517477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
