System Diagram [09/2014 - 01/2023]

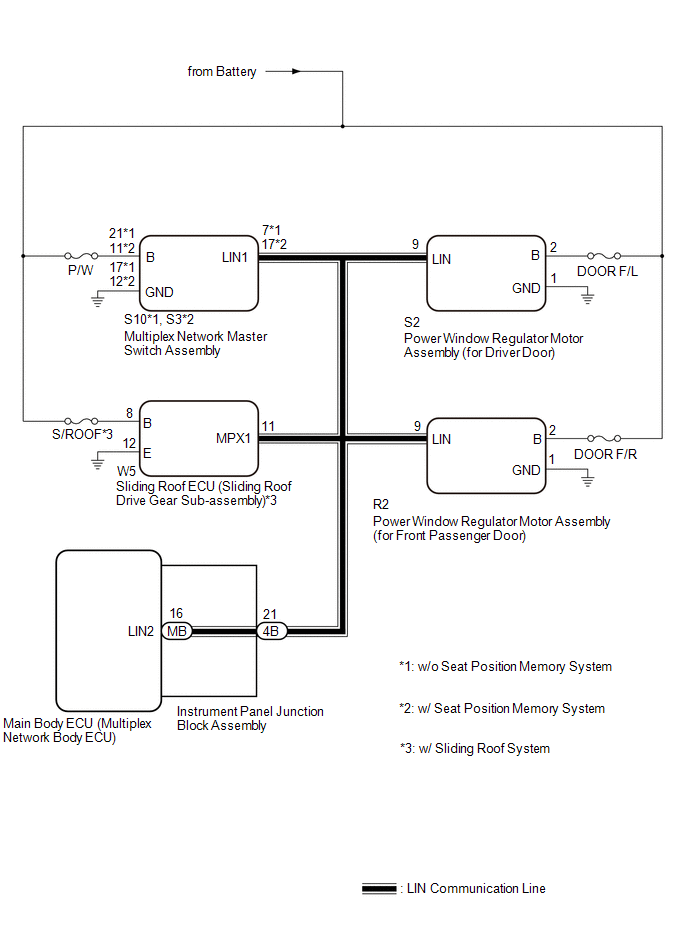

  1. DOOR BUS LINES
    GTY508163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

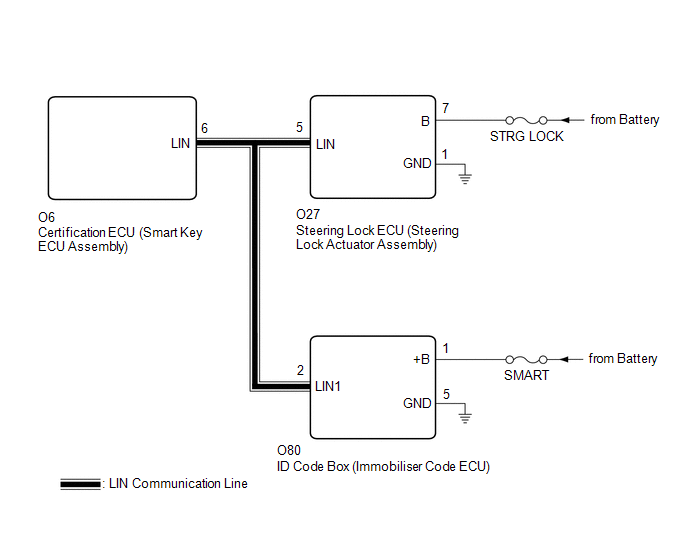

  2. CERTIFICATION BUS LINES
    GTY511943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
