System Diagram [10/2022 - ]

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

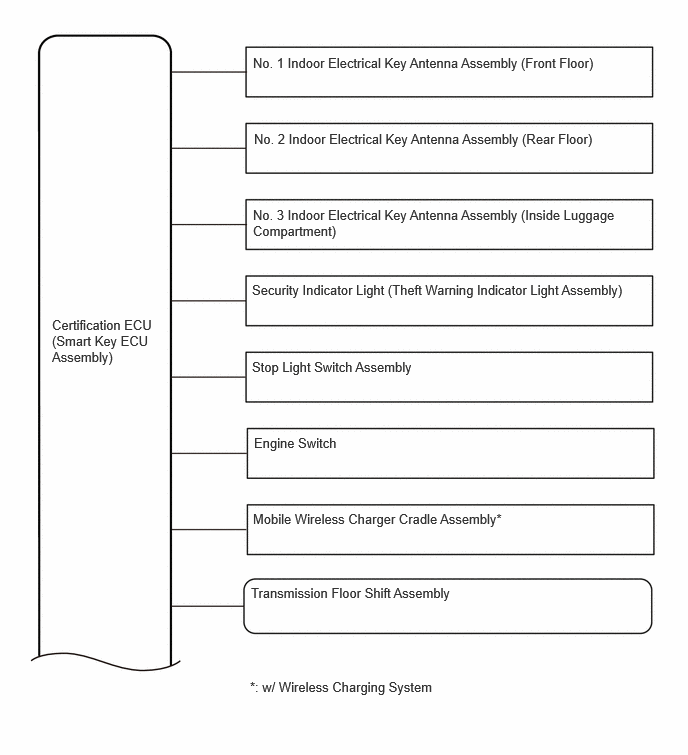

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
    GTY1126379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

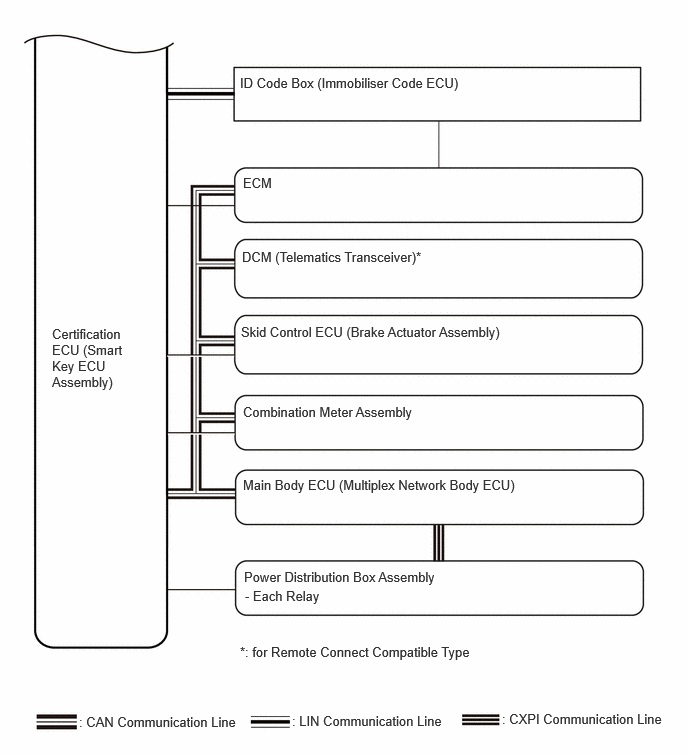

    GTY1123475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

    Refer to SYSTEM DIAGRAM [10/2022 - ]
