Section 22 (Plug-In Charge Control System - Diagnostics - Introduction)
>>
PLUG-IN CHARGE CONTROL SYSTEM (for PHEV Model)
>>
System Diagram [12/2023 - ]
>>
System Diagram [12/2023 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [12/2023 - ]
WARNING:
This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

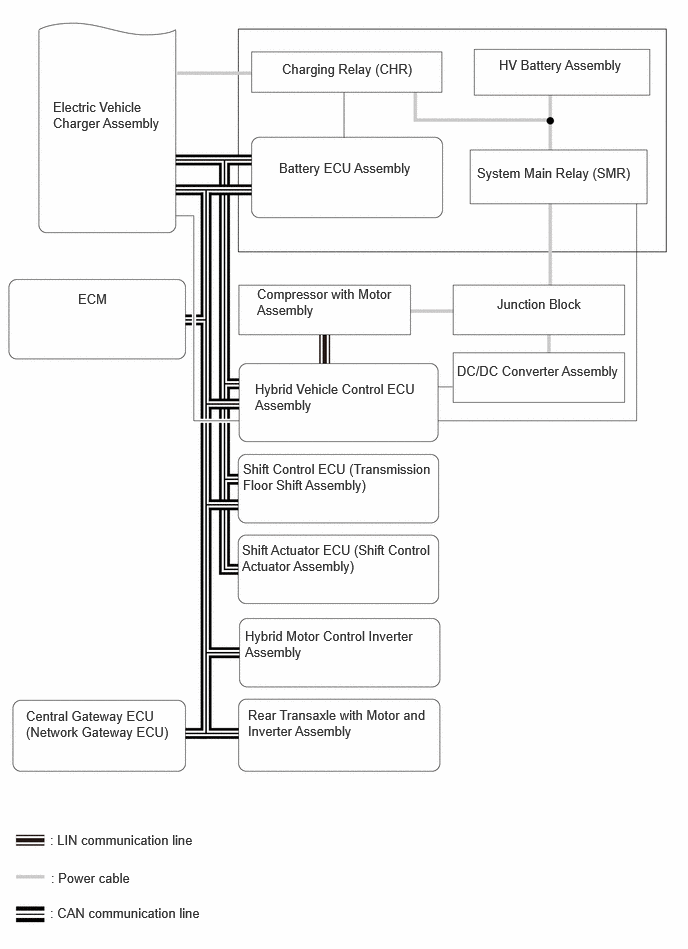

Fig 1: Plug-In Charge Control System Diagram (For Phev Model) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

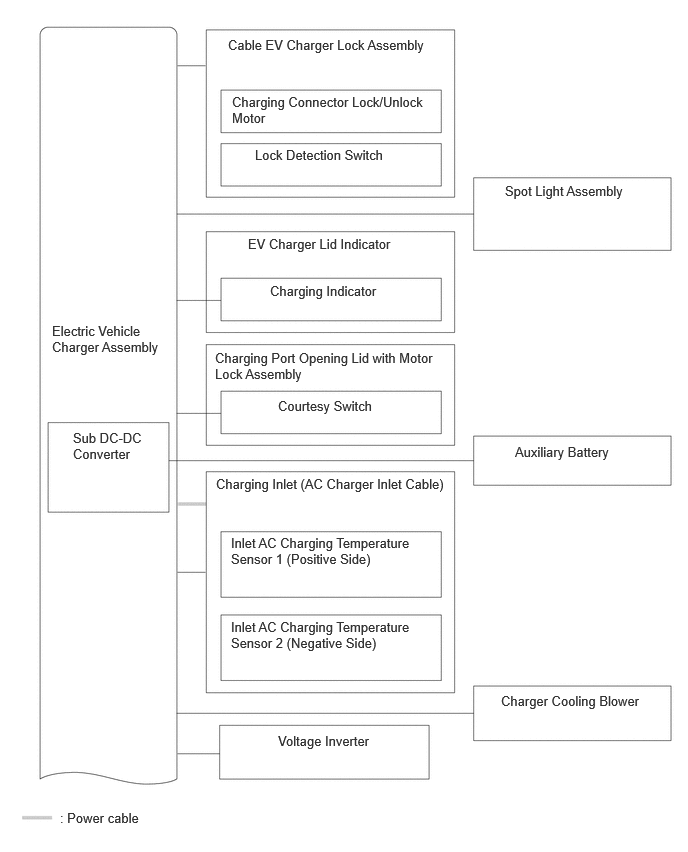

Fig 2: Plug-In Charge Control System Diagram (For Phev Model) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
