DTC P12D0-13: Fuel Pump Control (All Phase) Circuit Open; DTC P12D1-13: Fuel Pump Control (U Phase) Circuit Open; DTC P12D2-13: Fuel Pump Control (V Phase) Circuit Open; DTC P12D3-13: Fuel Pump Control (W Phase) Circuit Open [09/2023 - ]: Procedure

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

Pre-procedure1

• Disconnect the J21 fuel pump control ECU connector.

• Operate the fuel pump control ECU using the Active Test function and measure the voltage according to the value(s) in the table below.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

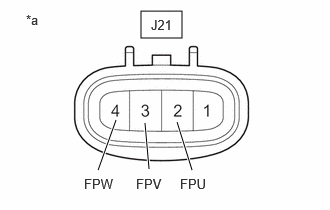

  *a	Component without harness connected (Fuel Pump Control ECU)

  Powertrain > Engine > Active Test

  Tester Display
  Fuel Pump Single Phase Energization

  Standard Voltage

  Tester Connection	GTS Operation	Specified Condition
  J21-2 (FPU) - Body ground	U Phase	4.4 to 8.4 V*
  J21-3 (FPV) - Body ground	V Phase	4.4 to 8.4 V*
  J21-4 (FPW) - Body ground	W Phase	4.4 to 8.4 V*

  HINT:

  • *: This Active Test limits the fuel pump control ECU output duty cycle to 50%. Therefore, the output voltage of the fuel pump control ECU will be approximately 50% of the power source voltage (+B terminal).
  • Before performing this inspection, check that the battery voltage is between 11 and 14 V (not depleted).

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None.

Result:

NG

REPLACE FUEL PUMP CONTROL ECU. Refer to  REMOVAL [09/2023 - ]

Result:

OK

See step  2

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

Pre-procedure1

• Disconnect the fuel pump control ECU connector.
• Disconnect the fuel pump (for low pressure side) connector.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  J21-2 (FPU) - J29-3 (BLPU)	Always	Below 1 Ω	Ω
  J21-3 (FPV) - J29-4 (BLPV)	Always	Below 1 Ω	Ω
  J21-4 (FPW) - J29-2 (BLPW)	Always	Below 1 Ω	Ω

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None.

Result:

OK

REPLACE FUEL PUMP (FOR LOW PRESSURE SIDE). Refer to  REMOVAL [09/2023 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
