Backup Boost Converter Circuit [09/2023 - ]: Procedure

  1. CHECK PROBLEM SYMPTOMS
    1. Determine the trouble area by referring to the table below.
      Effect on Vehicle Trouble Area/Cause Fail-safe DTC Output Stop and start cancel indicator Symptom Proceed to
      When the engine is restarted by stop and start control:
      The following symptoms may occur
      • Audio and visual system is reset
      • The combination meter assembly fades out
      • The steering wheel feels heavy when the engine is restarted*

        *A DTC may be stored in the power steering system

      		 Backup boost converter internal malfunction
      • Internal power source malfunction
      • Internal power source overvoltage
      • Duty error
      • Communication cycle error
      		 Stop and start control prohibited P323A-00
      P323B-29
      P323B-38      		 Does not come on Converter output voltage cannot be boosted when the engine is restarted A
      Battery voltage drop
      Systems on the converter output side do not operate
      B41 terminal: Tire pressure warning system
      B43 terminal: Both of the following will not operate
      • Lighting system
      • Digital rear-view mirror system

      IG41 terminal: All of the following will not operate
      • Tire pressure warning system
      • Parking support brake system
      • Intuitive parking assist system
      • Air conditioning system

      EMOP terminal: The oil pump with solenoid assembly will not operate      		 Overcurrent applied to an output terminal (output terminal relay circuit is shutoff) Stop and start control is prohibited
      (Connected ECUs or sensors may detect power source malfunction DTCs)      		 X087A Blinks Systems do not operate as power supply from the converter is cut off E
      Systems do not operate
      (Due to converter input side malfunction)
      IGP terminal: All of the following will not operate
      • Tire pressure warning system
      • Meter / gauge system
      • Parking support brake system
      • Electronically controlled brake system
      • Power steering system
      • Intuitive parking assist system
      • Air conditioning system

      IGR terminal: -
      ACC terminal: -      		 Converter input circuit malfunction
      • Open or short to GND in IGR circuit
      • Open or short to GND in IGP circuit
      • Open or short to GND in ACC circuit
      		 Stop and start control prohibited - Does not blink (Blinks when communication error DTCs are stored) Systems do not operate as power supply from the converter is cut off B
      Systems on the converter output side do not operate (varies depending on the malfunctioning relay circuit the converter detected)
      IG12 terminal: The meter / gauge system will not operate
      IG31 terminal: Both of the following will not operate
      • Electronically controlled brake system
      • Power steering system

      IG41 terminal: All of the following will not operate
      • Tire pressure warning system
      • Parking support brake system
      • Intuitive parking assist system
      • Air conditioning system

      B41 terminal: Tire pressure warning system
      B43 terminal: Both of the following will not operate
      • Lighting system
      • Digital rear-view mirror system

      IL41 terminal: Both of the following will not operate
      • Lighting system
      • Air conditioning system
      		 Malfunction in circuits the converter supplies power to
      (between the converter and ECUs or sensors)      		 Related systems do not operate as the relay circuit in the converter is turned off - Does not blink (Blinks when communication error DTCs are stored) Systems do not operate as power supply from the converter is cut off B
      All of the following systems do not operate
      • Tire pressure warning system
      • Audio and visual system
      • Meter / gauge system
      • Electronically controlled brake system
      • Power steering system
      • Air conditioning system
      • Parking support brake system
      • Digital rear-view mirror system
      • Lighting system
      • Intuitive parking assist system
      • Open in BBC fuse circuit
      • Short in converter circuit
      • Backup boost converter malfunction
      		 Stop and start control prohibited P0615-11 Does not blink (Due to disabled meter / gauge system) All systems that the converter supplies power to do not operate (see circuit diagram) A
      P323A-00
      P323A-16
      P323B-29
      P323B-38
      The audio does not operate (until the ignition switch is turned off) Excessive audio volume Data List item "State of BBC" displays "BBC Overcurrent" while the circuit is protected The relay circuit in the converter is turned off to cut off power supply to the audio and visual system (Returns to normal when the ignition switch is turned off) - Does not blink If overcurrent is detected in the audio and visual system, system operation is disabled while the ignition switch is ON (Returns to normal when the ignition switch is turned off) C
      The external backup boost converter (eco run vehicle converter assembly) output side system does not operate
      • Audio and visual system
      • Open in +BA NO. 2 fuse circuit
      • Malfunction in circuits the converter supplies power to
      • External backup boost converter (eco run vehicle converter assembly) malfunction
      		 - - Does not blink All systems that the converter supplies power to do not operate (see circuit diagram) D
      • The combination meter assembly cannot be turned off (short between IG12 and +B)
      HINT: Varies depending on the number of times an open occurs in the +B circuit      		 Converter circuit malfunction
      • Short between IG12 and +B
      		 - - Does not blink The converter cannot shut off the power source when the ignition switch is turned off B
      • Ignition switch cannot be turned off from ACC (short between ACC and +B)
      • Ignition switch cannot be turned off from ON (short between IGP or IGR and +B)
      		 Engine stop and start ECU power source circuit malfunction
      • Short between ACC and +B
      • Short between IGP and +B
      • Short between IGR and +B
      		 - - Does not blink
      • Ignition switch does not turn ACC
      • Ignition switch cannot be turned off
      		 B

      Result

      Proceed to
      A
      B
      C
      D
      E

    Result:

    A

    GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2023 - ]

    Result:

    C

    See step  5

    Result:

    D

    See step  7

    Result:

    E

    See step  13

    Result:

    B

    See step  2

  2. CHECK ENGINE STOP AND START ECU (POWER SOURCE CIRCUIT)
    1. Disconnect the engine stop and start ECU connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B24-1 (BIN2) - Body ground Always 9.5 to 14 V
      B24-3 (BIN1) - Body ground Always 9.5 to 14 V
    3. Turn the ignition switch to ACC.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      D26-19 (ACC) - Body ground Ignition switch ACC 9.5 to 14 V
    5. Turn the ignition switch to ON.
    6. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      D26-21 (IGR) - Body ground Ignition switch ON 9.5 to 14 V
      D26-18 (IGP) - Body ground Ignition switch ON 9.5 to 14 V
    7. Turn the headlight dimmer switch (light control switch) to the tail or head position.
    8. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      D26-20 (ILL) - Body ground Headlight dimmer switch (light control switch) in tail or head position 9.5 to 14 V
    9. Turn the headlight dimmer switch (light control switch) to off.
    10. Turn the ignition switch off.
    11. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      D26-21 (IGR) - Body ground Ignition switch off 0 to 1 V
      D26-19 (ACC) - Body ground Ignition switch off 0 to 1 V
      D26-18 (IGP) - Body ground Ignition switch off 0 to 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - EACH ECU OR SENSOR)
    1. Disconnect the connector from the corresponding system ECU/sensor.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TIRE PRESSURE WARNING ECU AND RECEIVER

      Tester Connection Condition Specified Condition
      D26-3 (IG41) - J4-1 (IG) Always Below 1 Ω
      D26-2 (B41) - J4-7 (+B) Always Below 1 Ω
      D26-3 (IG41) - Body ground Always 10 kΩ or higher
      J4-1 (IG) - Body ground Always 10 kΩ or higher
      D26-2 (B41) - Body ground Always 10 kΩ or higher
      J4-7 (+B) - Body ground Always 10 kΩ or higher
      METER MIRROR SUB-ASSEMBLY (W/ HEADUP DISPLAY)

      Tester Connection Condition Specified Condition
      D26-10 (IG12) - D11-10 (IG) Always Below 1 Ω
      D26-10 (IG12) - Body ground Always 10 kΩ or higher
      D11-10 (IG) - Body ground Always 10 kΩ or higher
      CLEARANCE WARNING ECU ASSEMBLY

      Tester Connection Condition Specified Condition
      D26-3 (IG41) - B32-1 (IG) Always Below 1 Ω
      D26-3 (IG41) - Body ground Always 10 kΩ or higher
      B32-1 (IG) - Body ground Always 10 kΩ or higher
      INNER REAR VIEW MIRROR ASSEMBLY

      Tester Connection Condition Specified Condition
      D26-11 (B43) - K3-6 (+B) Always Below 1 Ω
      D26-11 (B43) - Body ground Always 10 kΩ or higher
      K3-6 (+B) - Body ground Always 10 kΩ or higher

      *: w/o Digital Inner Mirror System

      POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY)

      Tester Connection Condition Specified Condition
      D26-23 (IG31) - C35-4 (IG) Always Below 1 Ω
      D26-23 (IG31) - Body ground Always 10 kΩ or higher
      C35-4 (IG) - Body ground Always 10 kΩ or higher
      BRAKE ACTUATOR ASSEMBLY

      Tester Connection Condition Specified Condition
      D26-23 (IG31) - B31-45 (IGR) Always Below 1 Ω
      D26-23 (IG31) - Body ground Always 10 kΩ or higher
      B31-45 (IGR) - Body ground Always 10 kΩ or higher
      COMBINATION METER ASSEMBLY

      Tester Connection Condition Specified Condition
      D26-10 (IG12) - D16-6 (IG+) Always Below 1 Ω
      D26-10 (IG12) - Body ground Always 10 kΩ or higher
      D16-6 (IG+) - Body ground Always 10 kΩ or higher
      NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

      Tester Connection Condition Specified Condition
      D26-25 (IL41) - D110-10 (ILL+) Always Below 1 Ω
      D26-3 (IG41) - D110-9 (IG) Always Below 1 Ω
      D26-25 (IL41) - Body ground Always 10 kΩ or higher
      D26-3 (IG41) - Body ground Always 10 kΩ or higher
      D110-10 (ILL+) - Body ground Always 10 kΩ or higher
      D110-9 (IG) - Body ground Always 10 kΩ or higher
      DOME CUT NO. 2 RELAY

      Tester Connection Condition Specified Condition
      D26-11 (B43) - 5 (DOME CUT NO. 2 relay) Always Below 1 Ω
      D26-11 (B43) - Body ground Always 10 kΩ or higher
      5 (DOME CUT NO. 2 relay) - Body ground Always 10 kΩ or higher
      ROOM LIGHT CONTROL RELAY

      Tester Connection Condition Specified Condition
      D26-11 (B43) - D54-1 (+B) Always Below 1 Ω
      D54-1 (+B) - Body ground Always 10 kΩ or higher
      D26-11 (B43) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK ENGINE STOP AND START ECU (EACH ECU OR SENSOR POWER SOURCE CIRCUIT)
    1. Disconnect the connector from the corresponding system ECU/sensor.
    2. Measure the voltage according to the value(s) in the table below.

      HINT:

      Measure the voltage at the corresponding terminals.

      Standard Voltage

      Tester Connection Condition Specified Condition
      J4-7 (+B) - Body ground Always 10.5 to 16 V
      K3-6 (+B) - Body ground Always 10.5 to 16 V
      5 (DOME CUT NO. 2 relay) - Body ground Always 10.5 to 16 V
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.

      HINT:

      Measure the voltage at the corresponding terminals.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      B31-45 (IGR) - Body ground Ignition switch ON 10.5 to 16 V
      C35-4 (IG) - Body ground Ignition switch ON 10.5 to 16 V
      D11-10 (IG) - Body ground Ignition switch ON 10.5 to 16 V
      J4-1 (IG) - Body ground Ignition switch ON 10.5 to 16 V
      B32-1 (IG)*1 - Body ground Ignition switch ON 10.5 to 16 V
      D16-6 (IG+) - Body ground Ignition switch ON 10.5 to 16 V
      D110-9 (IG) - Body ground Ignition switch ON 10.5 to 16 V

      *1: w/ Parking Support Brake System

    5. Turn the light control switch to the tail or head position.
    6. Measure the voltage according to the value(s) in the table below.

      HINT:

      Measure the voltage at the corresponding terminals.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      D110-10 (ILL+) - Body ground Light control switch in tail or head position 10.5 to 16 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    CHECK POWER SOURCE CIRCUIT (POWER SOURCE CIRCUIT OF RELATED SYSTEM)

    Result:

    NG

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [09/2023 - ]

  5. CHECK AUDIO AND VISUAL SYSTEM
    1. Turn the ignition switch off and wait for 1 minute.
    2. Turn the ignition switch to ON.
    3. Lower the audio volume.
    4. Check if the audio and visual system operates normally.

      OK

      Audio and visual system operates normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END

    Result:

    NG

    See step  6

  6. CHECK HARNESS AND CONNECTOR (EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) - STEREO COMPONENT AMPLIFIER ASSEMBLY)
    1. Disconnect the external backup boost converter (eco run vehicle converter assembly) connector.
    2. Disconnect the stereo component amplifier assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B6-5 (BO1), J17-1 (+B) or J17-16 (+B2) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    GO TO AUDIO AND VISUAL SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2023 - 12/2023]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  7. CHECK HARNESS AND CONNECTOR (BIN TERMINAL POWER SOURCE CIRCUIT)
    1. Disconnect the external backup boost converter (eco run vehicle converter assembly) connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B6-11 (BIN) - Body ground Always 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) - BATTERY)

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (ACC TERMINAL POWER SOURCE CIRCUIT)
    1. Disconnect the external backup boost converter (eco run vehicle converter assembly) connector.
    2. Turn the ignition switch to ACC.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B6-3 (ACC) - Body ground Ignition switch ACC 9.5 to 14 V
    4. Turn the ignition switch off.
    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B6-3 (ACC) - Body ground Ignition switch off 0 to 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) - BODY GROUND)
    1. Disconnect the external backup boost converter (eco run vehicle converter assembly) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B6-6 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK HARNESS AND CONNECTOR (EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) - STEREO COMPONENT AMPLIFIER ASSEMBLY)
    1. Disconnect the external backup boost converter (eco run vehicle converter assembly) connector.
    2. Disconnect the stereo component amplifier assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B6-5 (BO1) - J17-1 (+B) Always Below 1 Ω
      B6-5 (BO1) - J17-16 (+B2) Always Below 1 Ω
      B6-5 (BO1)or J17-1 (+B) or J17-16 (+B2) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) (OUTPUT VOLTAGE FOR EACH SYSTEM)
    1. Disconnect the stereo component amplifier assembly connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      J17-1 (+B) - Body ground Always 10.5 to 16 V
      J17-16 (+B2) - Body ground Always 10.5 to 16 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    GO TO AUDIO AND VISUAL SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2023 - 12/2023]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2023 - ]

    Result:

    NG

    REPLACE EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY). Refer to  REMOVAL [09/2023 - ]

  12. CHECK HARNESS AND CONNECTOR (EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) - POWER DISTRIBUTION BOX ASSEMBLY)
    1. Disconnect the external backup boost converter (eco run vehicle converter assembly) connector.
    2. Disconnect the power distribution box assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B6-3 (ACC) - J48-11 Always Below 1 Ω
      B6-3 (ACC) or J48-11 - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE POWER DISTRIBUTION BOX ASSEMBLY. Refer to  PROCEDURE - Step 5

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  13. CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - BBC NO. 1, BBC NO. 2 FUSES)
    1. Disconnect the engine stop and start ECU connector.
    2. Remove the BBC NO. 1 and BBC NO. 2 fuses from the No. 1 engine room relay block and No. 1 junction block assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B24-1 (BIN2) - BBC NO. 2 fuse terminal 2 Always Below 1 Ω
      B24-3 (BIN1) - BBC NO. 1 fuse terminal 2 Always Below 1 Ω
      B24-1 (BIN2) - Body ground Always 10 kΩ or higher
      BBC NO. 2 fuse terminal 2 - Body ground Always 10 kΩ or higher
      B24-3 (BIN1) - Body ground Always 10 kΩ or higher
      BBC NO. 1 fuse terminal 2 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  14

  14. CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - EACH ECU OR SENSOR)
    1. Disconnect the engine stop and start ECU connector.
    2. Disconnect the NO. 2 air conditioning control assembly connector.
    3. Disconnect the clearance warning ECU assembly connector. (w/ Parking Support Brake System)
    4. Disconnect the room light control relay connector.
    5. Disconnect the DOME CUT NO. 2 relay connector.
    6. Disconnect the tire pressure warning ECU and receiver connector.
    7. Disconnect the inner rear view mirror assembly connector.
    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D26-3 (IG41) - B32-1 (IG) Always Below 1 Ω
      D26-3 (IG41) - D110-9 (IG) Always Below 1 Ω
      D26-3 (IG41) - J4-1 (IG) Always Below 1 Ω
      D26-2 (B41) - J4-7 (+B) Always Below 1 Ω
      D26-11 (B43) - 5 (DOME CUT NO. 2 relay) Always Below 1 Ω
      D26-11 (B43) - K3-6 (+B) Always Below 1 Ω
      D26-11 (B43) - D54-1 (+B) Always Below 1 Ω
      D26-3 (IG41) - Body ground Always 10 kΩ or higher
      D26-2 (B41) - Body ground Always 10 kΩ or higher
      D26-11 (B43) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  15

  15. CHECK ENGINE STOP AND START ECU
    1. Disconnect the engine stop and start ECU connectors.

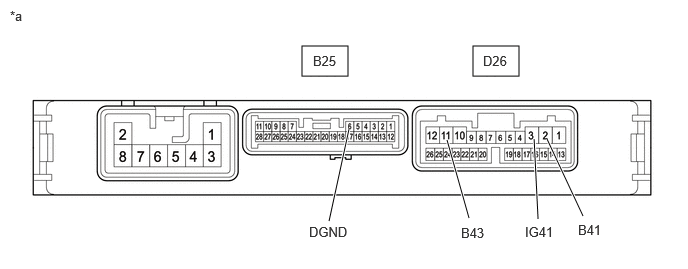

      GTY1239236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Engine Stop and Start ECU)      		 - -
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D26-3 (IG41) - B25-6 (DGND) Always 10 kΩ or higher
      D26-2 (B41) - B25-6 (DGND) Always 10 kΩ or higher
      D26-11 (B43) - B25-6 (DGND) Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [09/2023 - ]

    Result:

    OK

    See step  16

  16. CHECK VEHICLE CONDITION (B41, B43 AND IG41 CIRCUIT)
    1. Check that additional devices installed to the vehicle (aftermarket audio system, etc.) are not connected to the B41, B43 or IG41 terminal circuit of the engine stop and start ECU.

      Result

      Result Proceed to
      Load from an additional device installed to the vehicle (aftermarket audio system, etc.) is not applied. A
      Load from an additional device installed to the vehicle (aftermarket audio system, etc.) is applied. B

    Result:

    A

    TROUBLESHOOT ECUS CONNECTED TO TERMINALS B41, B43 AND IG41

    Result:

    B

    END (REMOVE ADDITIONAL DEVICE)

scientia non olet · About LEMON Manuals
