Starter Inrush Current Reduction Relay Circuit [09/2023 - ]: Procedure

1. Connect the positive (+) lead of an oscilloscope to the positive (+) auxiliary battery terminal and the negative (-) lead to the negative (-) auxiliary battery terminal.

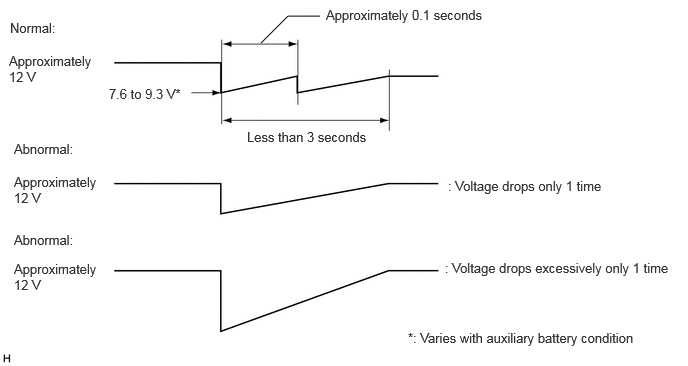

2. While cranking the engine, count the number of times the waveform drops.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard

   Waveform drops 2 times

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [09/2023 - ]

Result:

NG

REPLACE STARTER. Refer to  REMOVAL [09/2023 - ]
