Removal [11/2021 - ]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 13

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 15

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 15 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 15 [03/2024 - ]

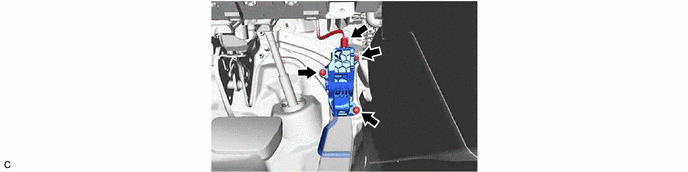

  4. REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal (with sensor) rod assembly.
    • If the accelerator pedal (with sensor) rod assembly has been struck or dropped, replace it.
    • Do not disassemble the accelerator pedal (with sensor) rod assembly.
    • The accelerator pedal (with sensor) rod assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal (with sensor) rod assembly. If applied, the accelerator pedal (with sensor) rod assembly must be replaced.
    1. GTY1077314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

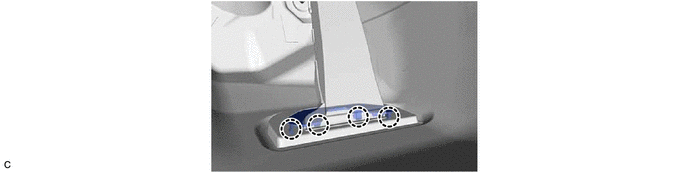

  5. REMOVE ACCELERATOR PEDAL PAD
    1. GTY1077315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

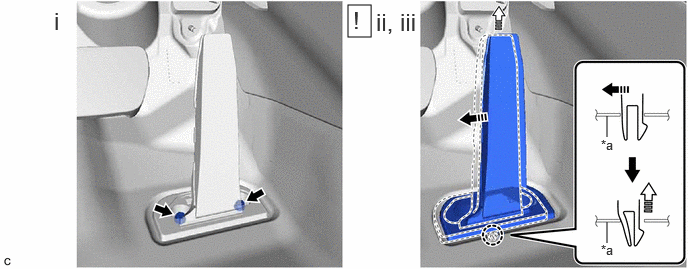

  6. REMOVE ACCELERATOR PEDAL
    1. GTY1076932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vehicle Body - -
      Remove in this Direction (1) Remove in this Direction (2)
      1. Remove the 2 bolts.
      2. Push the accelerator pedal in the direction indicated by the arrow (1) shown in the illustration to disengage the claw.
      3. Pull the accelerator pedal in the direction indicated by the arrow (2) shown in the illustration to remove it.
