INSTALL CAMSHAFT TIMING VALVE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

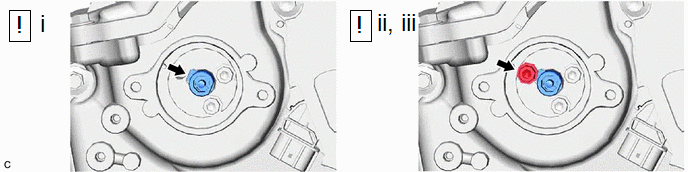

Temporarily install the camshaft timing valve assembly to the camshaft timing exhaust gear assembly.
NOTE:
- If the camshaft timing valve assembly has been struck or dropped, replace it.
- Make sure to fit the protrusion of the camshaft timing valve assembly into the cutout of the camshaft timing exhaust gear assembly.
Using a 5 mm hexagon socket wrench, install the camshaft timing valve assembly with the bolt.
Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)
Pull the camshaft timing valve assembly to confirm that is installed securely.

INSTALL CAM TIMING OIL CONTROL SOLENOID O-RING

See step 1
INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

See step 2
CONNECT NO. 2 EARTH WIRE
See step 3
INSTALL EARTH BOLT CAP
CONNECT LIQUID TUBE SUB-ASSEMBLY A (for PHEV Model)

Refer to PROCEDURE - Step 9
INSTALL AIR CONDITIONING HOSE AND ACCESSORY (for PHEV Model)

Refer to PROCEDURE - Step 7
CONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE (for PHEV Model)

Refer to PROCEDURE - Step 5
CONNECT DISCHARGE HOSE SUB-ASSEMBLY (for PHEV Model)
See step 5
CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT (for PHEV Model)
Refer to PROCEDURE - Step 3
WARM UP COMPRESSOR (for PHEV Model)
Refer to PROCEDURE - Step 4
INSPECT FOR REFRIGERANT LEAK (for PHEV Model)
Refer to PROCEDURE - Step 6
INSPECT FOR ENGINE OIL LEAK
Refer to PROCEDURE - Step 6

INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
