Removal [08/2023 - ]: Procedure
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
- for HEV Model:
Refer to PROCEDURE - Step 19 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 19 [10/2024 - ]
- for PHEV Model:
Refer to PROCEDURE - Step 19
- for HEV Model:

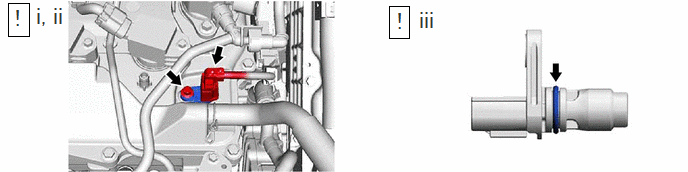

- REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
- Disconnect the camshaft position sensor connector.
- Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.NOTE:
If the camshaft position sensor has been struck or dropped, replace it.
- Perform this procedure only when reusing the camshaft position sensor.
1. Remove the O-ring from the camshaft position sensor.
NOTE:- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
- If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
- REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
- Disconnect the camshaft position sensor connector.
- Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.NOTE:
If the camshaft position sensor has been struck or dropped, replace it.
- Perform this procedure only when reusing the camshaft position sensor.
1. Remove the O-ring from the camshaft position sensor.
NOTE:- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
- If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
