Removal [08/2023 - ]: Procedure

  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to REPLACEMENT [08/2023 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

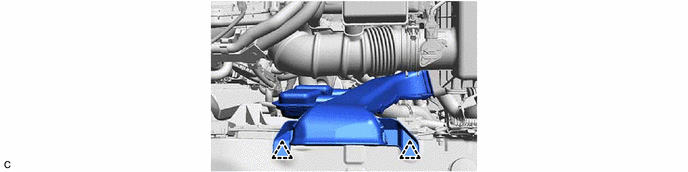

  4. REMOVE INLET AIR CLEANER ASSEMBLY
    1. GTY1133159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

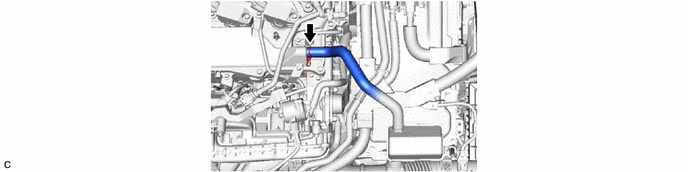

  5. DISCONNECT NO. 2 VENTILATION HOSE
    1. GTY1076714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

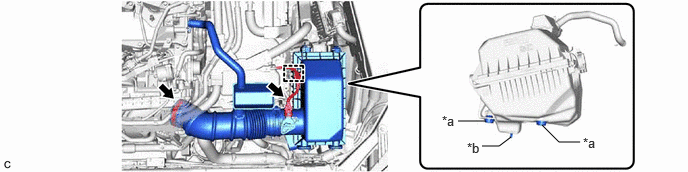

  6. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. GTY1077109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet *b Pin

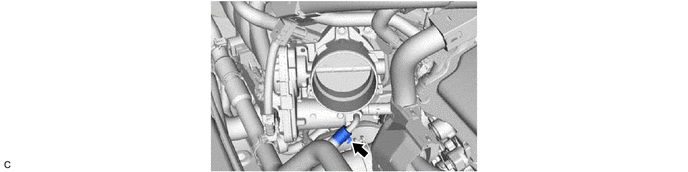

  7. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1076642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. GTY1076892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the throttle body with motor assembly connector.
      2. Using an 8 mm socket wrench, remove the 3 bolts and separate the throttle body with motor assembly from the intake manifold.

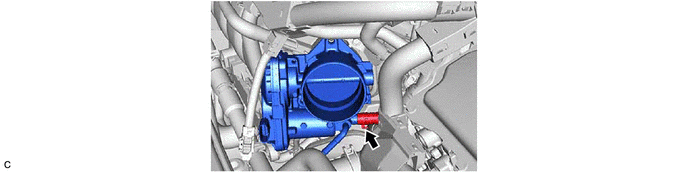

  9. DISCONNECT NO. 6 WATER BY-PASS HOSE
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.
    1. GTY1077473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

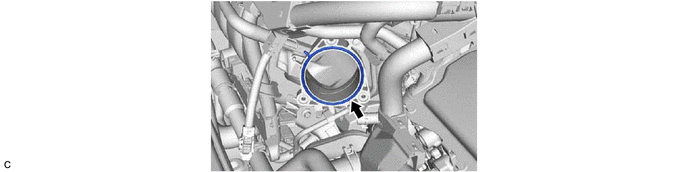

  10. REMOVE THROTTLE BODY GASKET
    1. GTY1076672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
