Flow of Diagnosis

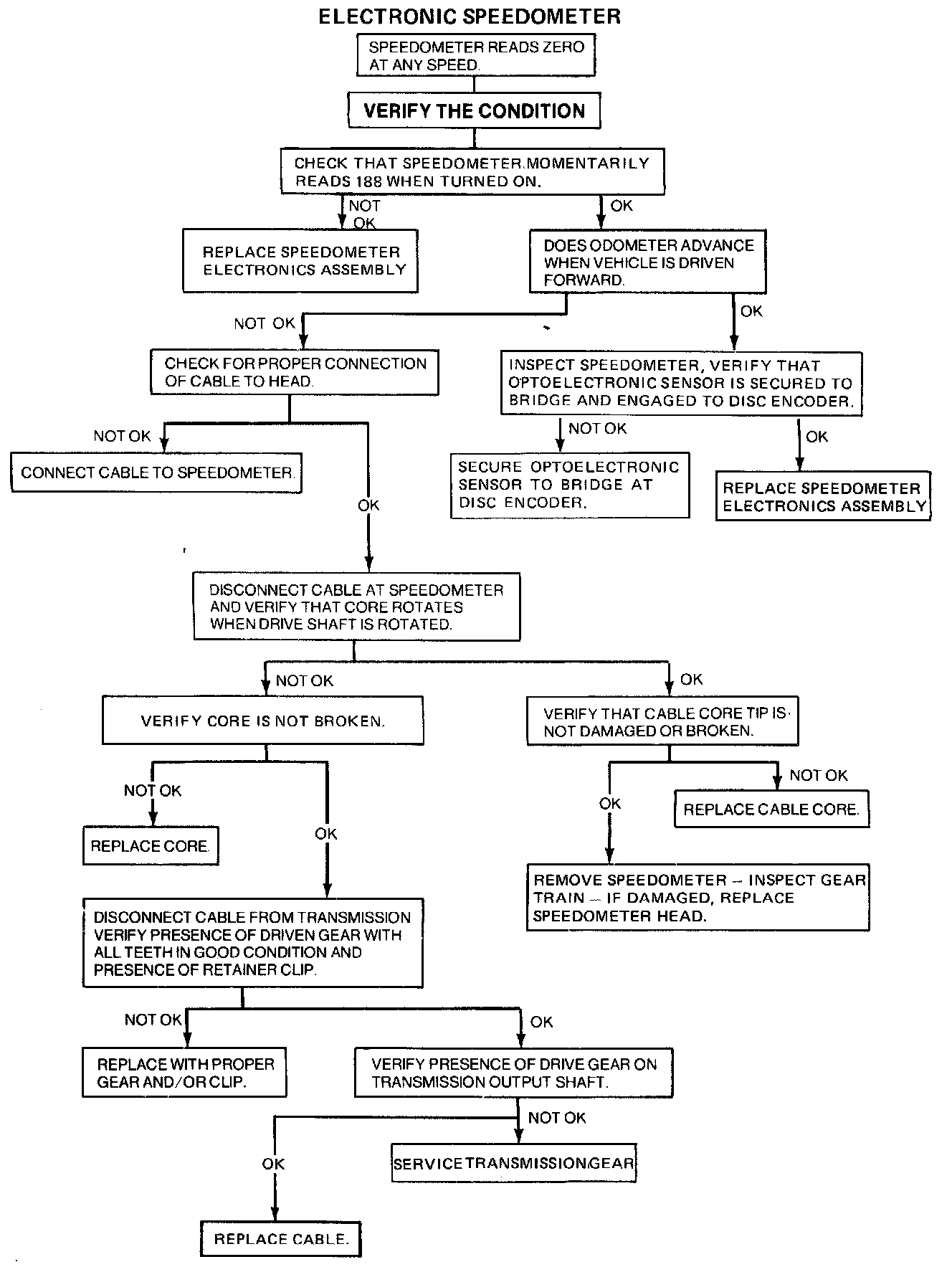

SPEEDOMETER READS ZERO AT ANY SPEED

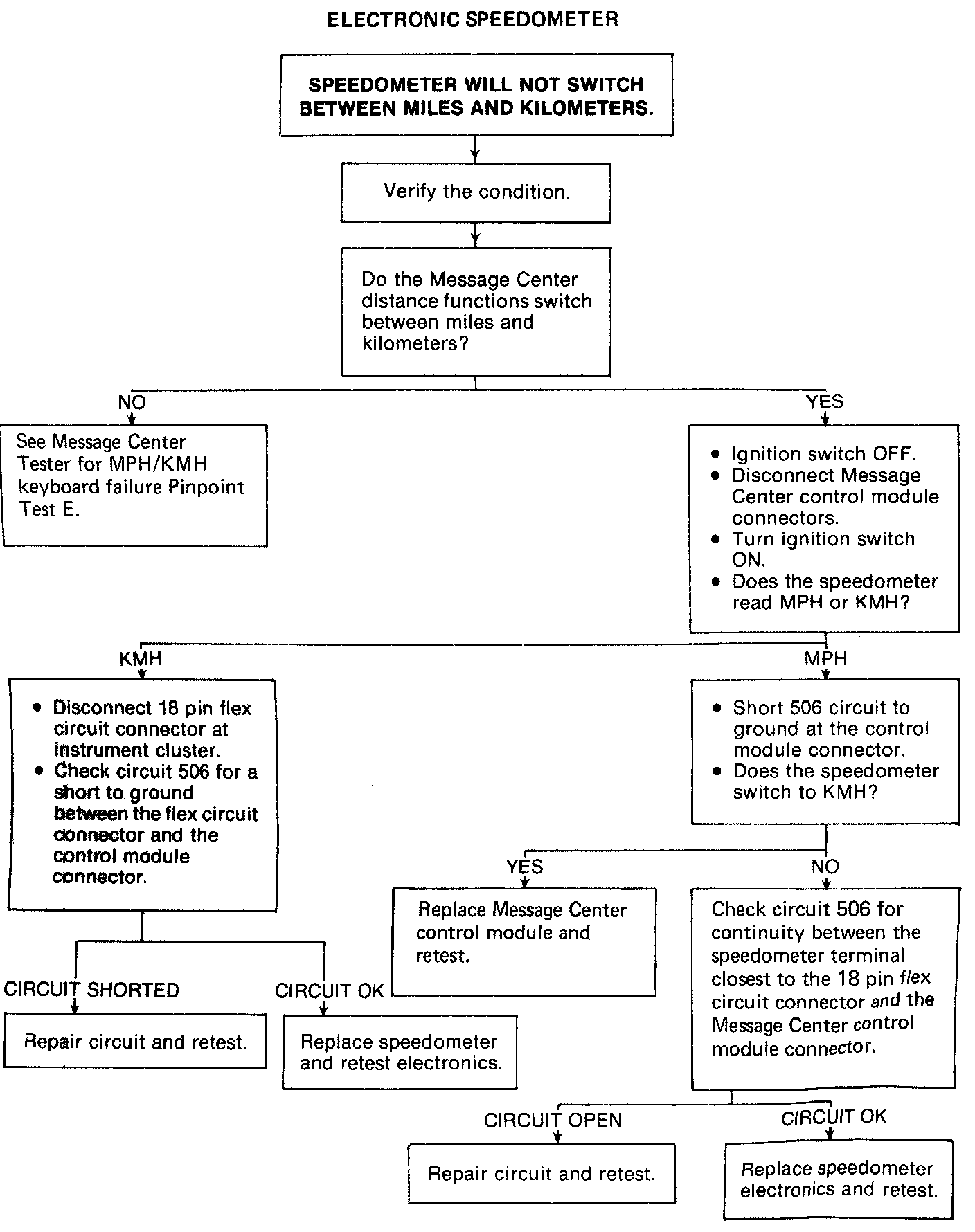

SPEEDOMETER WILL NOT SWITCH BETWEEN MILES AND KILOMETERS

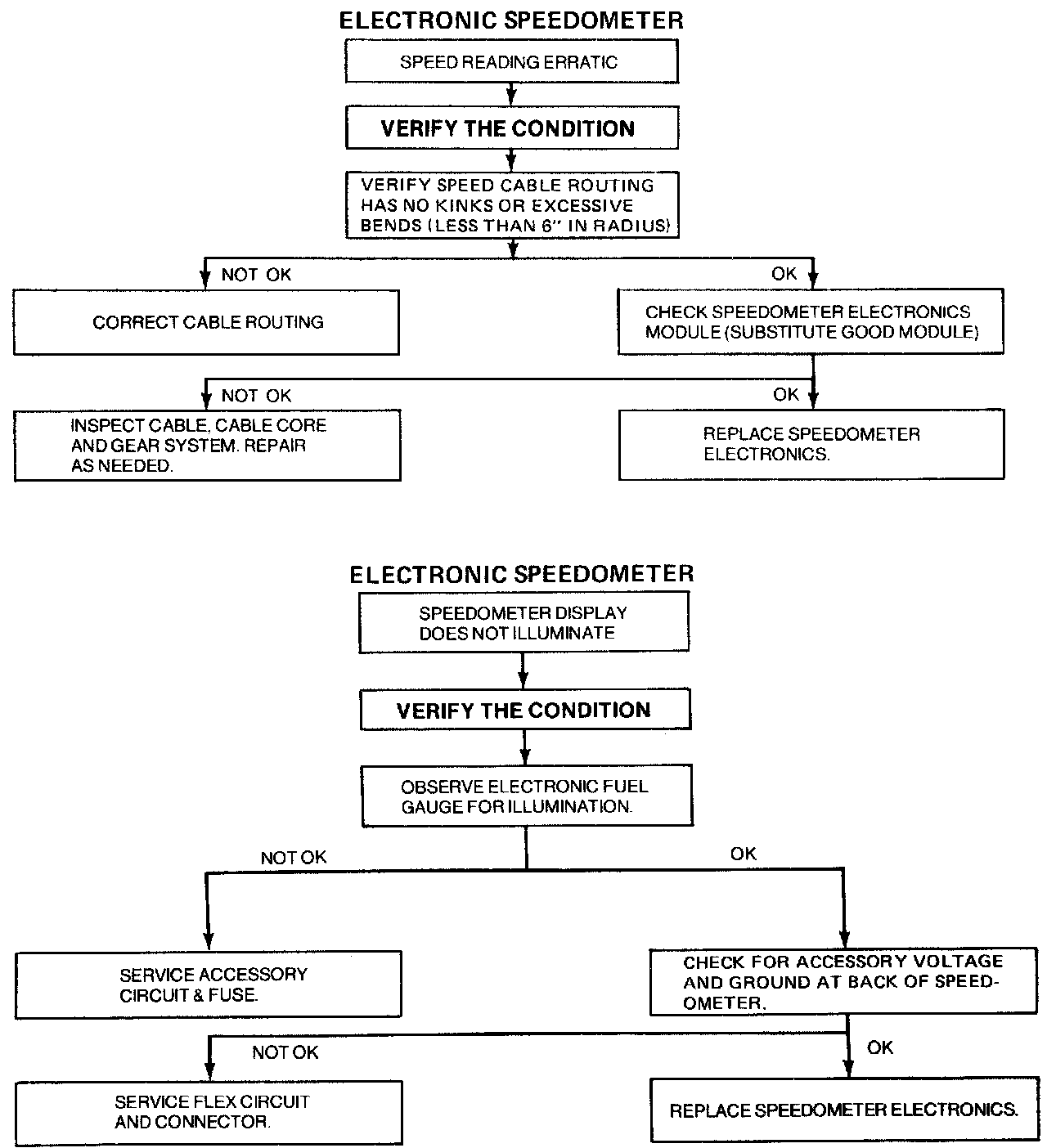

SPEED READING ERRATIC






SPEEDOMETER DISPLAY INTENSITY DOES NOT CHANGE
