Wiper Switch Continuity

Check wiper switch for continuity using WIPER SWITCH CONTINUITY TEST. Disconnect connector under steering column and test with self-powered test light or ohmmeter. An ohmmeter is required for intermittent wiper test. If switch does not show required continuity, or poor continuity exists in any position, replace switch.

NOTE: See wiper switch connector terminal identification in Fig. Fig 1 .

WIPER SWITCH CONTINUITY TEST

Position

Standard Wiper

Interval Wiper

OFF

C-D, F-L

F-L, P-G

LOW

B-C, G-L

R-L-G

HIGH

B-C, G-H

R-H-G

INTER

N/A

⁽¹⁾ L-G, G-R

WASH

B-W

⁽¹⁾	Resistance between G-R should be 420-13,000 ohms.

Fig 1: Wiper Switch Continuity Test Terminal Locations

Courtesy of FORD MOTOR CO.

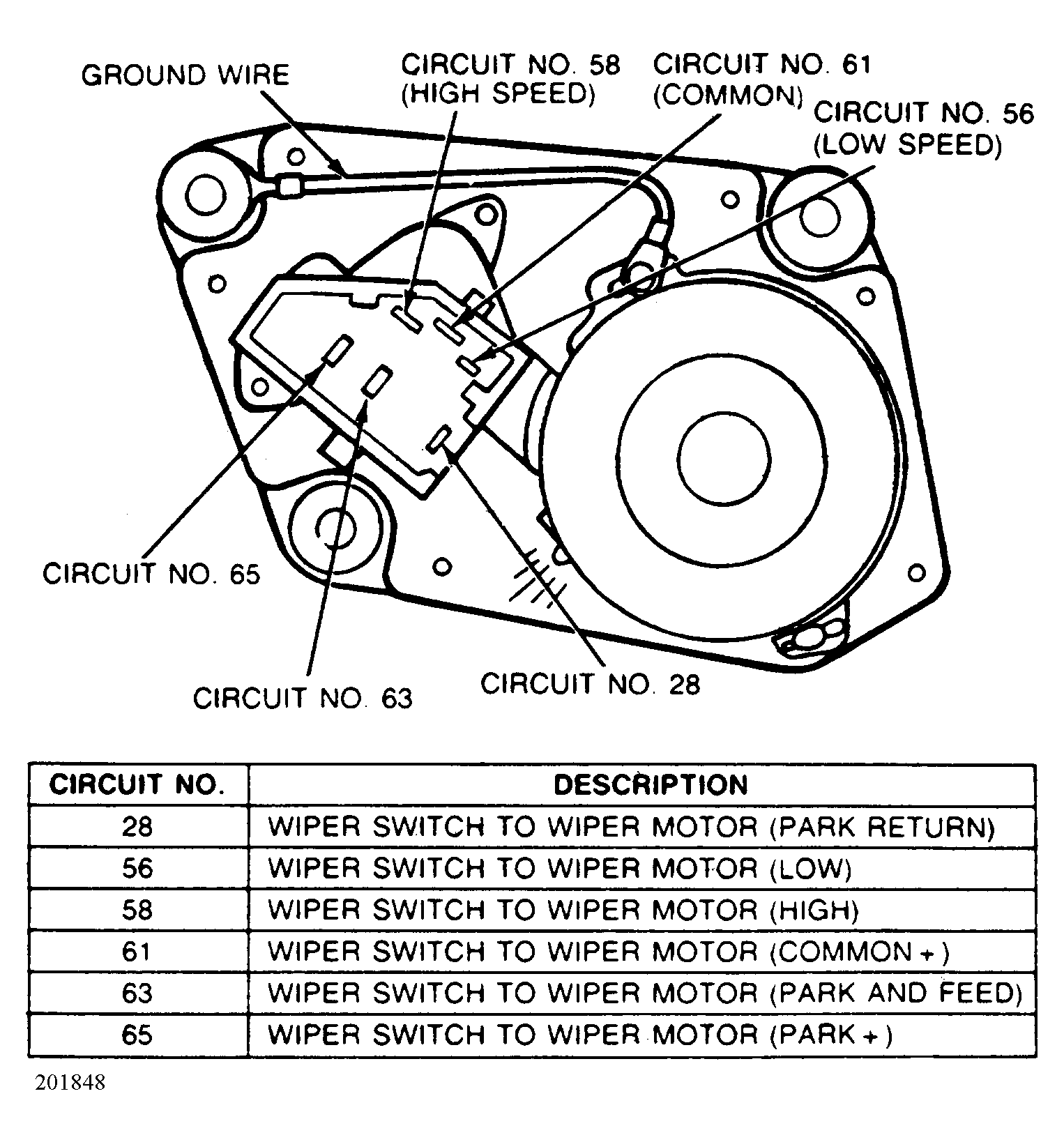

Fig 2: Wiper Motor Terminal Identification

Courtesy of FORD MOTOR CO.
