Wiring Diagrams

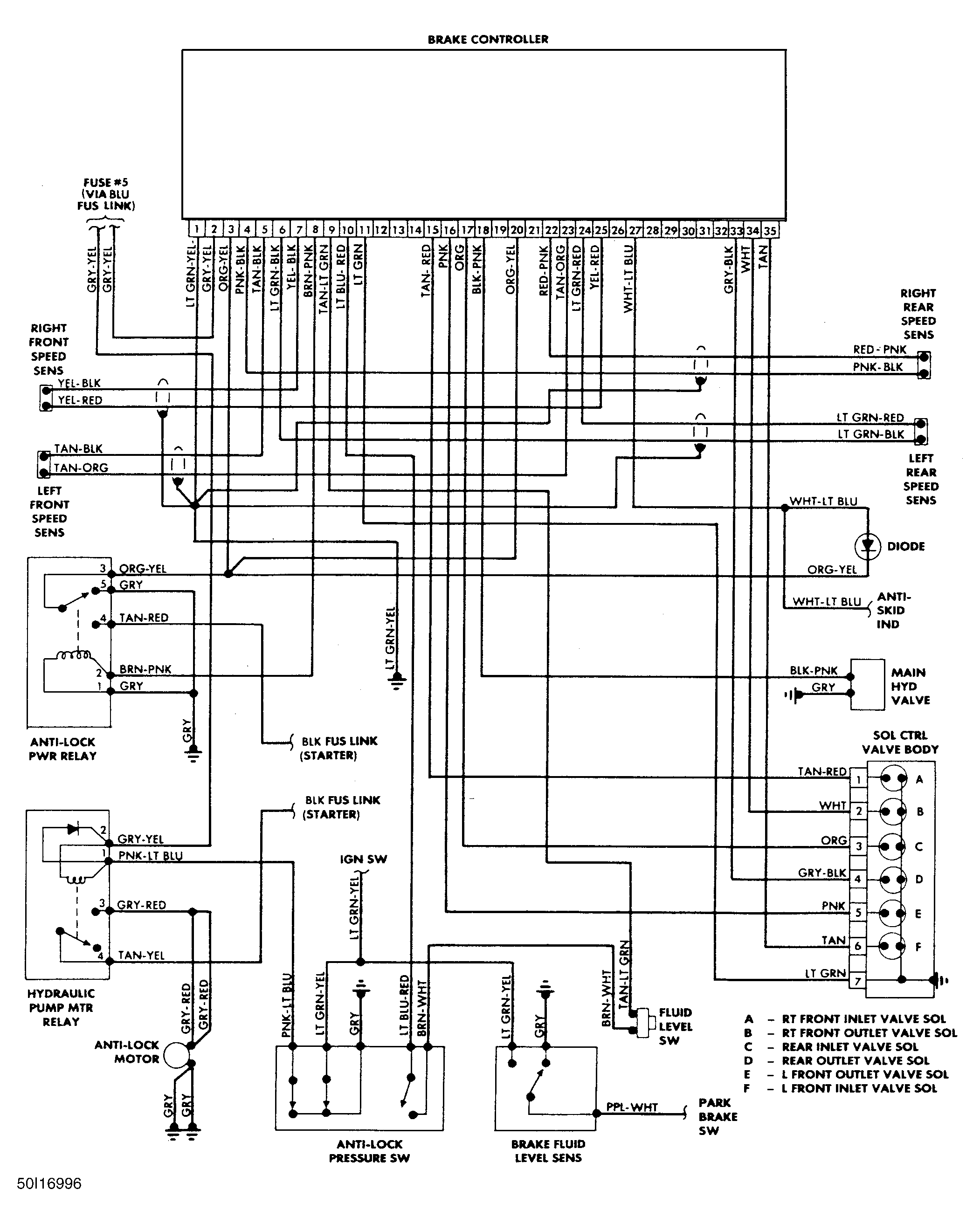

Fig 1: Continental/Mark VII Anti-Lock Brake System Wiring Diagram
G50I16996

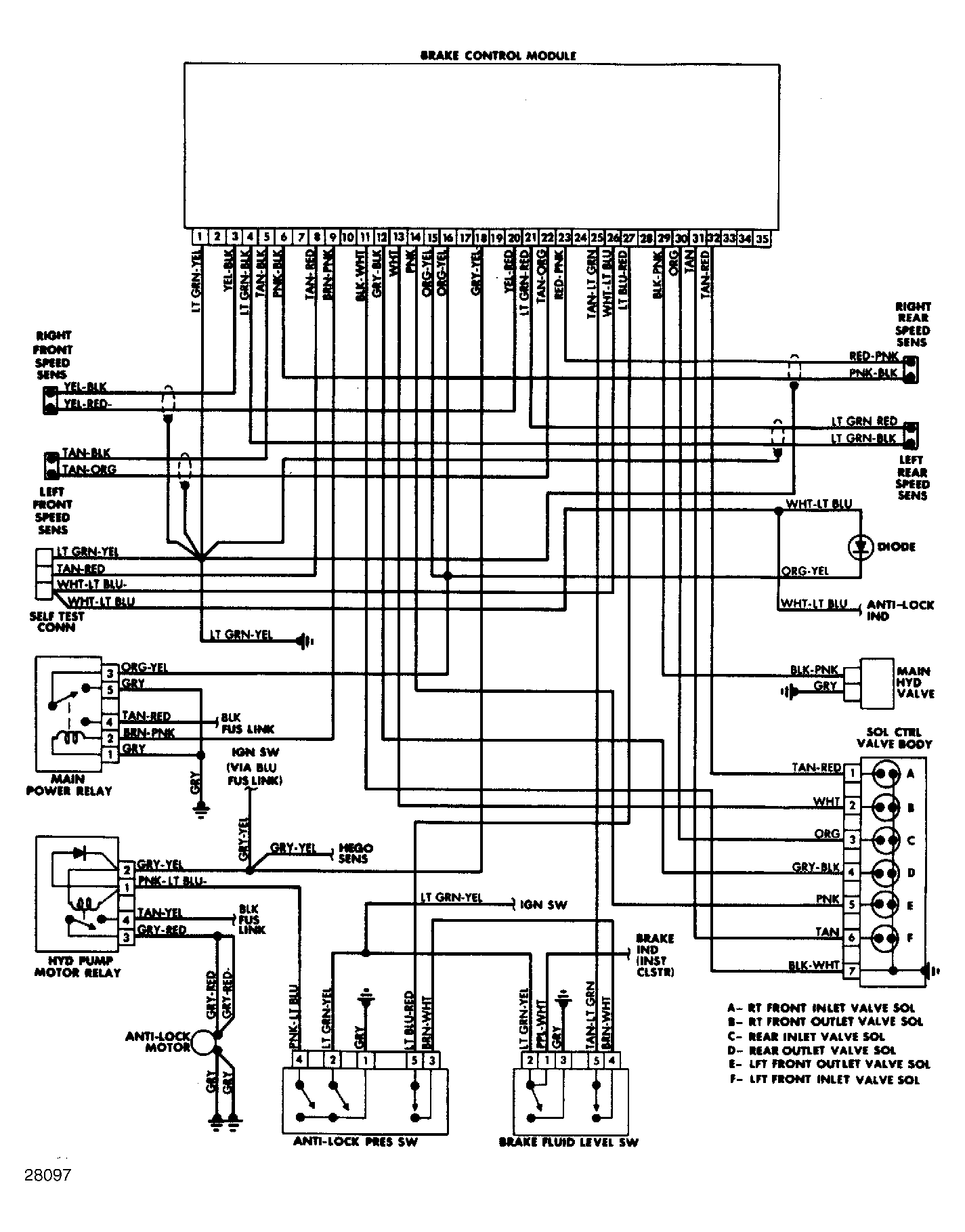

Fig 2: Thunderbird Anti-Lock Brake System Wiring Diagram
G28097
