Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| ABS Fluid Level Switch | In master cylinder reservoir. See Figure . |
| ABS Press Control/Warning Switch | On right side of master cylinder, below reservoir. See Figure . |
| A/C Coolant Temperature Switch | On heater hose, on right side of firewall. |

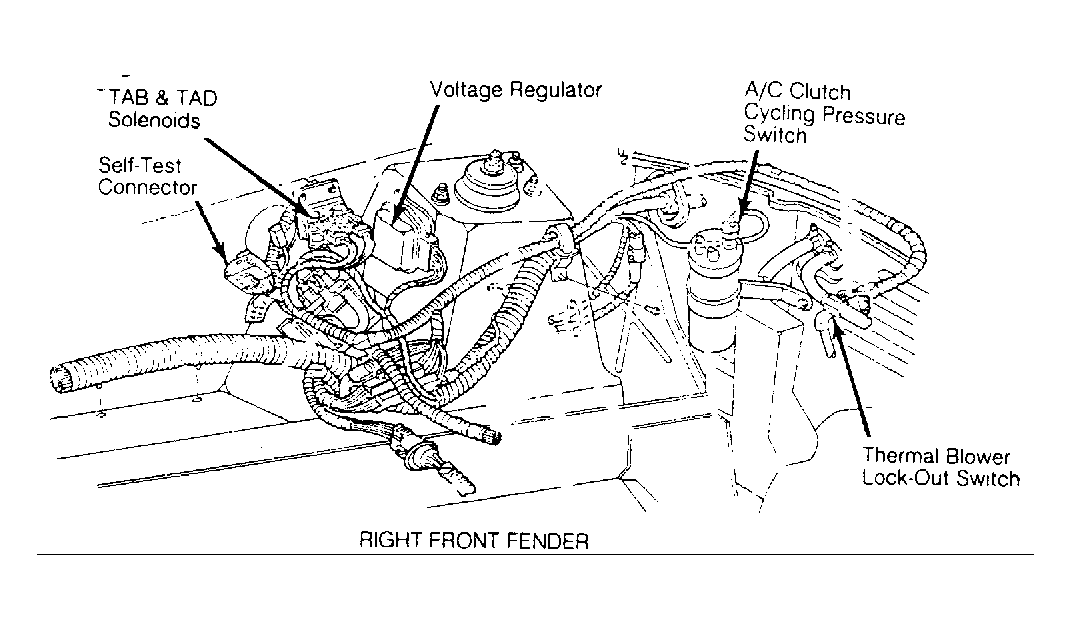

| A/C Clutch Cycling Pressure Switch | On top of receiver-drier. See Figure . |
| Air Suspension Switch | On left trunk hinge support. |
| Back-Up Light Switch | On left side of transmission. |
| Brake/Stop Light Switch | On top of brake pedal arm. |
| Door Open Warning Switch | In each door, at door lock. |
| Fuel Filler Door Release Switch | In floor console. |
| Fuel Pump Inertia Switch | On inboard side of left trunk hinge support. |
| Key Warning Switch | Part of ignition key switch. |
| Low Oil Level Switch | In oil pan. See Figure . |
| Neutral/Start Switch | On left side of transmission housing. |
| Oil Pressure Switch | On engine block, near oil filter. See Figure . |
| Parking Brake Switch | On parking brake lever. |
| Seat Belt Switch | Part of driver's seat belt. |
| Thermal Blower Lock-Out Switch | On right side of firewall, next to receiver-drier. See Figure . |
| Trunk Pull-Down Switch | Part of trunk release solenoid. |
| Trunk Release Switch | Inside glove box. |
| Washer Fluid Level Switch | On bottom of washer fluid reservoir. |
