Control Assembly: Service and Repair

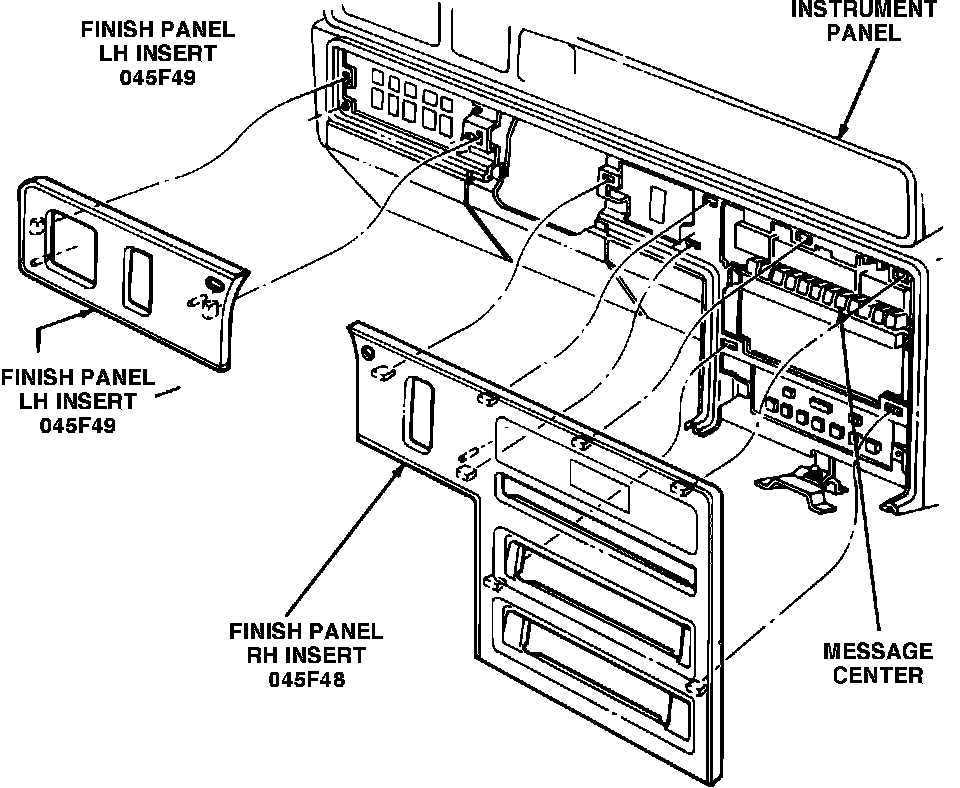

Fig. 12 Instrument panel removal:

1. Disconnect battery ground cable.
2. Remove I/P center finish panel right hand insert, Fig. 12.
3. Remove four screws attaching control assembly to I/P.
4. Slide control assembly out of I/P and disconnect two electrical connectors by disengaging latches on bottom of control.
5. Remove control assembly from vehicle.
6. Reverse procedure to install.
