Coolant Temperature Sensor/Switch (For Computer): Locations

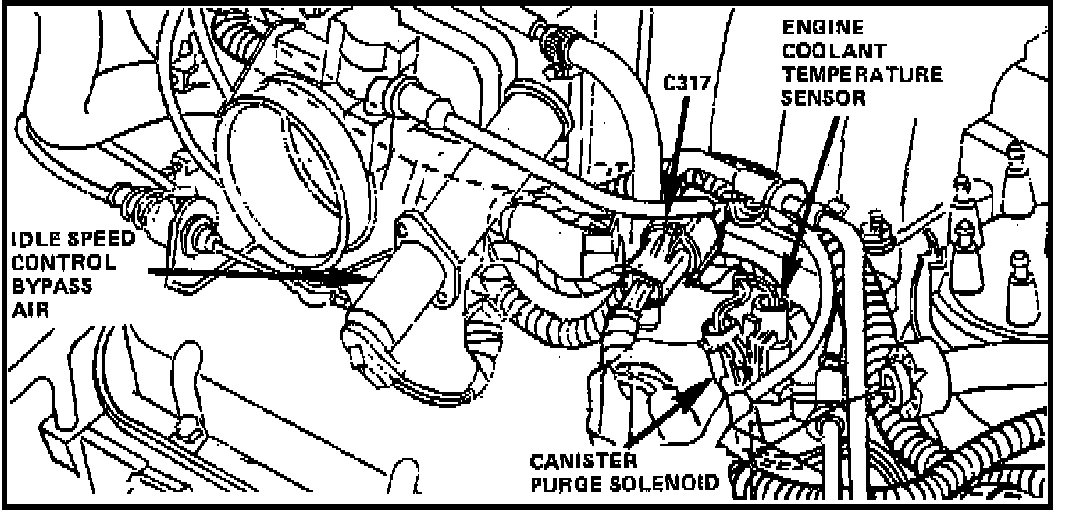

RH Rear Of Engine.:




LH Side Of Engine

Applicable to: Mark VII
