Component Tests: Switch

To test power seat switch, see illustration. See Fig 1 .

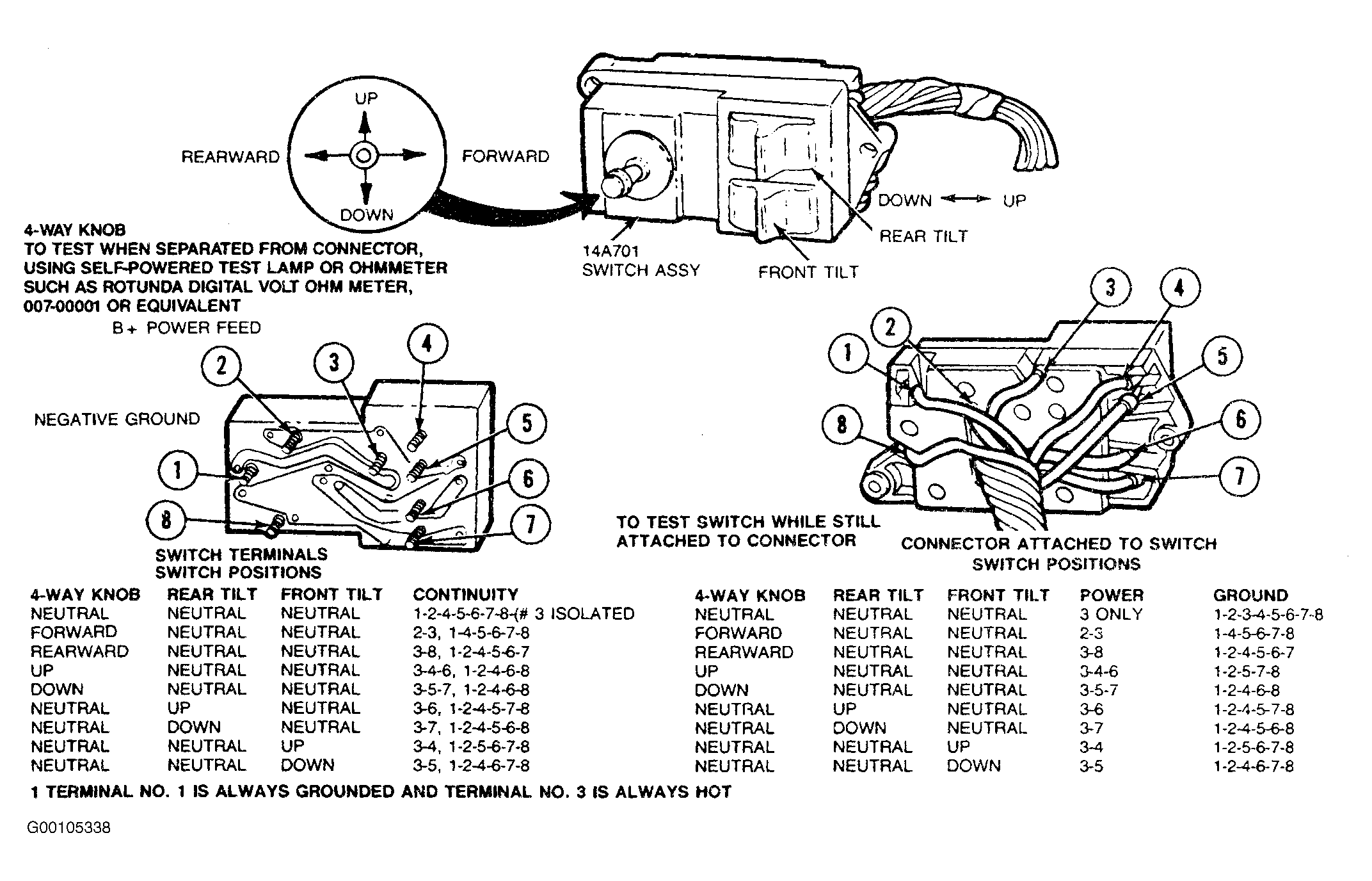

Fig 1: Power Seat Switch Test
G00105338Courtesy of FORD MOTOR CO.
