Instrument Panel View

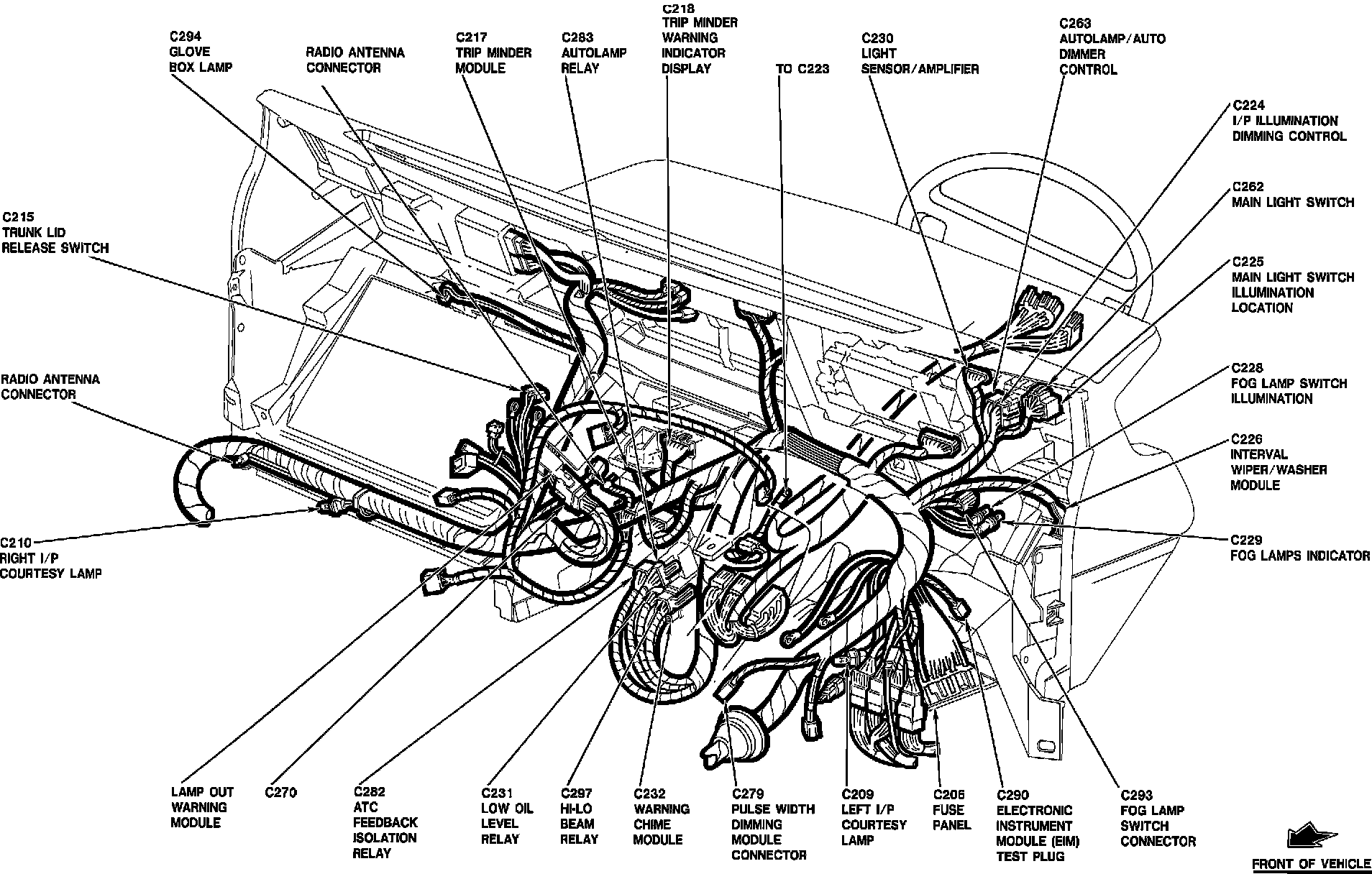

Component Location:

AUTOLAMP/AUTO DIMMER CONTROL
AUTOLAMP RELAY
COURTESY LAMP
ELECTRONIC INSTRUMENT MODULE (EIM) TEST PLUG
FOG LAMP INDICATOR
FOG LAMP SWITCH
FOG LAMP SWITCH ILLUMINATION
FUSE PANEL
GLOVE BOX LAMP
I/P ILLUMINATION DIMMING CONTROL
LIGHT SENSOR/AMPLIFIER
MAIN LIGHT SWITCH
MAIN LIGHT SWITCH ILLUMINATION
PULSE WIDTH DIMMING MODULE
RADIO ANTENNA CONNECTOR
TRIP MINDER MODULE
TRIP MINDER WARNING INDICATOR DISPLAY
TRUNK LID RELEASE SWITCH

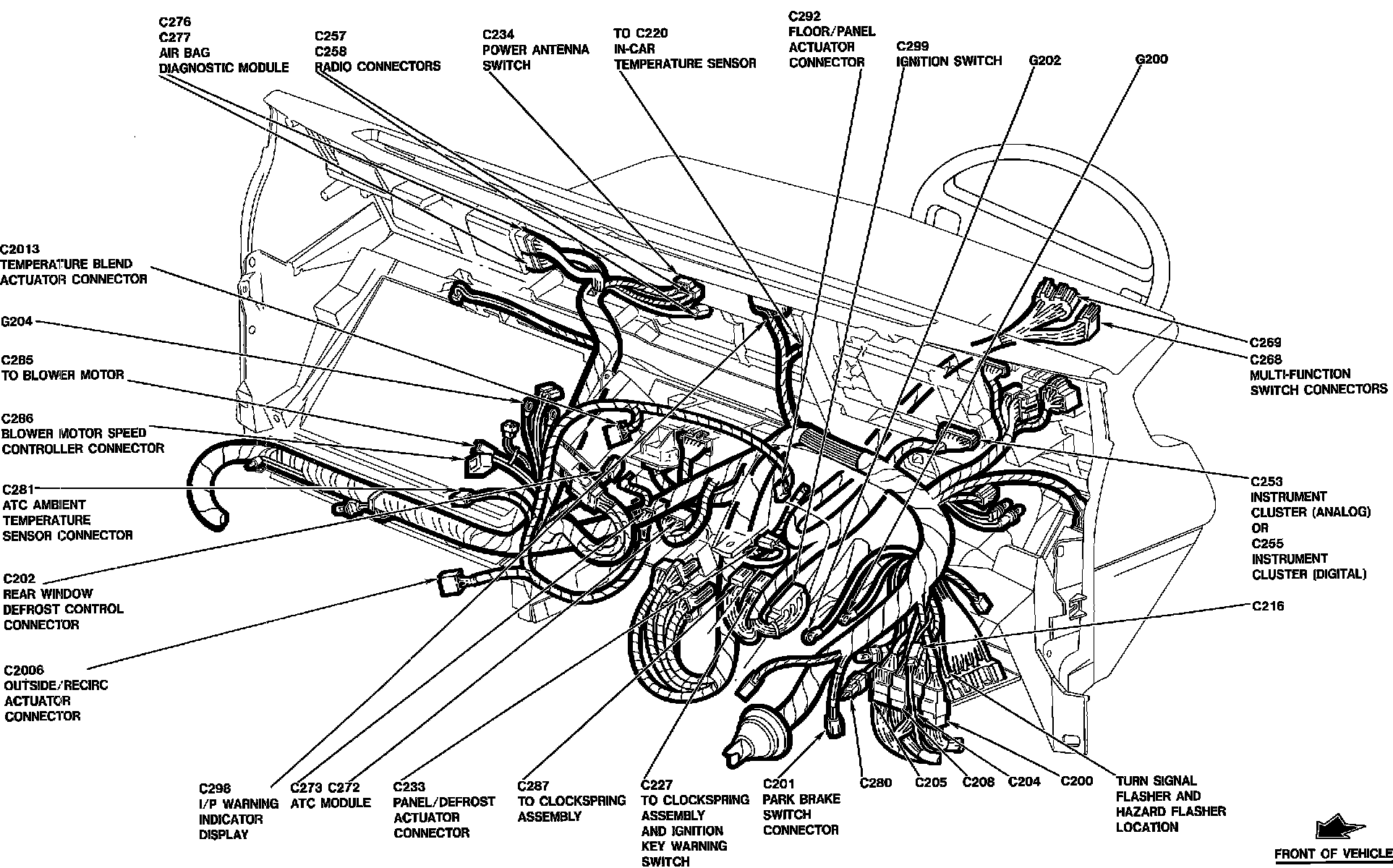

Component Location:

AIR BAG DIAGNOSTIC MODULE
ATC AMBIENT TEMPERATURE SENSOR
ATC MODULE
BLOWER MOTOR
BLOWER MOTOR SPEED CONTROLLER
CLOCKSPRING ASSEMBLY
FLOOR/PANEL ACTUATOR
HAZARD FLASHER
IGNITION KEY WARNING SWITCH
IGNITION SWITCH
IN-CAR TEMPERATURE SENSOR
INSTRUMENT CLUSTER
MULTI-FUNCTION SWITCH
OUTSIDE/RECIRC ACTUATOR
PANEL/DEFROST ACTUATOR
PARK BRAKE SWITCH
POWER ANTENNA SWITCH
RADIO CONNECTORS
REAR WINDOW DEFROST CONTROL
TEMPERATURE BLEND ACTUATOR
TURN SIGNAL FLASHER
WARNING INDICATOR DISPLAY
