Terminal Identification
NOTE:
Tests require Breakout Box (014-00322) and ABS Adapter (T90P-50-ALA). See Figure
for WARNING LIGHT SYMPTOM SEQUENCE CHART. See Fig 1
-13
for pin locations and circuit identification.

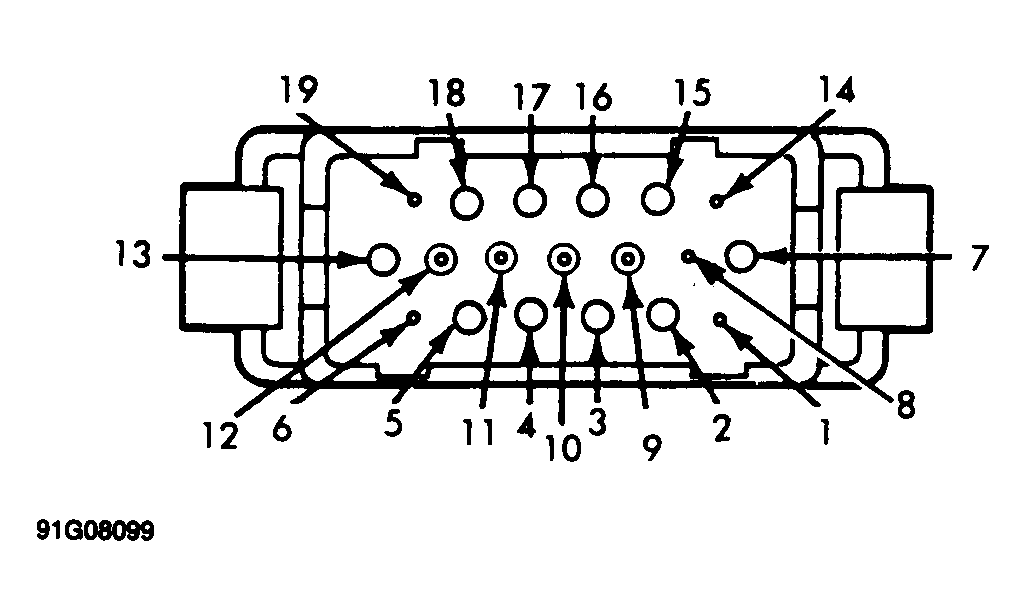

Fig 1: 19-Pin Valve Body Connector Terminal ID
Courtesy of FORD MOTOR CO.
Fig 2: Wheel Speed Sensor Connector ID
Courtesy of FORD MOTOR CO.
Fig 3: Fluid Level Sensor Connector (HCU Reservoir) ID
Courtesy of FORD MOTOR CO.
Fig 4: Pedal Travel Switch Connector ID
Courtesy of FORD MOTOR CO.
Fig 5: Pump Motor Connector Terminal ID
Courtesy of FORD MOTOR CO.
Fig 6: Pump Motor Relay Connector Terminals (Harness Side) ID
