Ignition Switch: Testing and Inspection

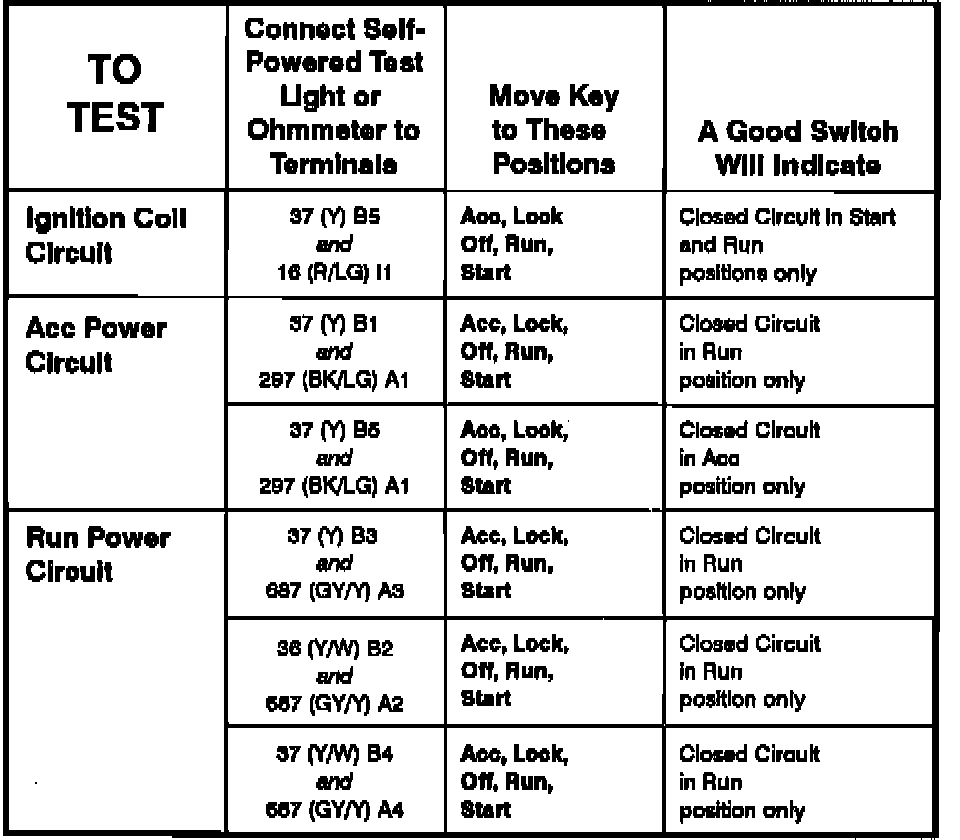

Component Testing Procedure:

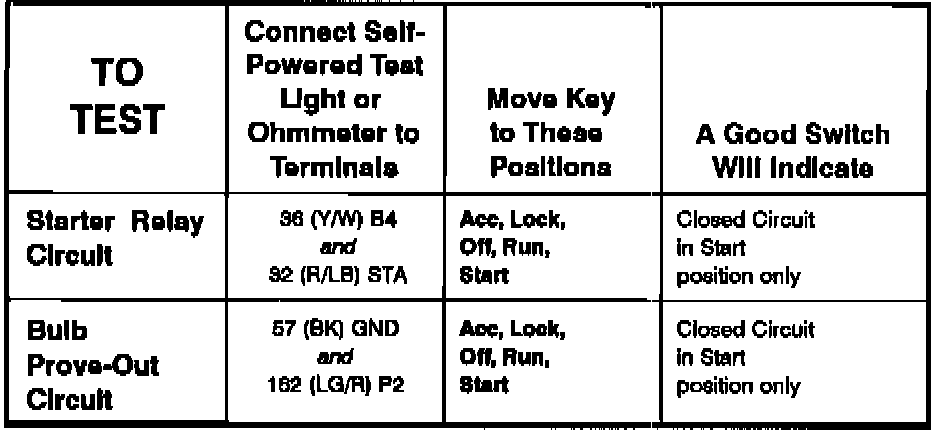

Component Testing Procedure:

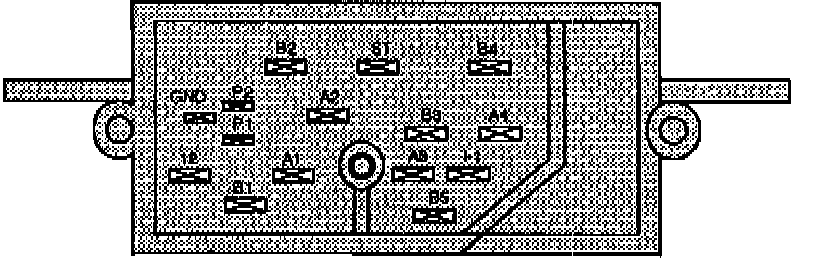

Terminal ID:

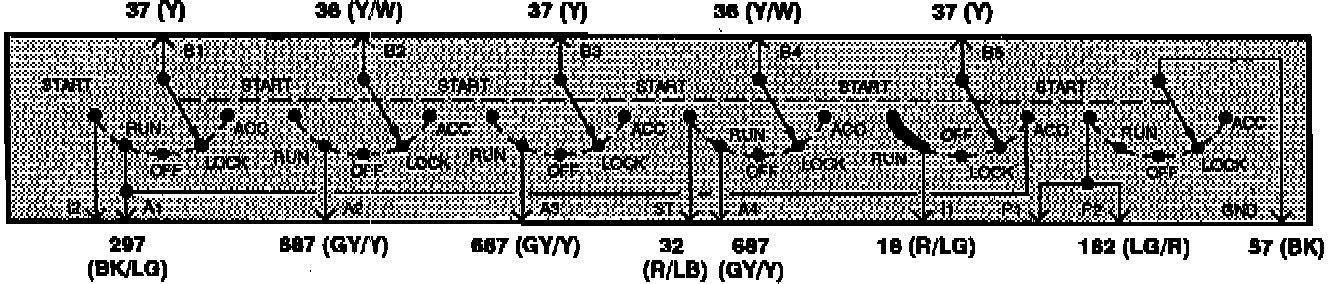

Schematic:
