Electronic Level Control (ELC) Module

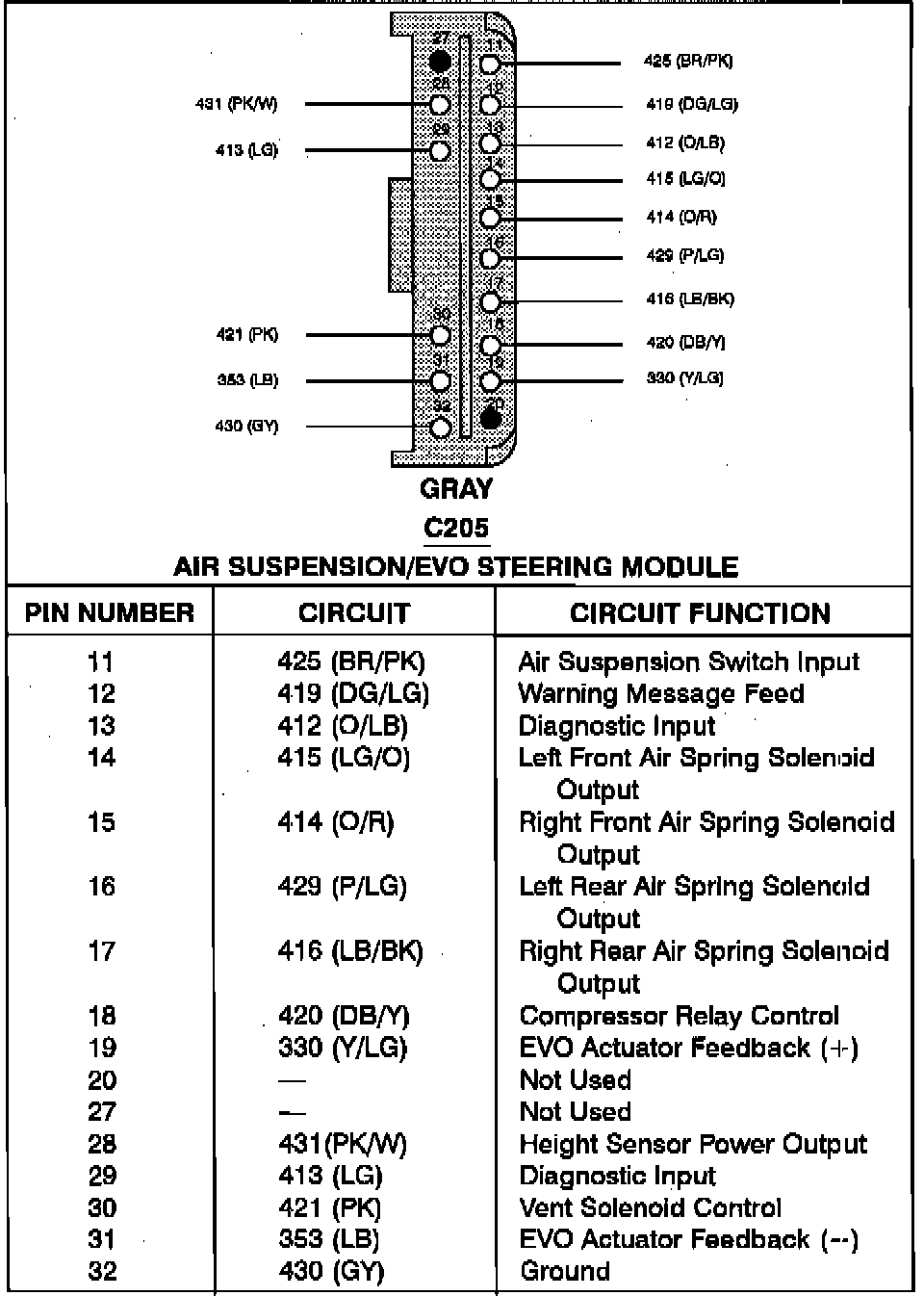

Air Suspension/EVO Steering Module:



Air Suspension/EVO Steering Module:
