Fuses & Circuit Breakers: Notes

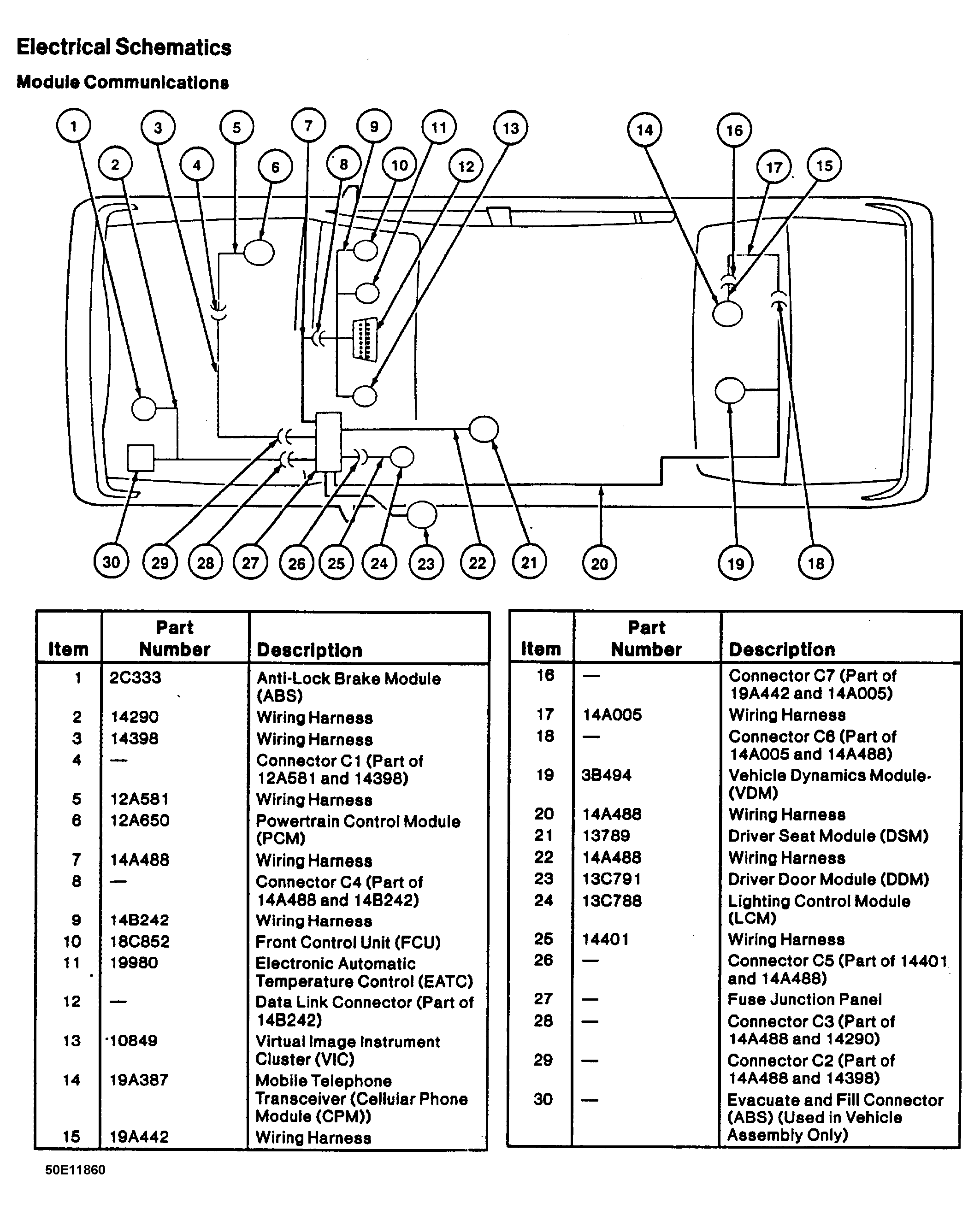

Fig 1: Module Communication Network

G50E11860

Courtesy of FORD MOTOR CO.
