Home >> Lincoln >> 1995 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Air Bag Control Module

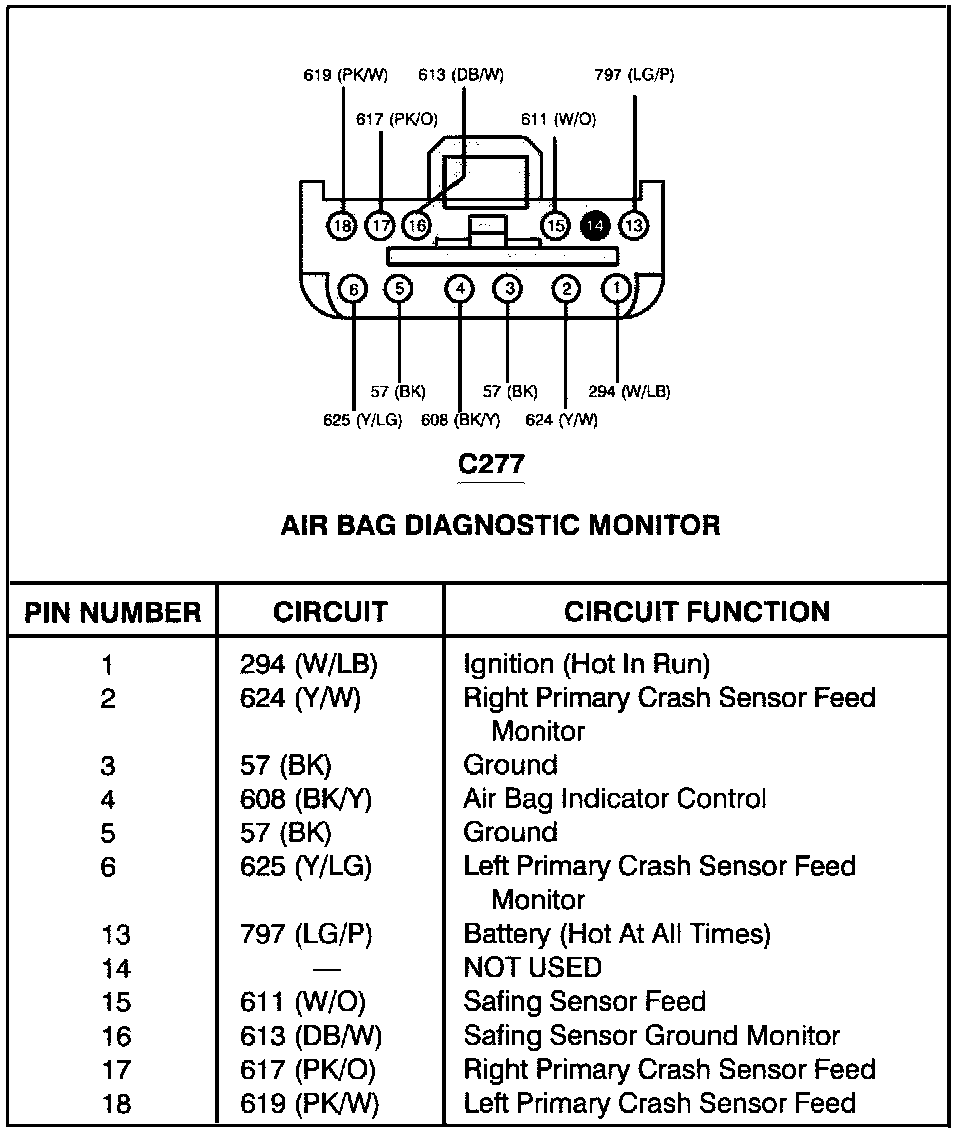

Air Bag Diagnostic Monitor (C277):

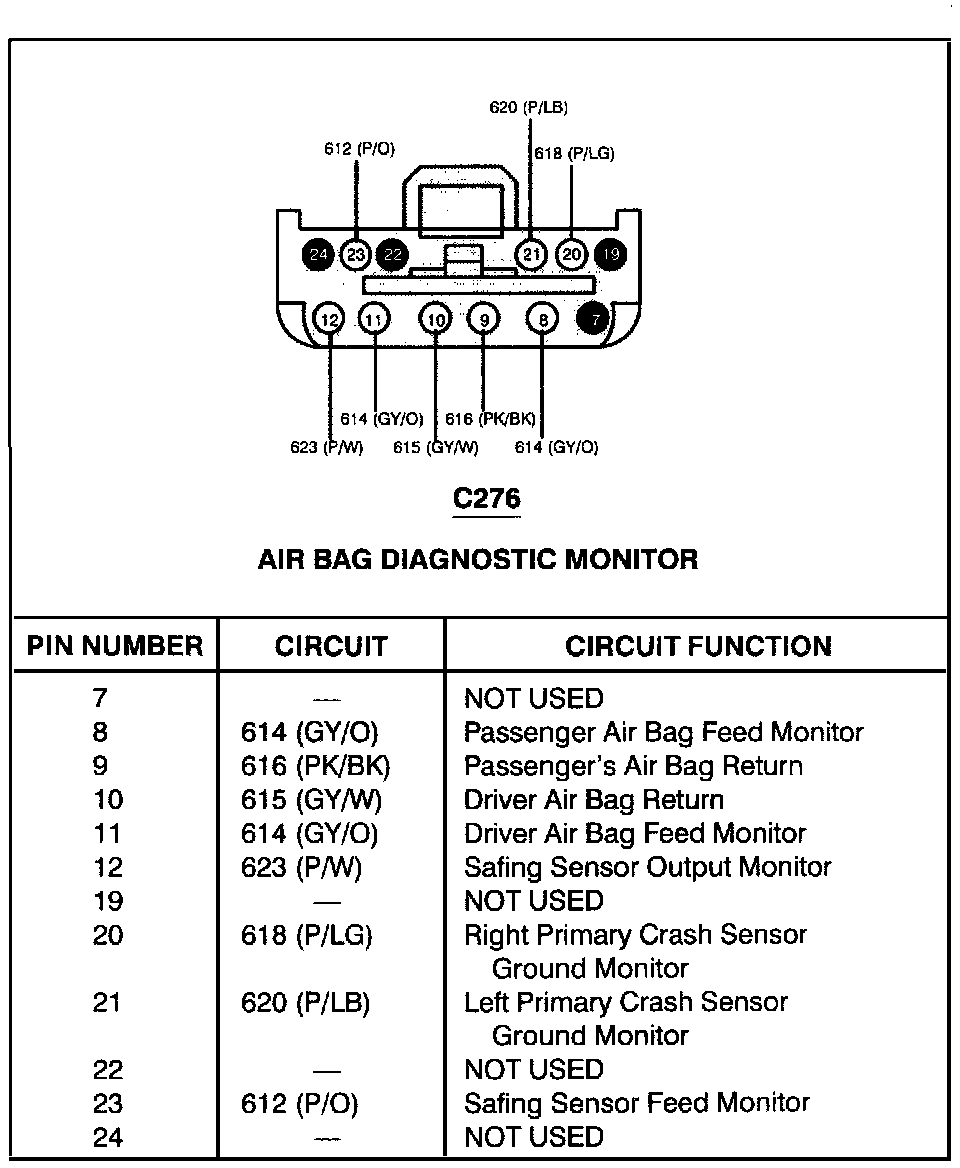

Air Bag Diagnostic Monitor (C276):
