Electronic Brake Control Module

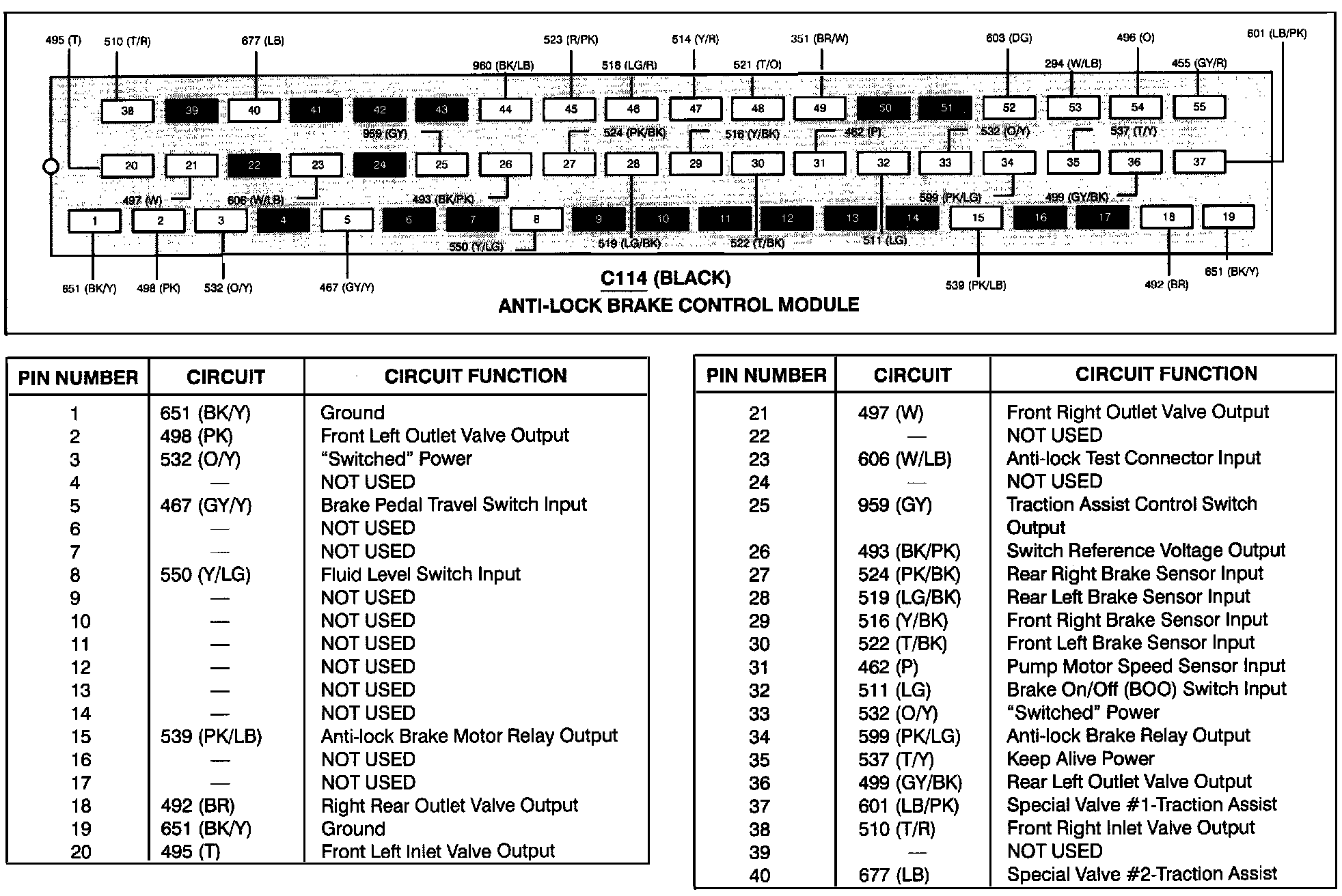

Anti-Lock Brake Control Module (C114) - Part 1 Of 2:



Anti-Lock Brake Control Module (C114) - Part 2 Of 2:
