Variable Control Relay Module Connector

Variable Control Relay Module Connector:

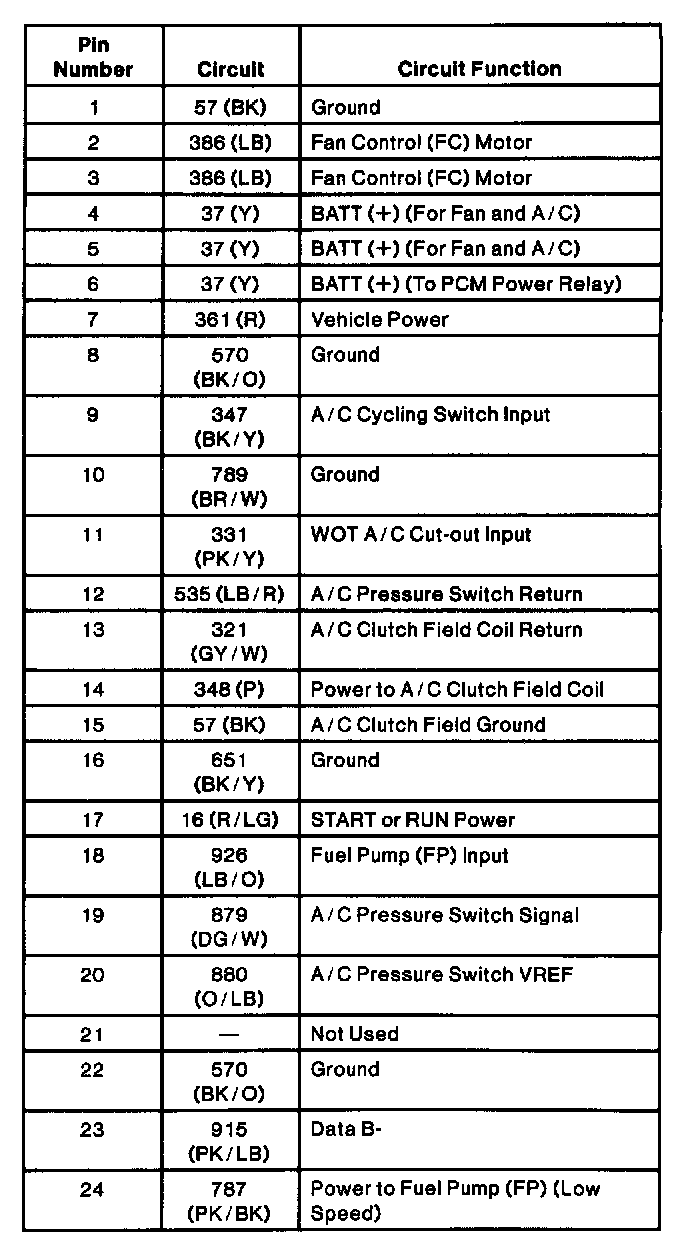

Variable Control Relay Module Connector Terminal ID:
