Keyless Entry Module

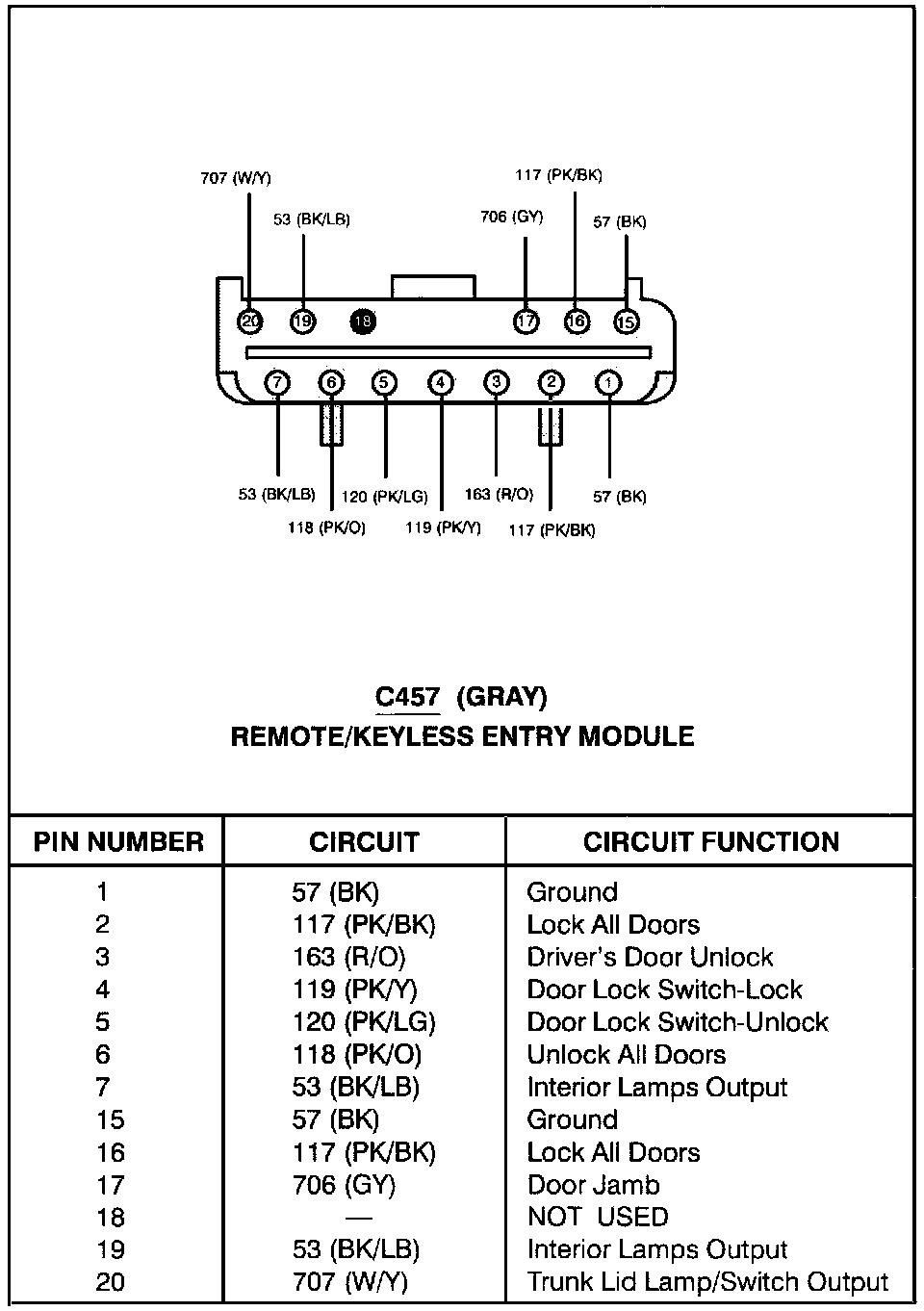

Remote/Keyless Entry Module (C457):

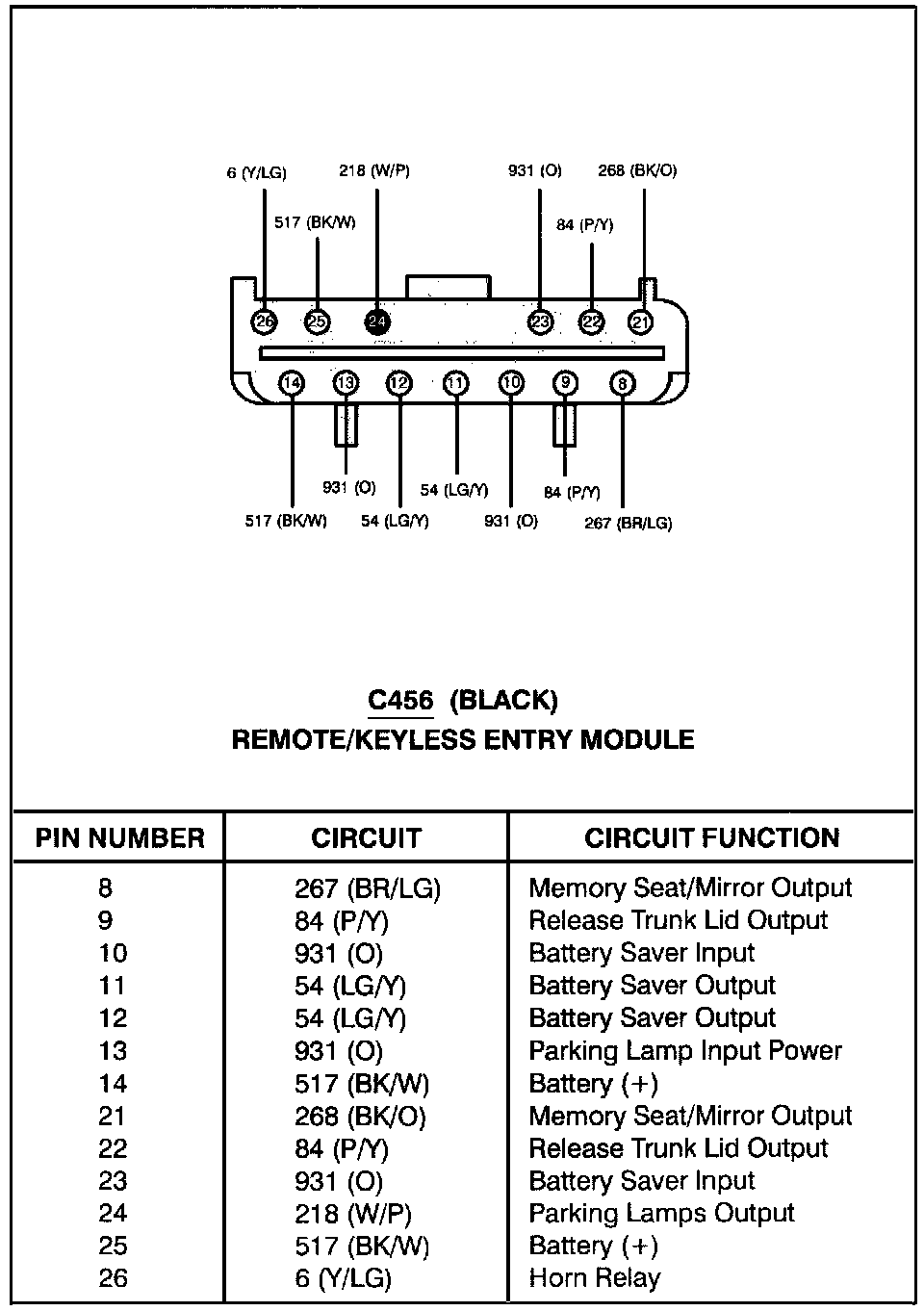

Remote/Keyless Entry Module (C456):

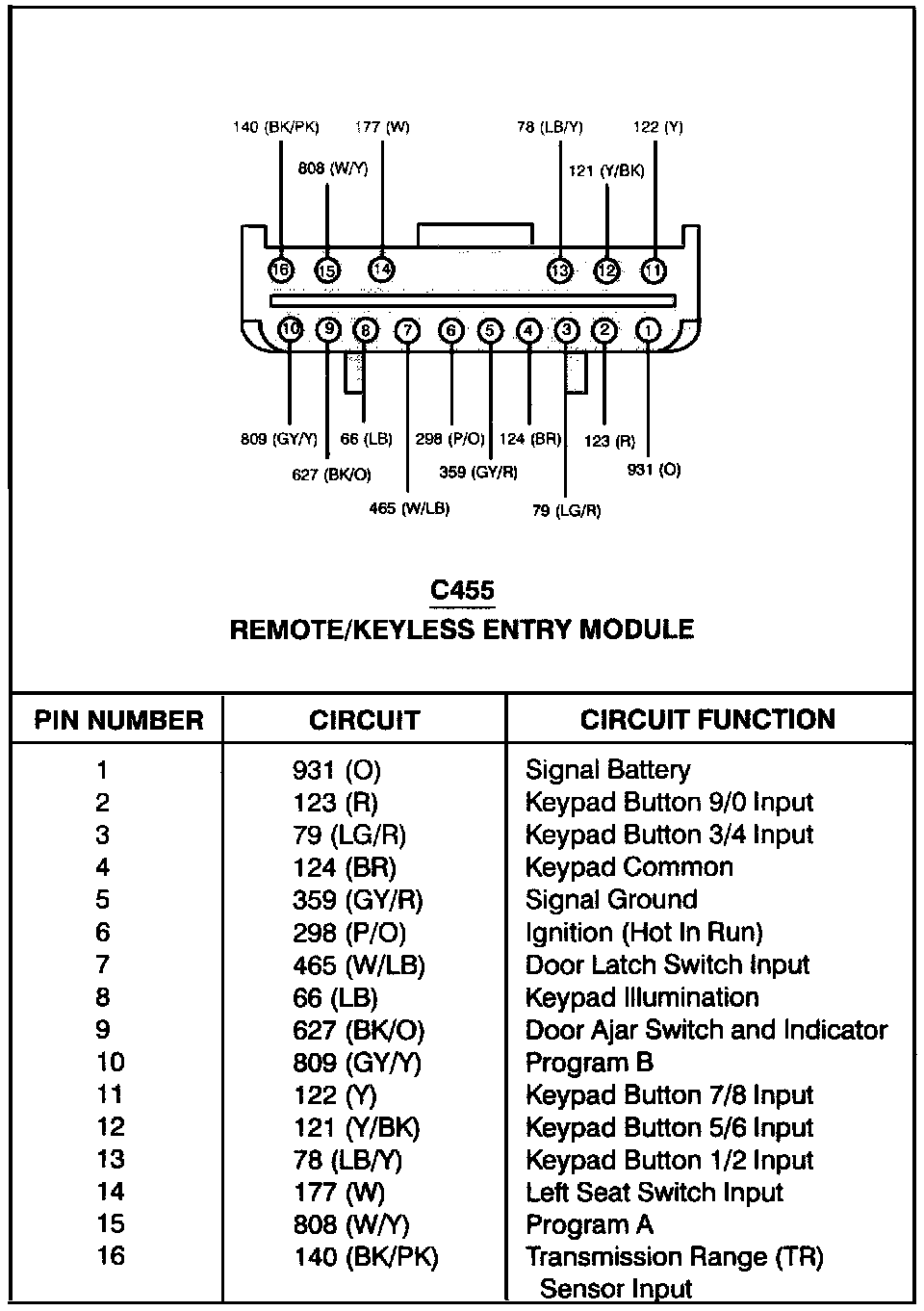

Remote/Keyless Entry Module (C455):
