Home >> Lincoln >> 1995 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Left
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Left

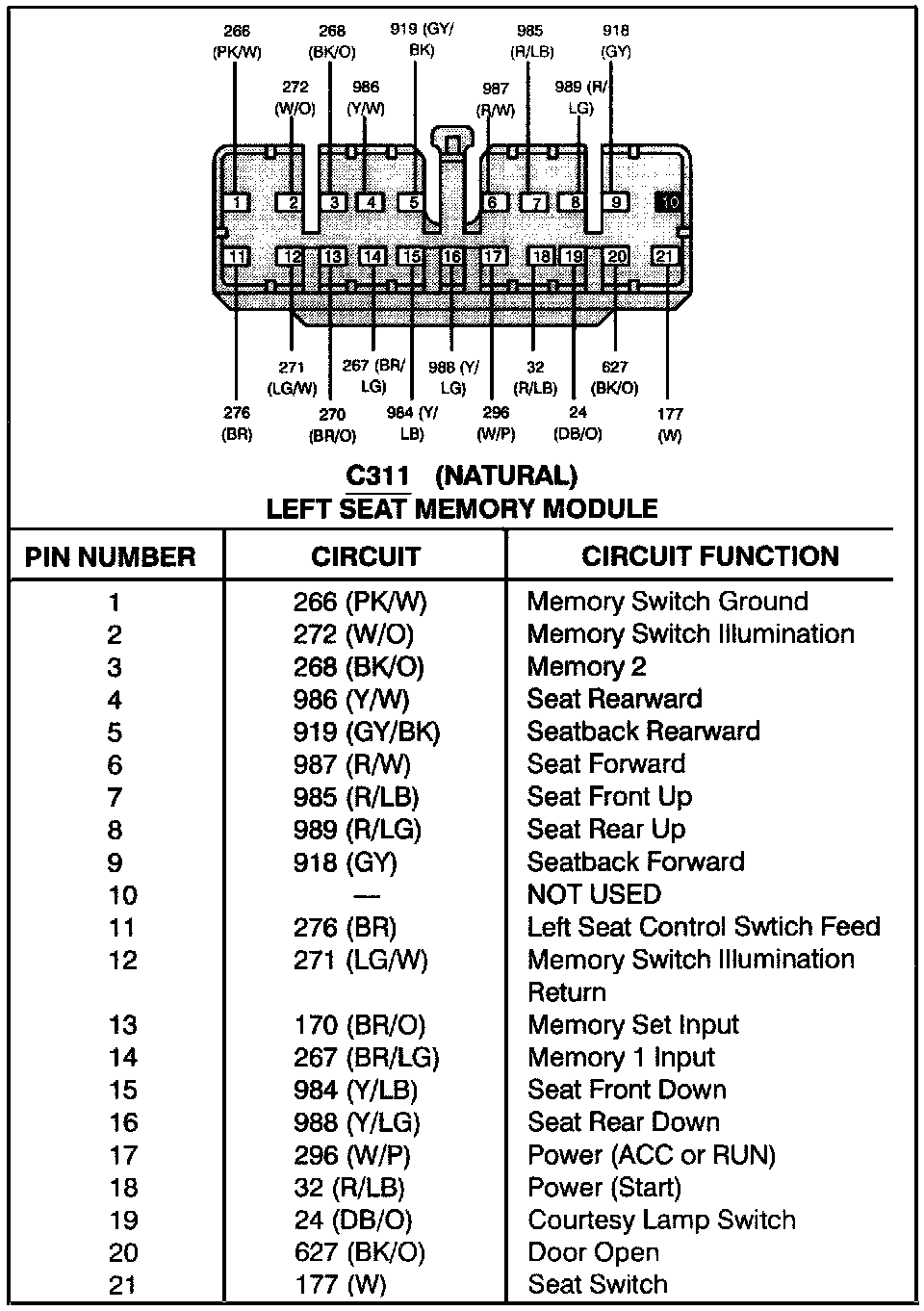

Left Seat Memory Module (C311):

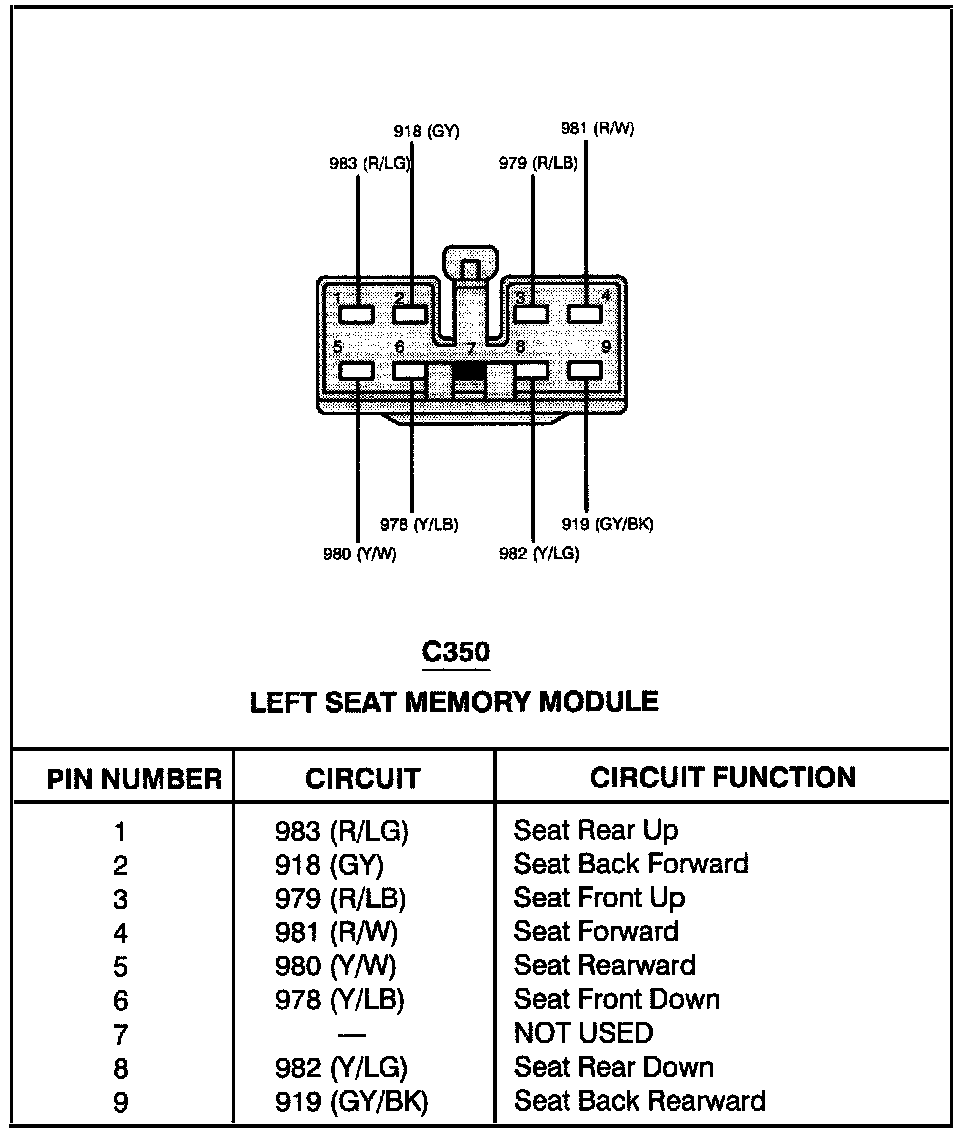

Left Seat Memory Module (C350):

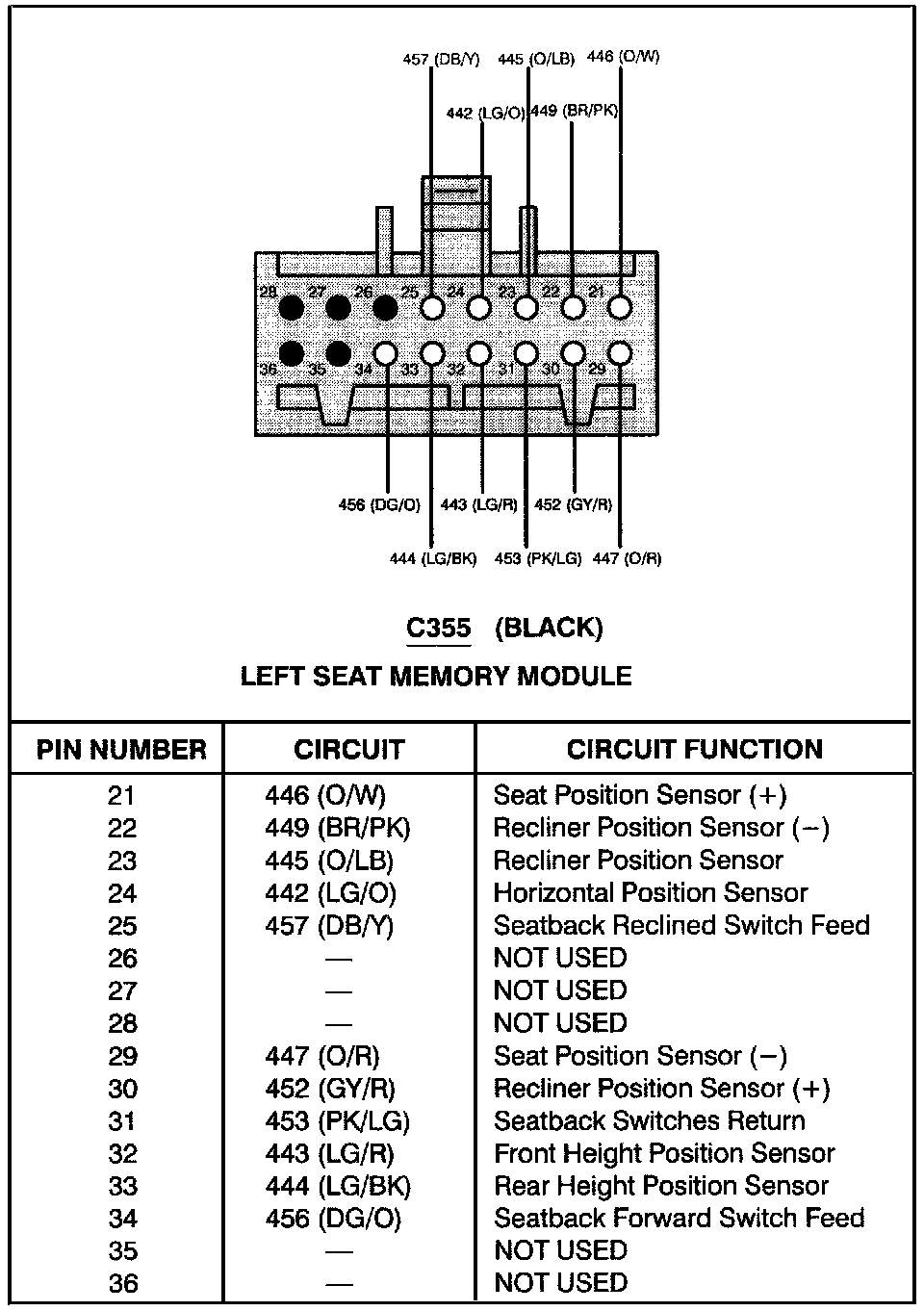

Left Seat Memory Module (C355):
