Air Flow Meter/Sensor: Locations

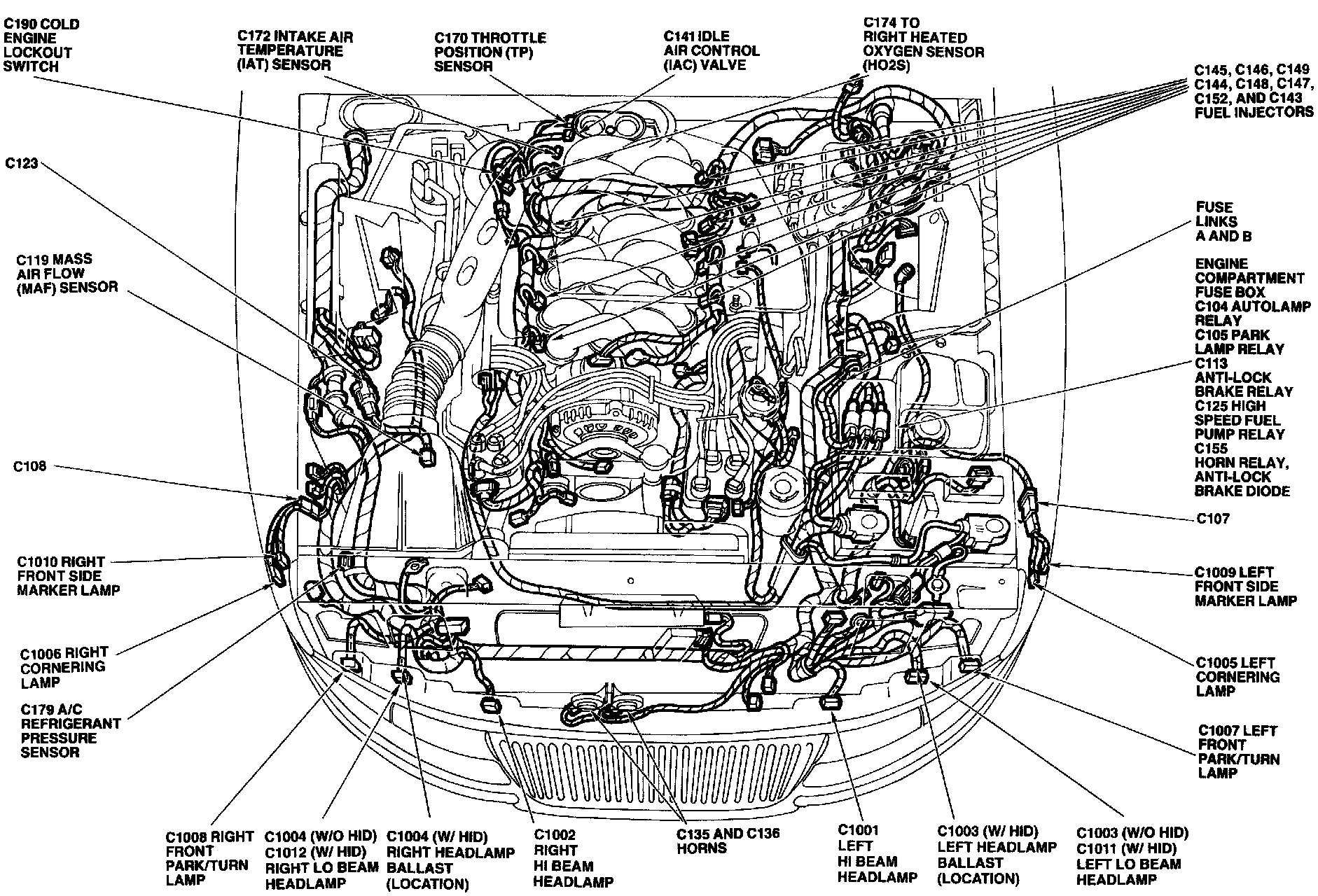

Engine View -Part 2 Of 4:





The Mass Air Flow (MAF) Sensor is located at the RH front corner of engine compartment.
