XB - Variable Control Relay Module (VCRM)
>>
XB - Testing Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
XB - Testing Schematic

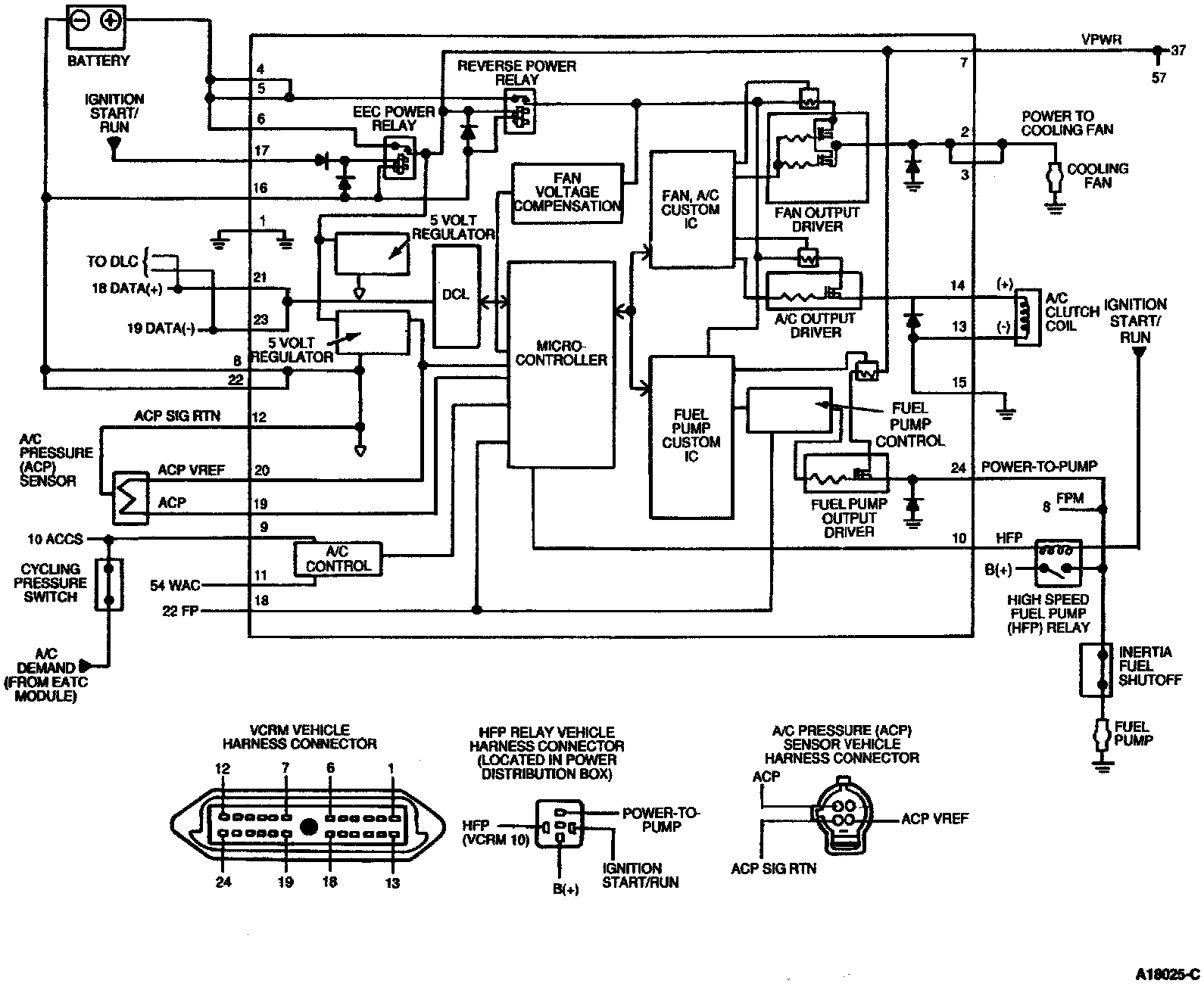

VCRM Diagram:
WIRING DIAGRAM

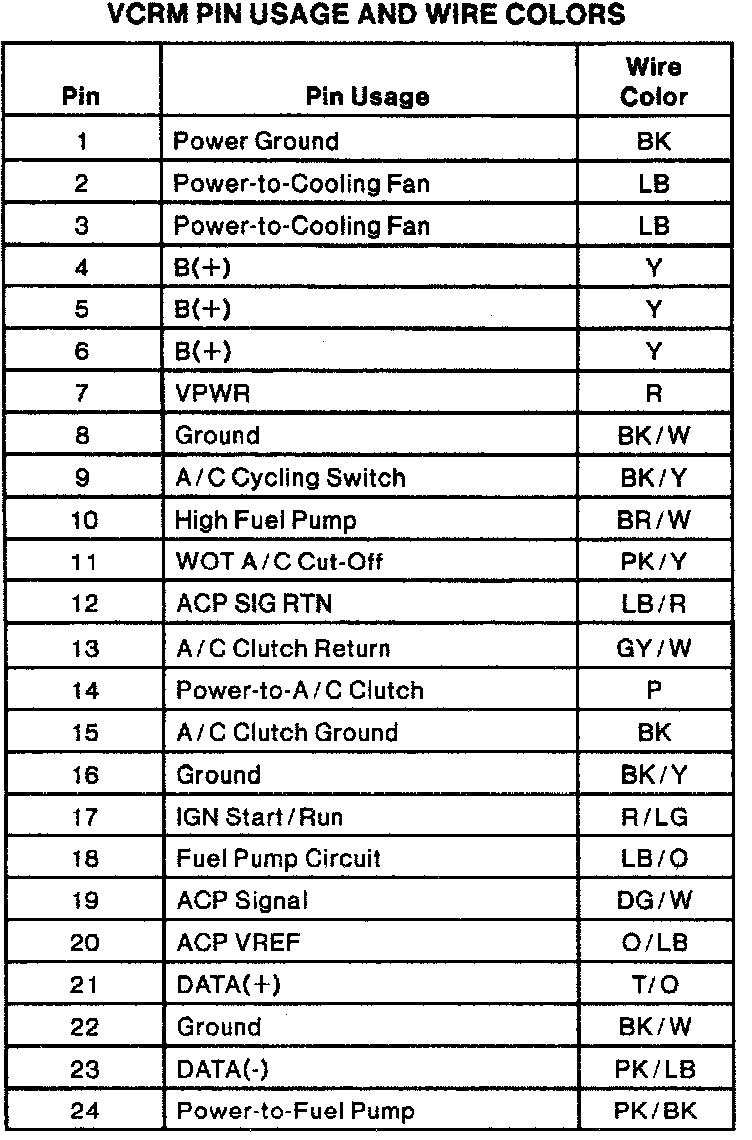

VCRM Pin Usage And Wire Colors.:
PIN USAGE AND WIRE COLORS.
