Ignition Timing Connector: Locations

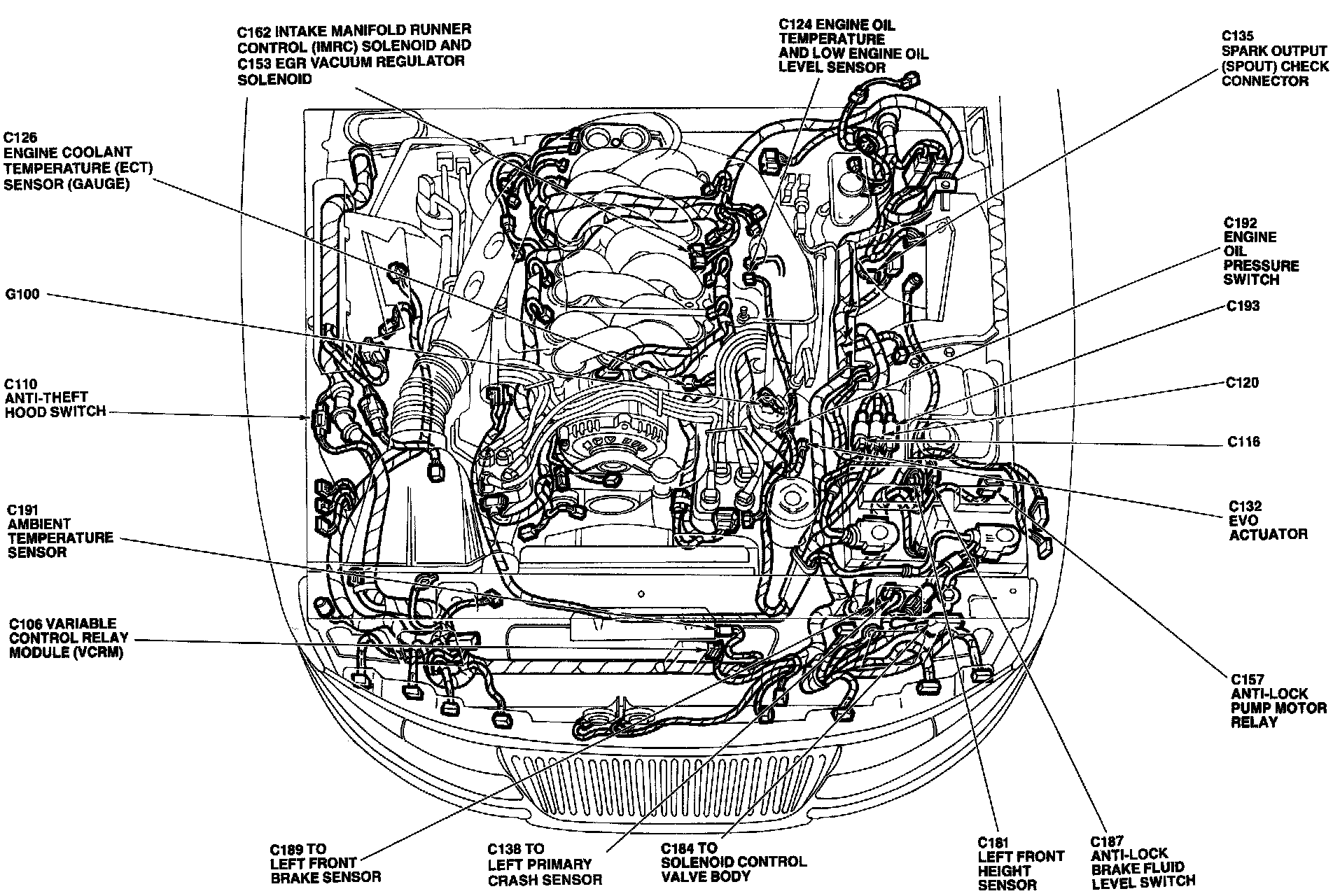

Engine View -Part 4 Of 4:





The Spark Output (SPOUT) Check Connector is located at the LH side of engine compartment, near wheel well.
