Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

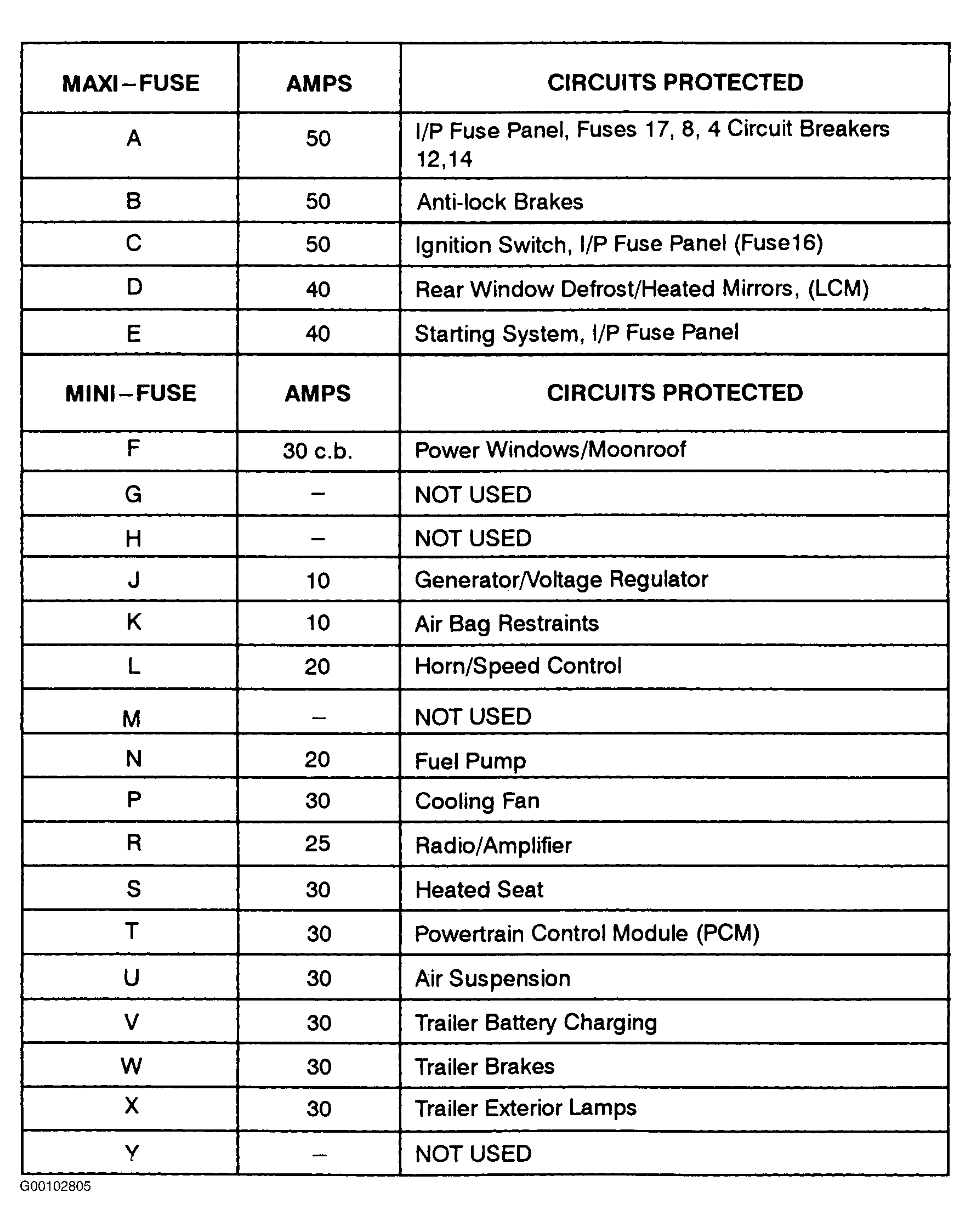

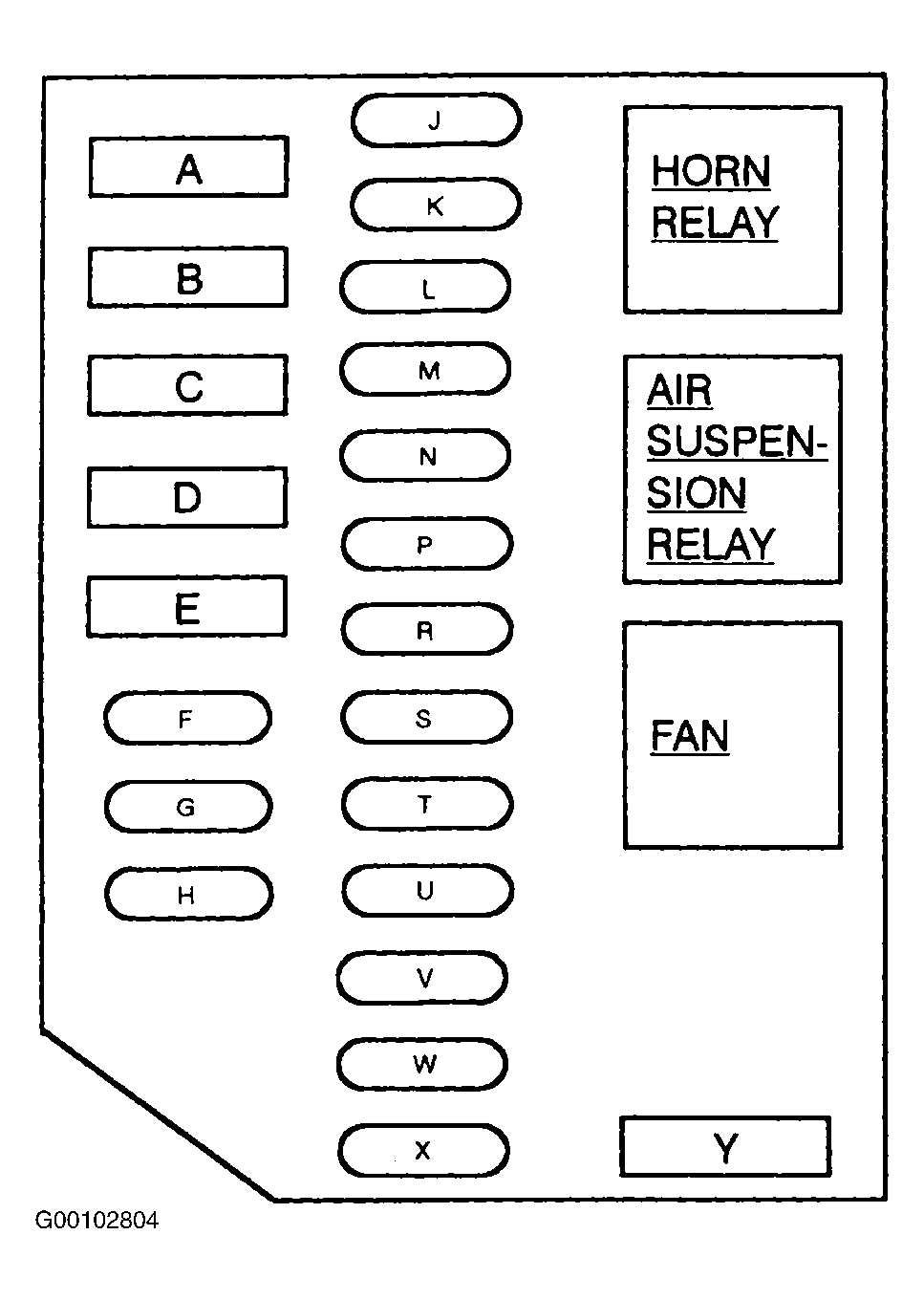

| Engine Compartment Fuse Box | Right Front Of Engine Compartment, Front Of Wheel Well. See Fig 2. |
| Fuse "J" (10 Amp) | Engine Compartment Fuse Box |
| Fuseable Link "A" (50 Amp) | Engine Compartment Fuse Box |

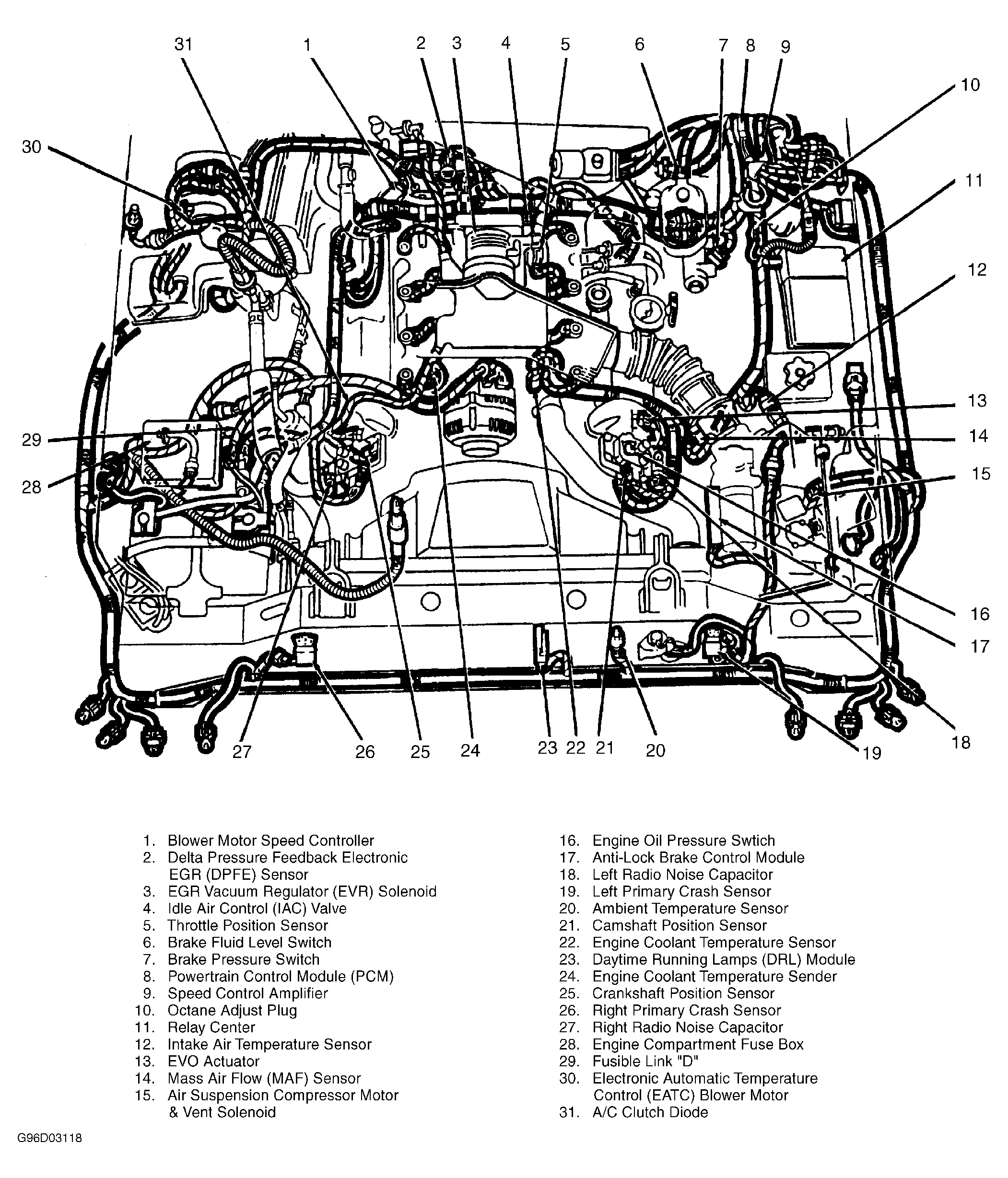

| Generator & Voltage Regulator | Top Front Of Engine |

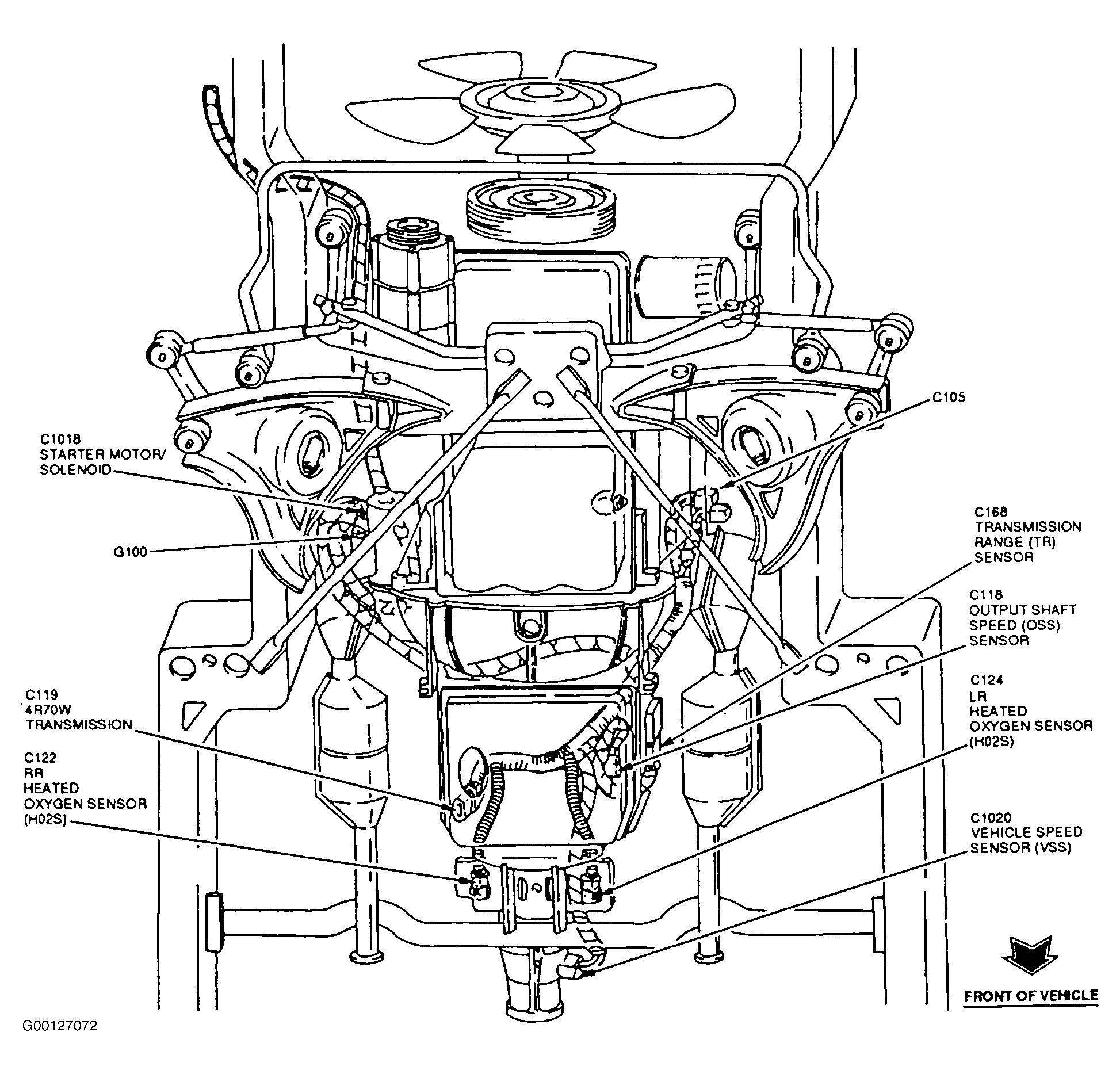

| Ground (G100) | Lower Right Side Of Engine, Near Starter Motor. See Fig 1. |
| Ground (G101) | Near Starter Motor |
| Ground (G117) | Right Front Fender Apron |

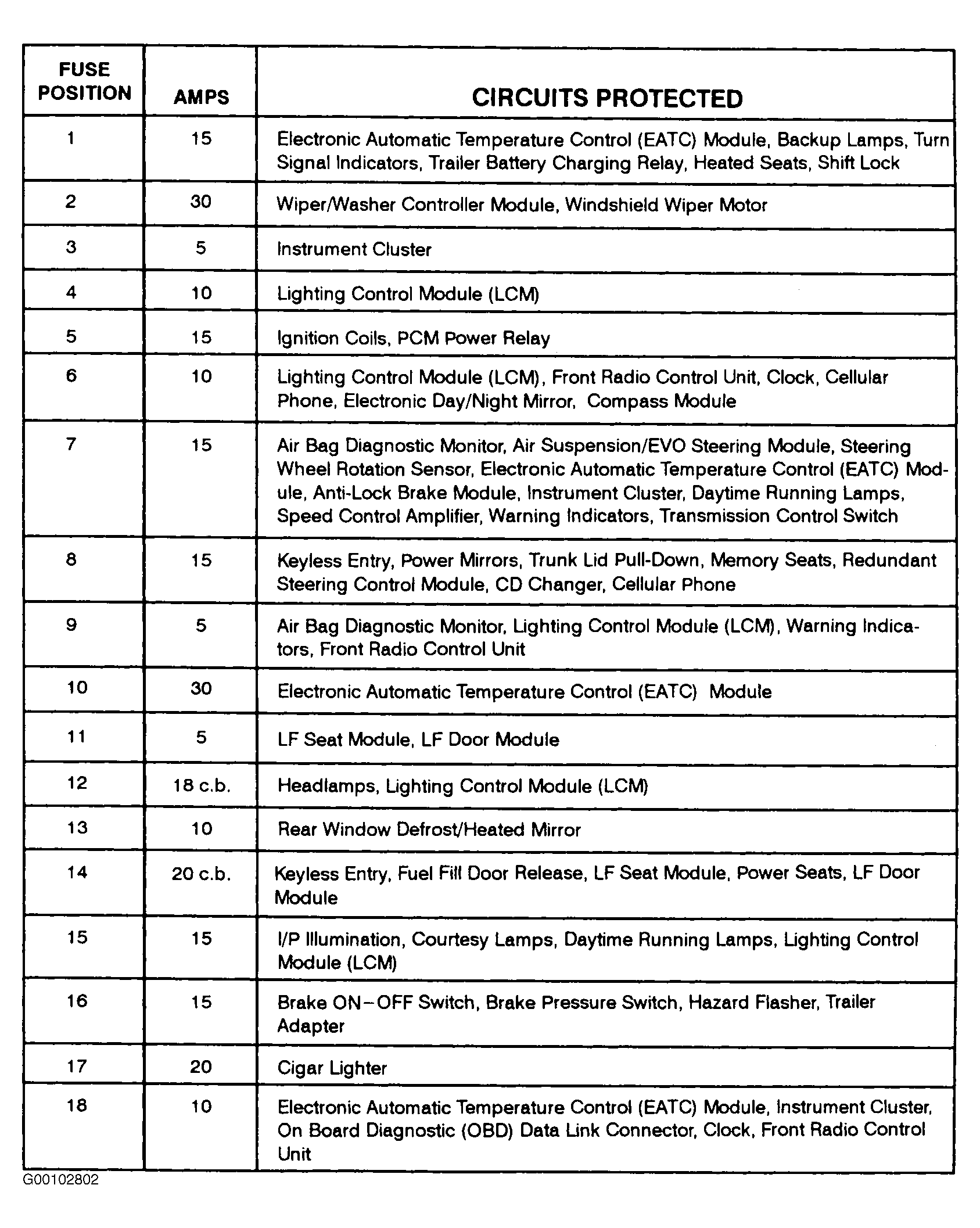

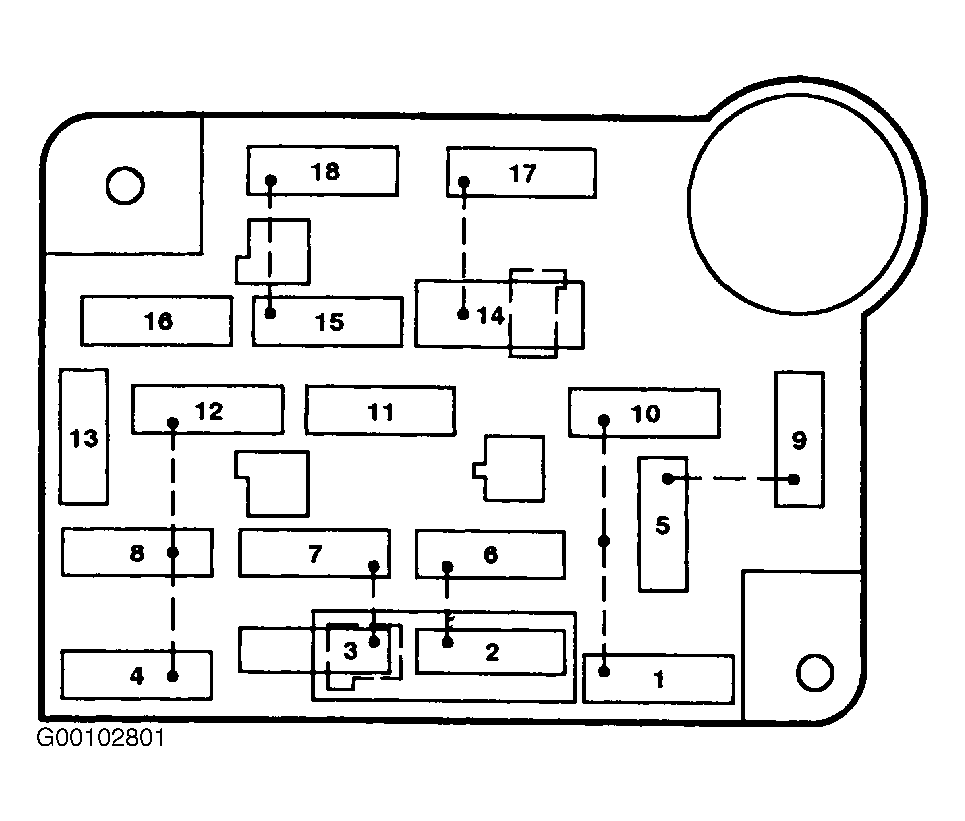

| Instrument Panel Fuse Panel | Behind Instrument Panel, Left Of Steering Column. See Fig 5. |
