Exploded Views

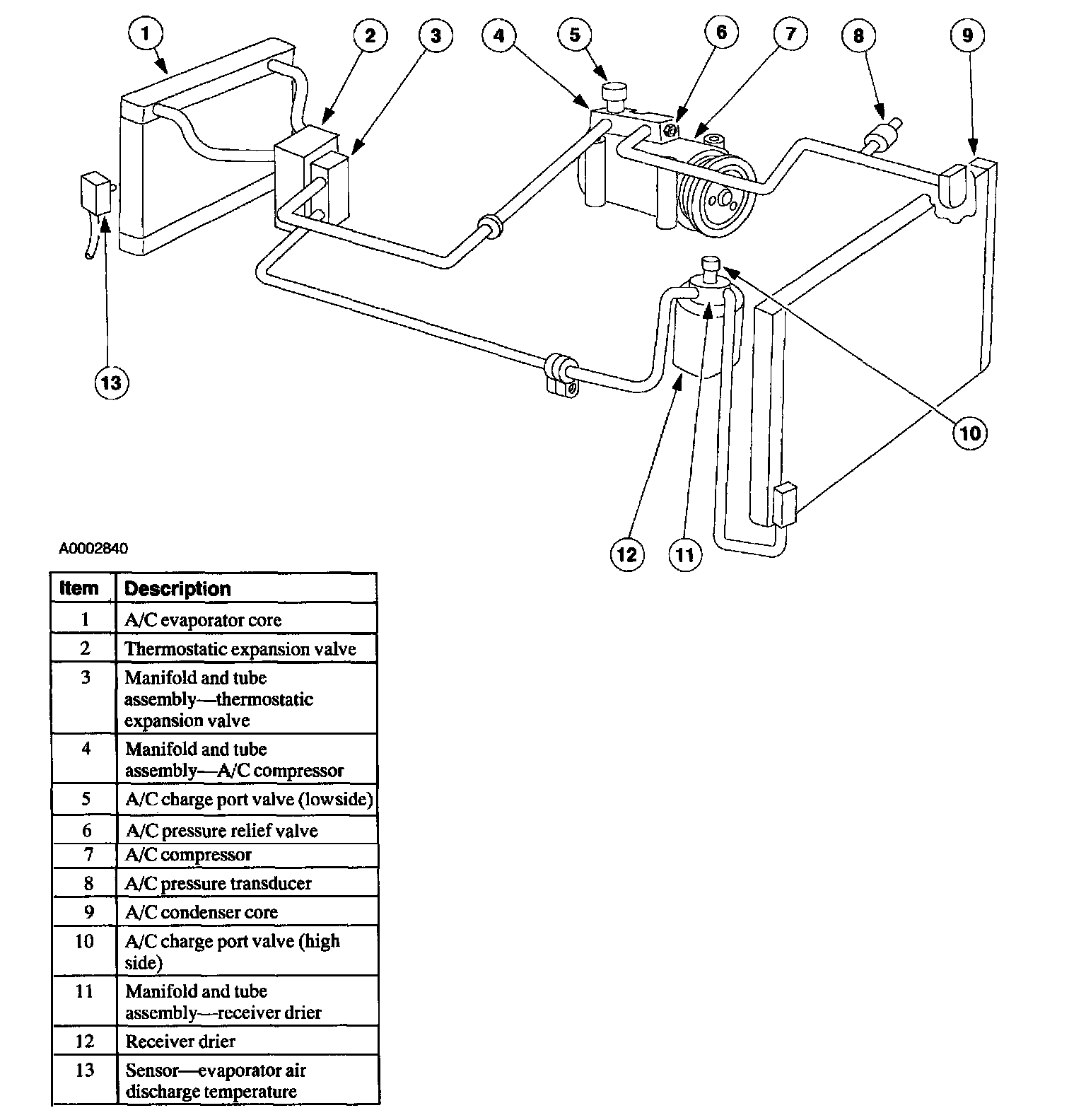

Clutch Cycling Thermostatic Expansion Valve Type Refrigerant System:

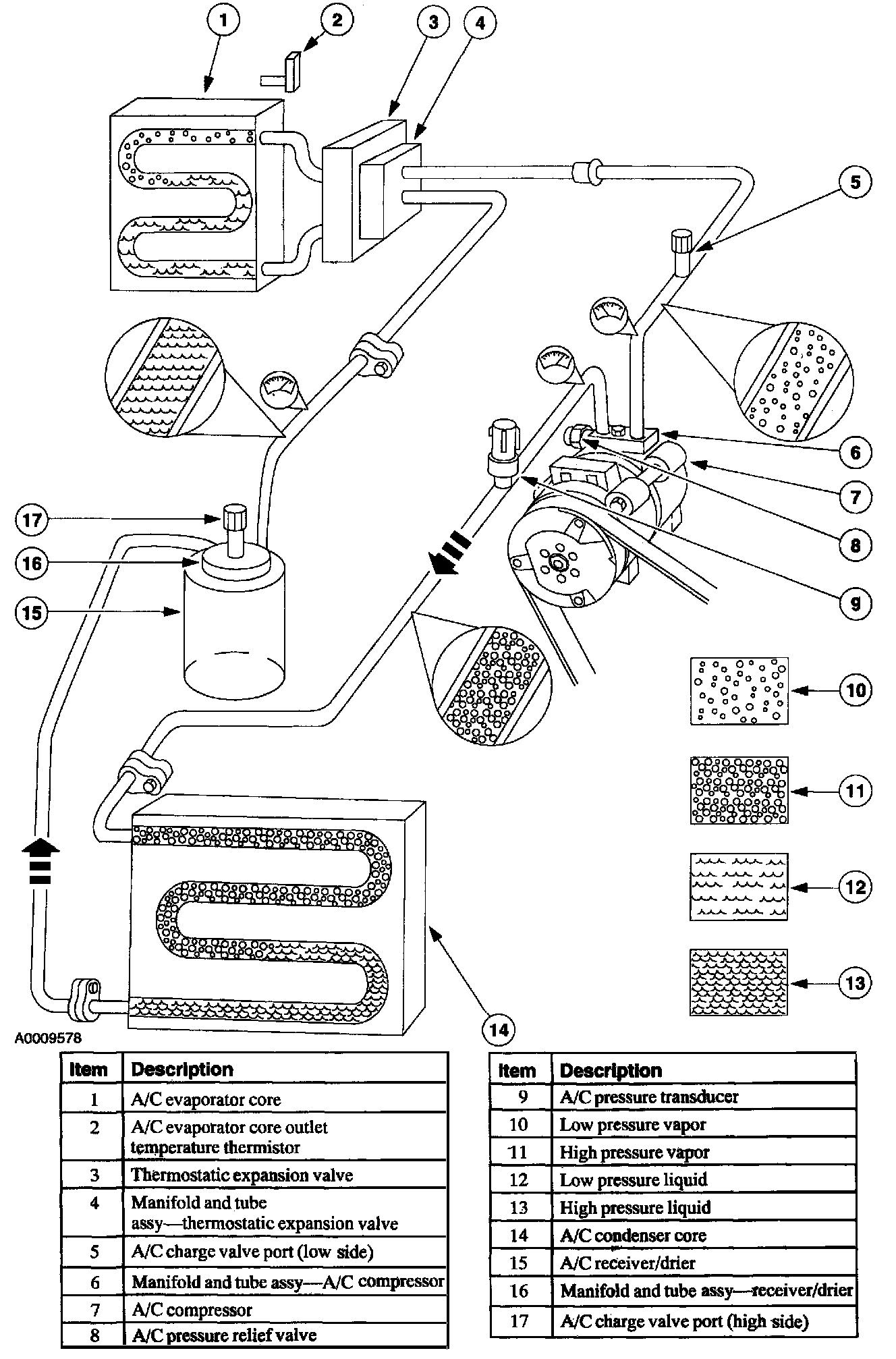

Refrigeration System Components:

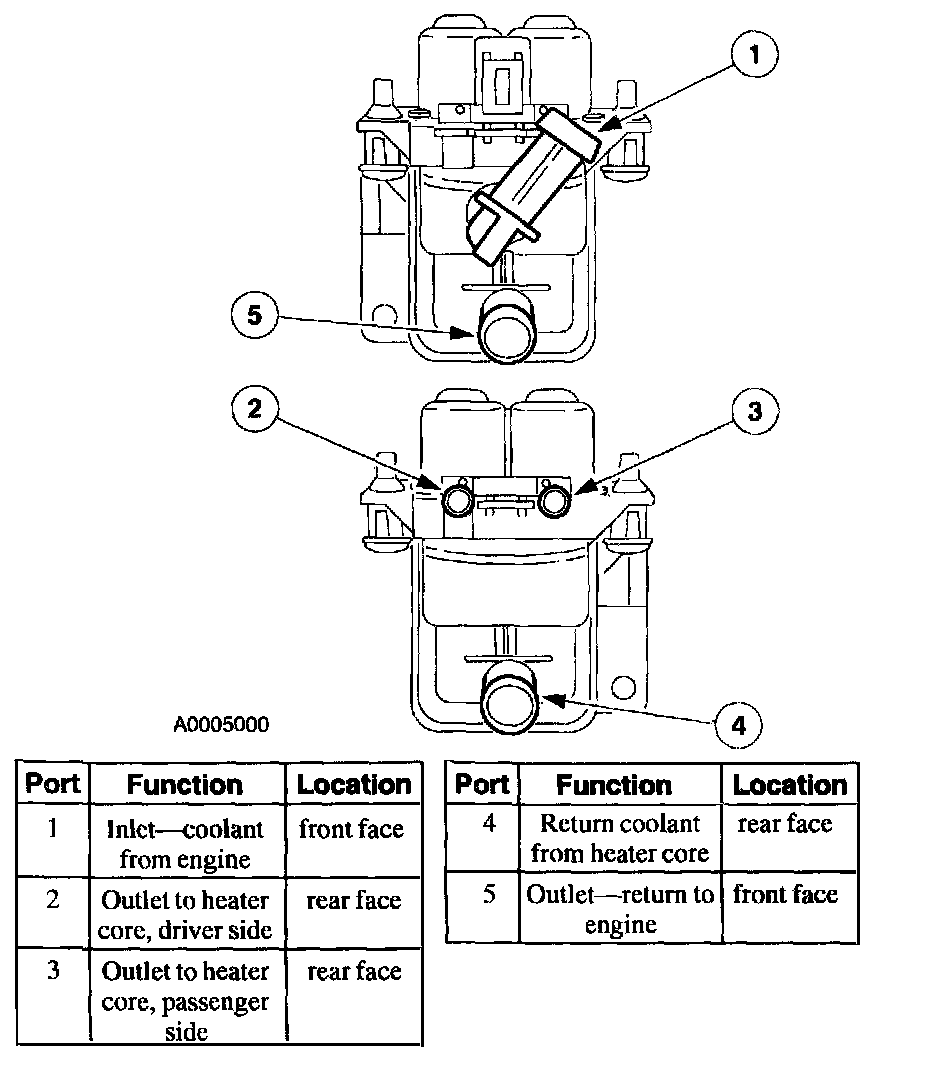

Heater Hose Coupler:






Service Gauge Port Values:

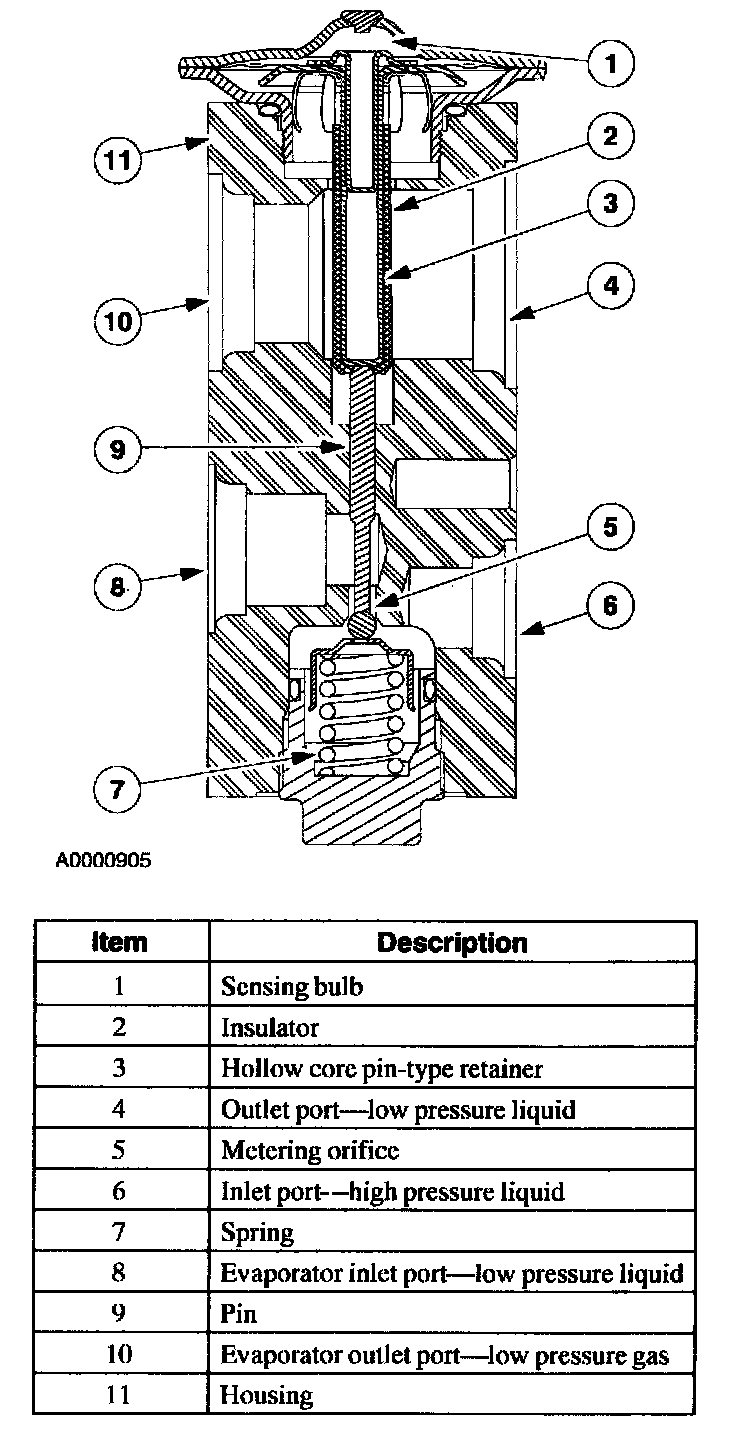

Thermostatic Expansion Valve:

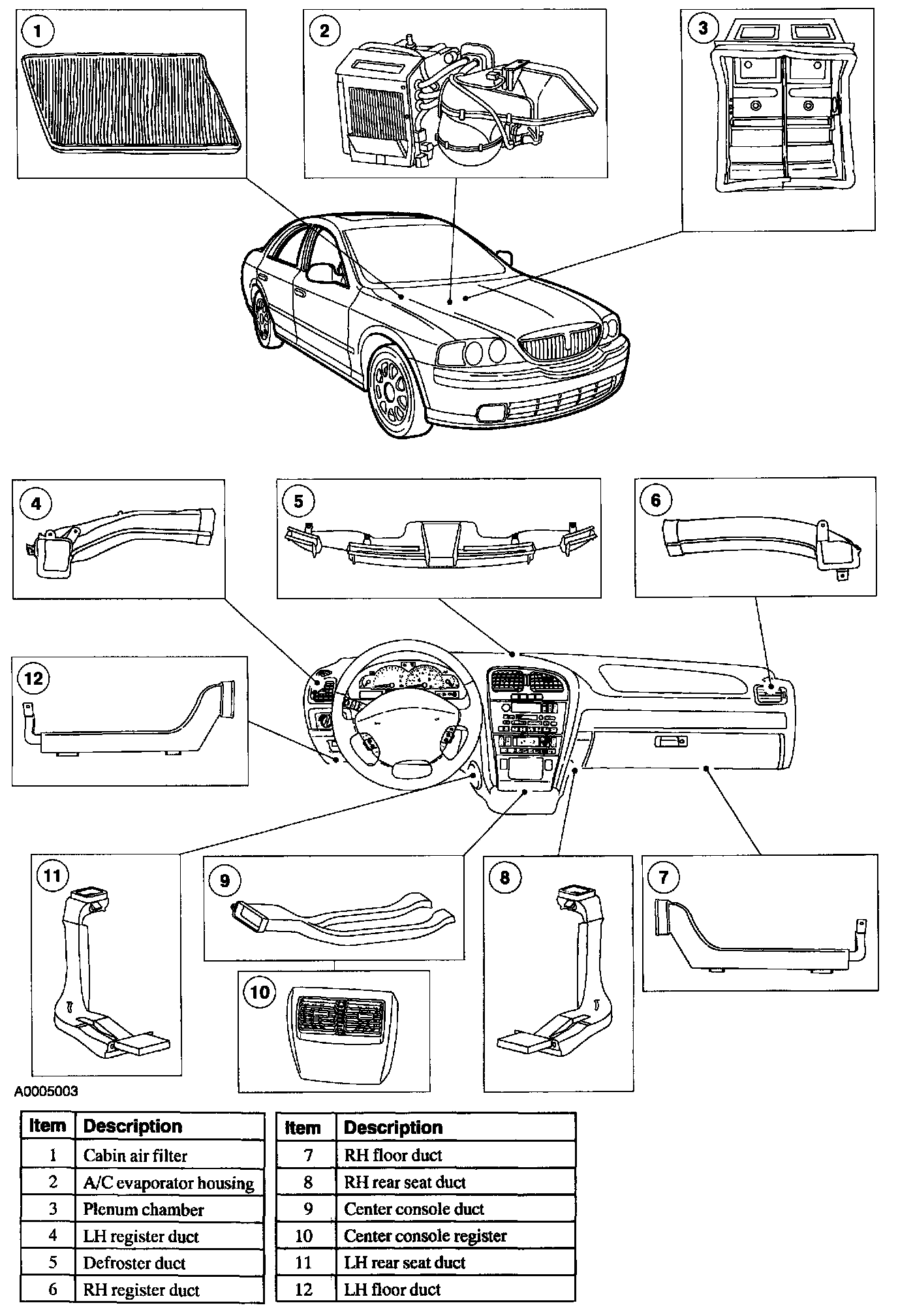

Component Locations:











Compressor Clutch Components:
