Headlight Switch

WARNING: This page is about a different car, the 2002 Lincoln Navigator and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlight switch. See HEADLIGHT SWITCH under REMOVAL & INSTALLATION. Check continuity between appropriate terminals with switch in specified position. See HEADLIGHT SWITCH TEST table. See Fig 1. If continuity is not as specified, replace headlight switch.

HEADLIGHT SWITCH TEST

Switch Position

Between Terminals No.

Continuity

Interior Bulb Circuit

⁽¹⁾

2 & 4

Yes

⁽²⁾

2 & 4

Headlight Circuit

Off

8 & 9

Park

8 & 9

Head

8 & 9

Yes

Parking Lights Circuit

Off

11 & 12

Park

11 & 12

Yes

Head

11 & 12

Yes

Instrument Panel Dimmer Circuit

⁽³⁾

1 & 6

⁽⁴⁾

⁽¹⁾	Knob rotated fully counterclockwise (in detent).

⁽²⁾	Knob rotated fully clockwise (out of detent).

⁽³⁾	Knob rotated left from full right position.

⁽⁴⁾	Resistance should decrease smoothly.

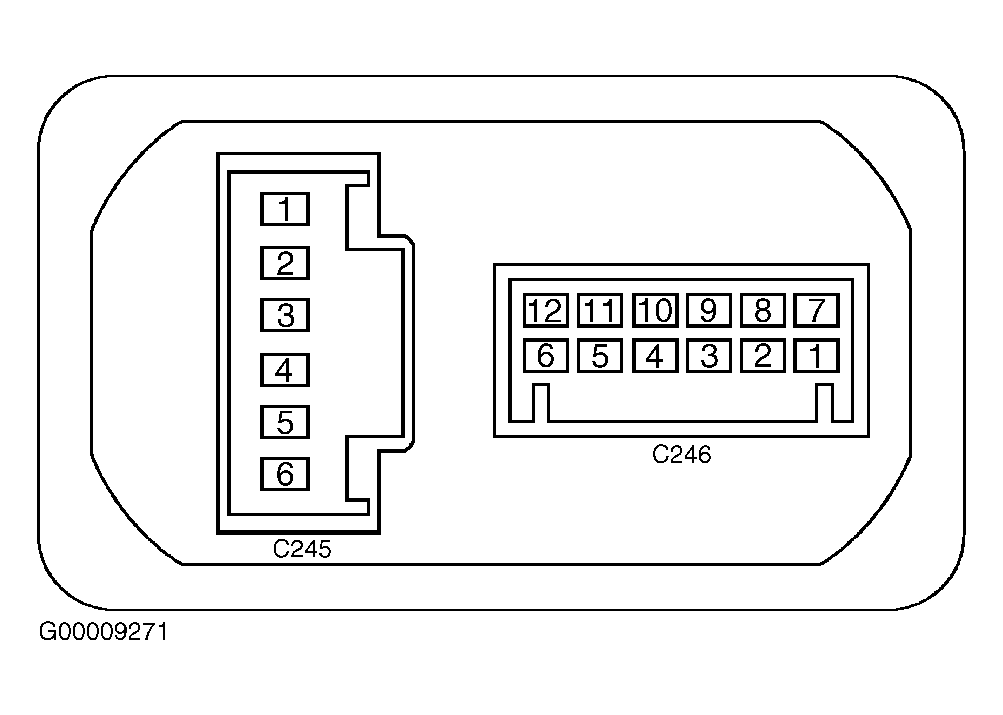

Fig 1: Identifying Main Headlight Switch Terminals

Courtesy of FORD MOTOR CO.
