Approach Lamp

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Fold the mirror assembly forward.

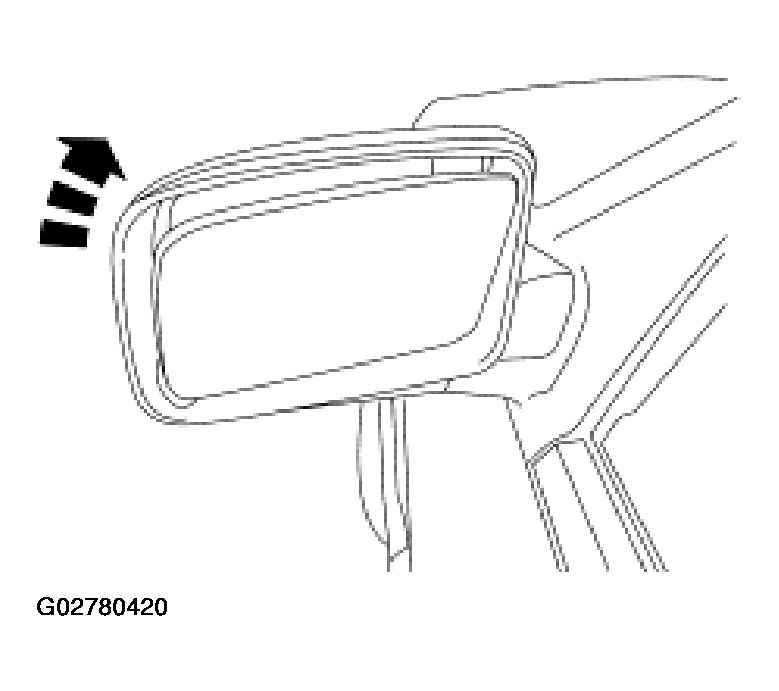

Fig 1: Folding Mirror Assembly Forward
Courtesy of FORD MOTOR CO.
Remove the Torx(R)-head screw.

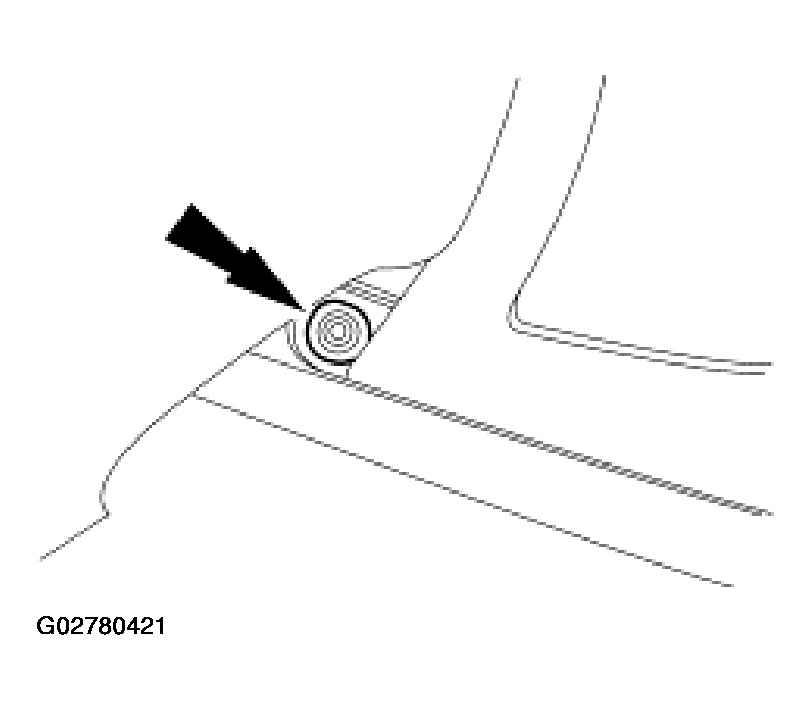

Fig 2: Removing Torx(R)-Head Screw
Courtesy of FORD MOTOR CO.
Remove the approach lamp connector from the turn signal assembly.

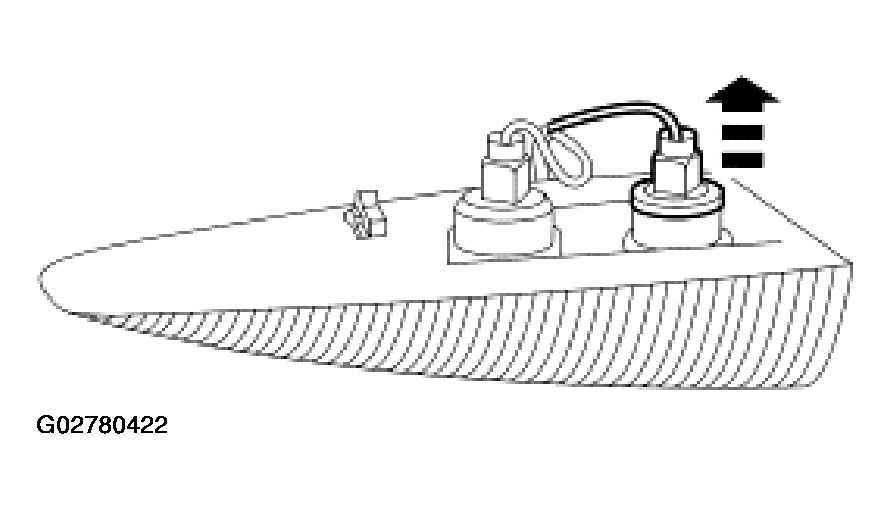

Fig 3: Removing Approach Lamp Connector From Turn Signal Assembly
Courtesy of FORD MOTOR CO.
Remove the approach lamp bulb.

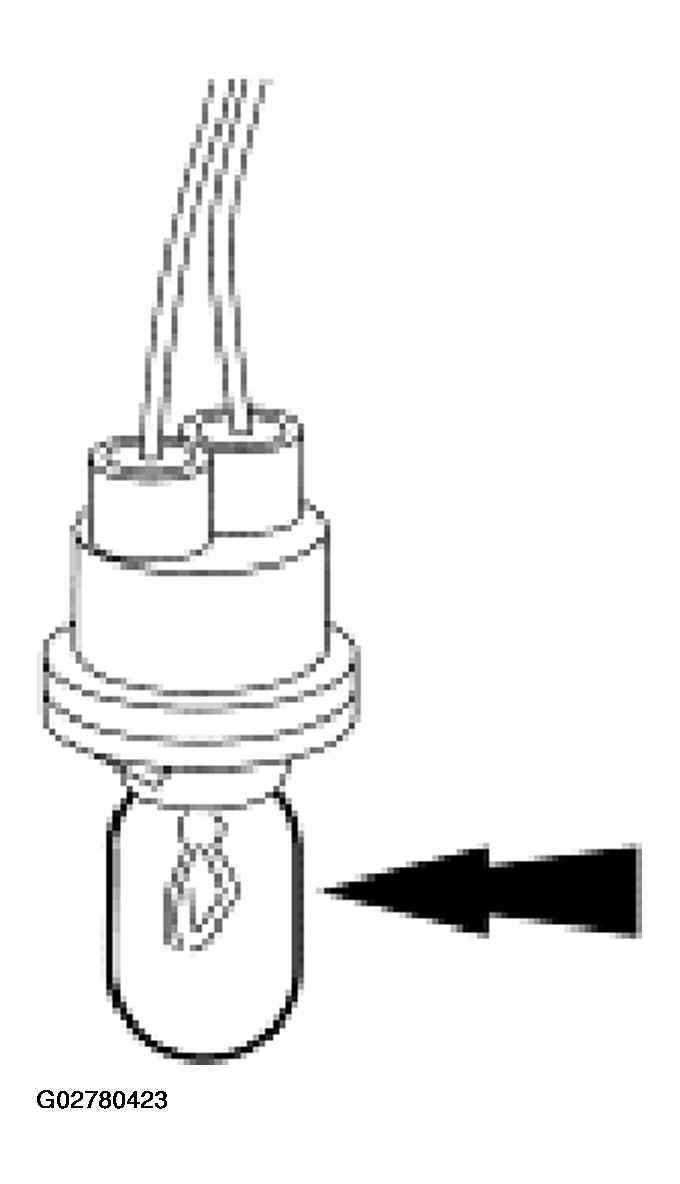

Fig 4: Removing Approach Lamp Bulb
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
