Adjustable pedal switch - with memory

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

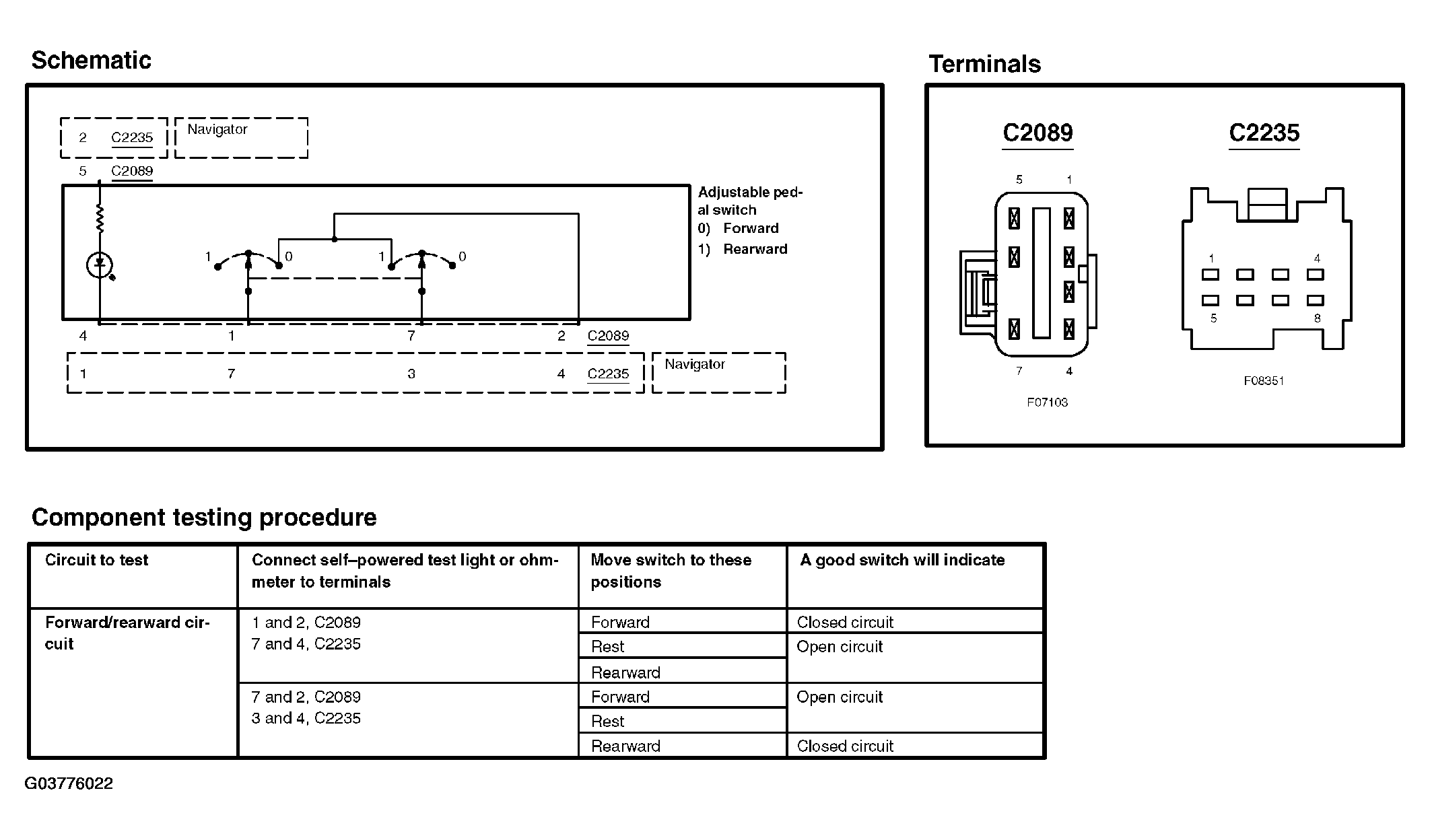

Fig 1: Testing Adjustable Pedal Switch - Without Memory
G03776022Courtesy of FORD MOTOR CO.
