Disassembled Views

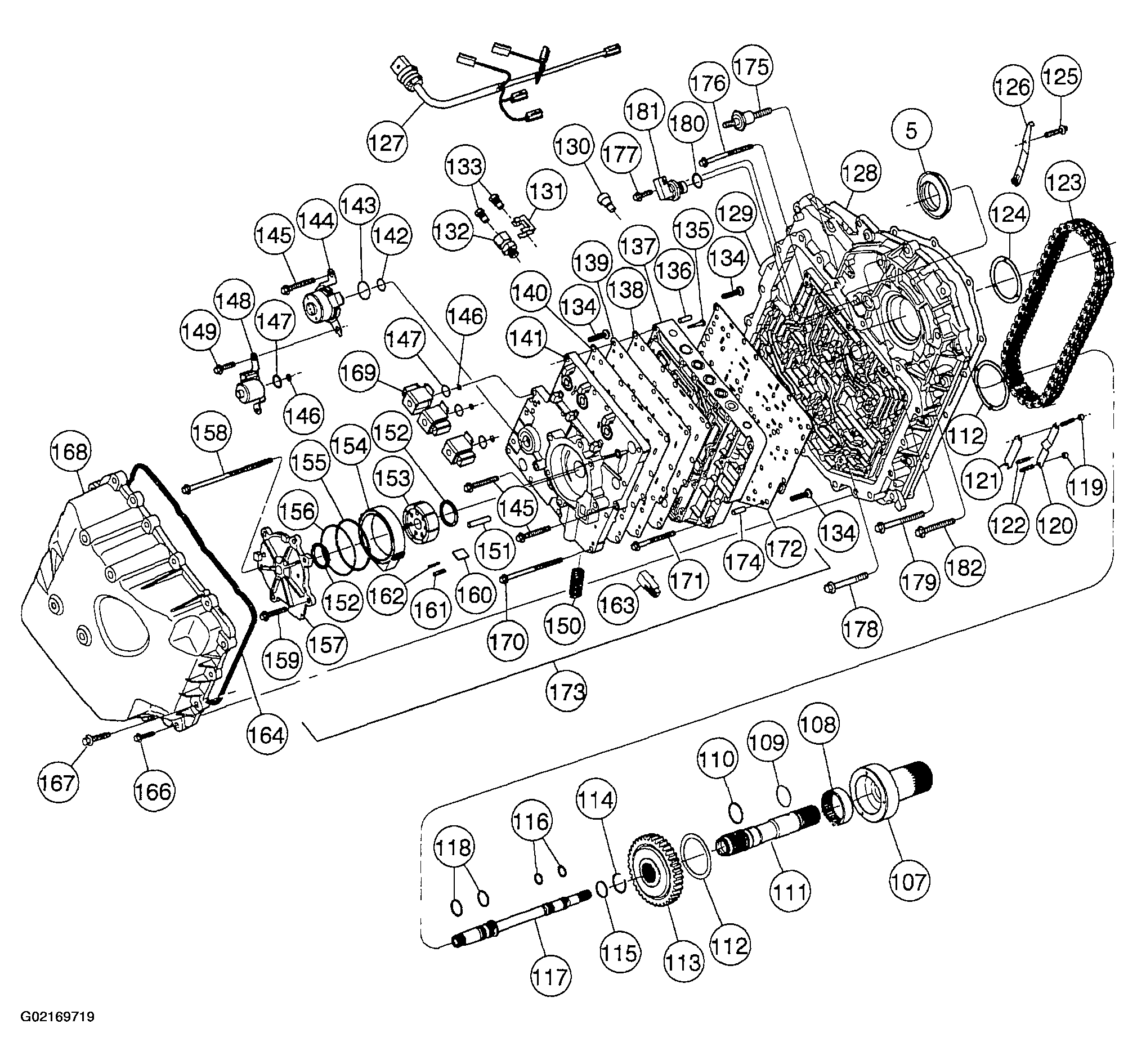

Fig 1: Disassembled View (1 Of 9)

G02169719

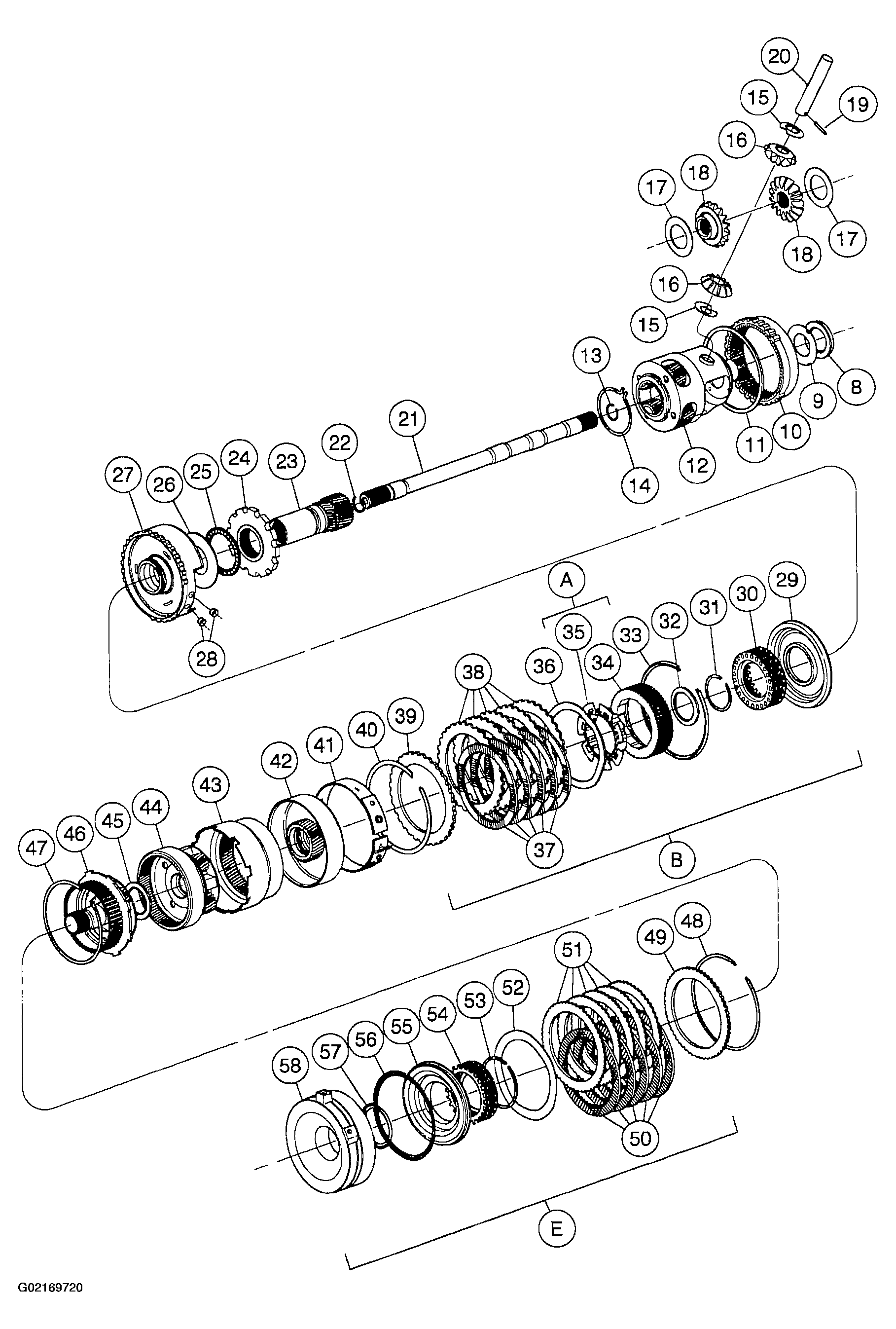

Fig 2: Disassembled View (2 Of 9)

G02169720

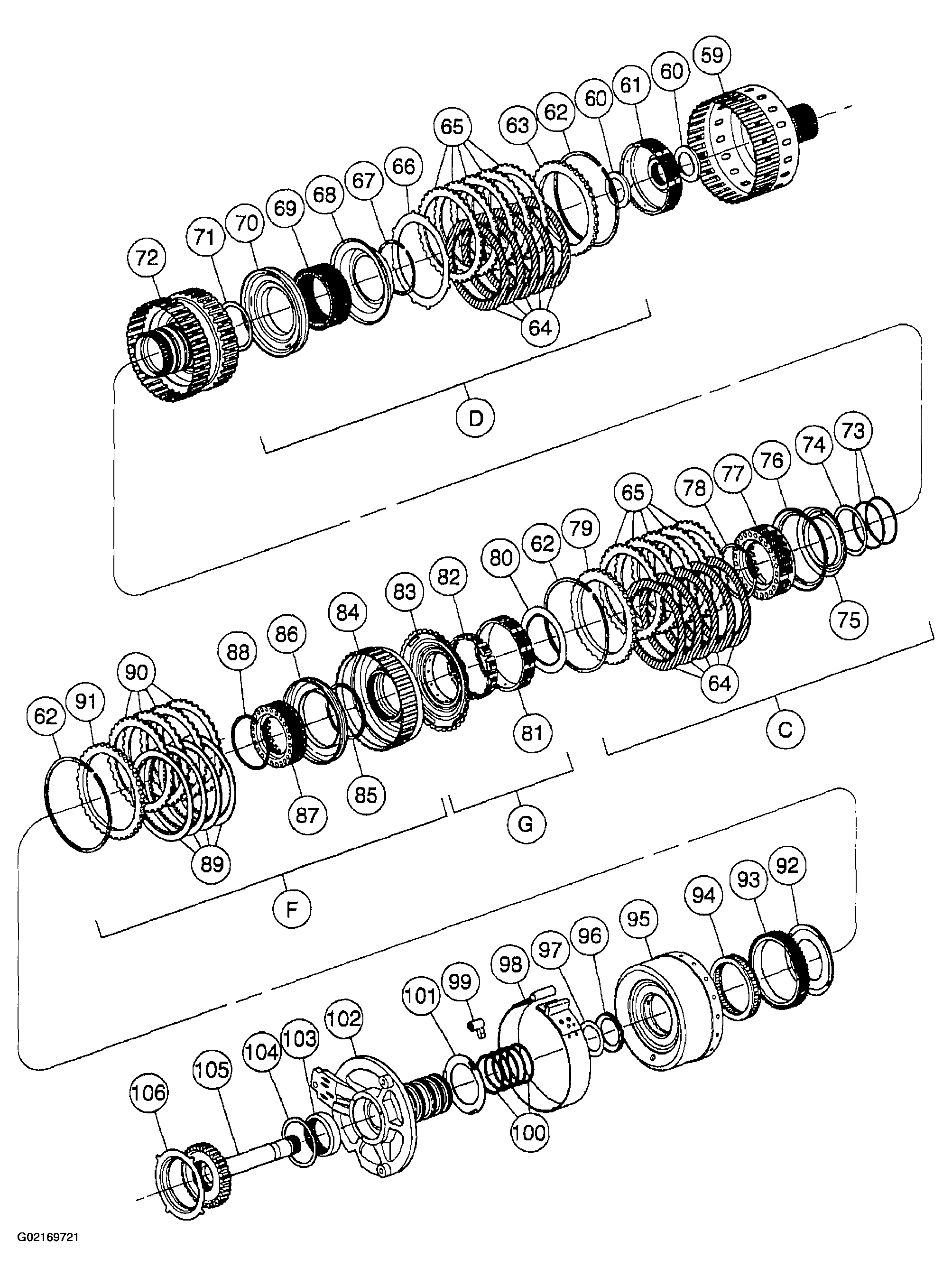

Fig 3: Disassembled View (3 Of 9)

G02169721

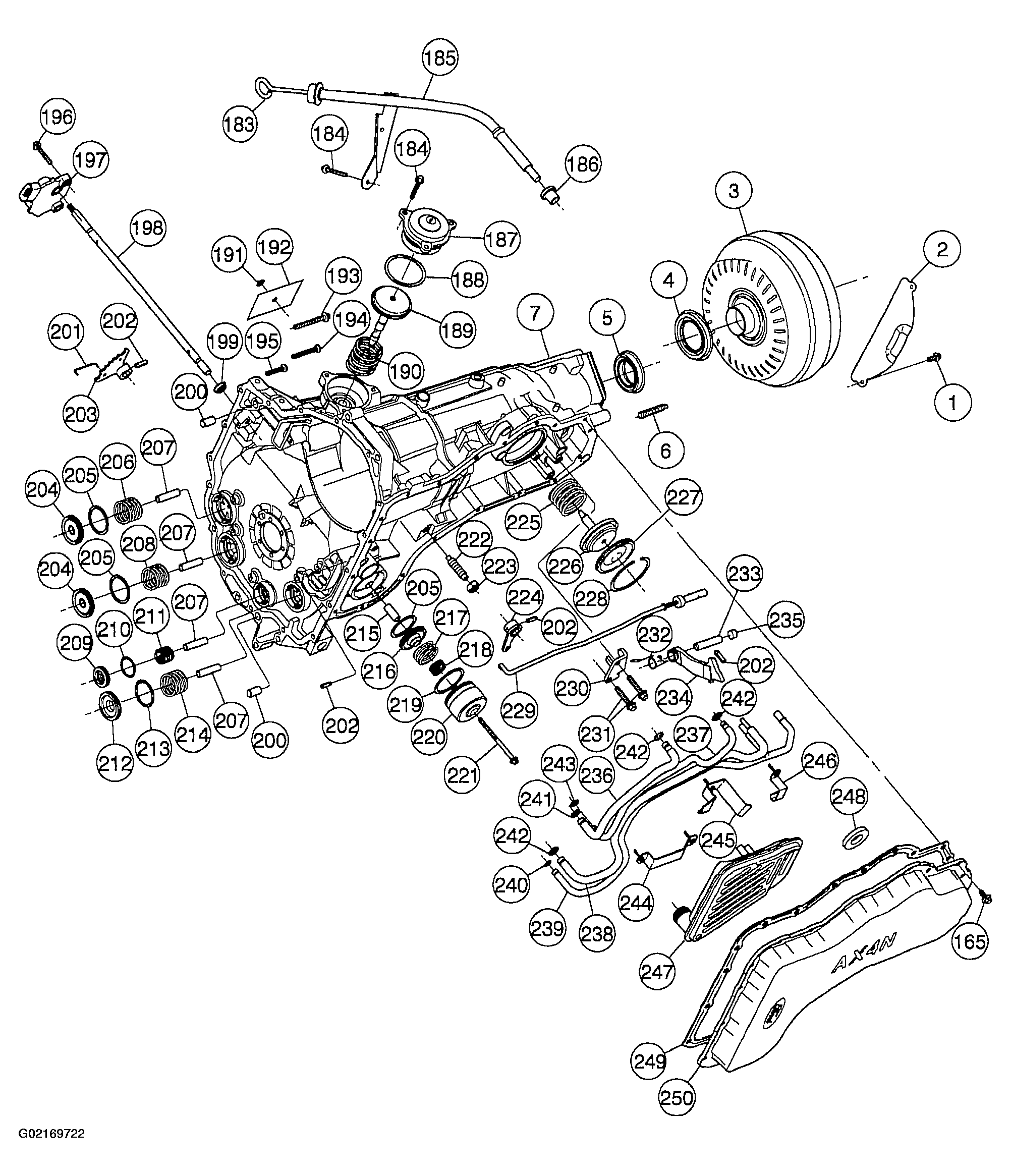

Fig 4: Disassembled View (4 Of 9)

G02169722

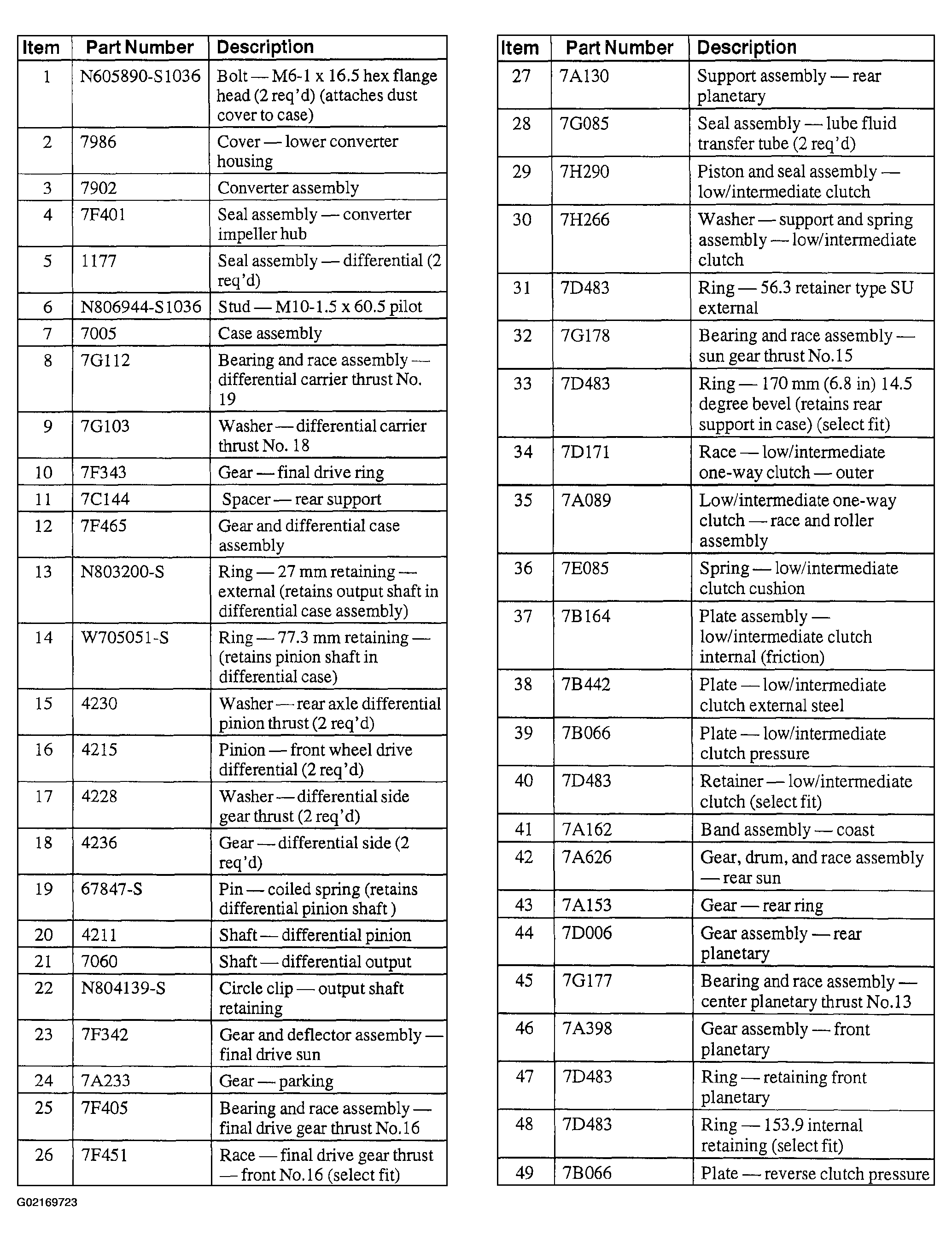

Fig 5: Disassembled View Legend (5 Of 9)

G02169723

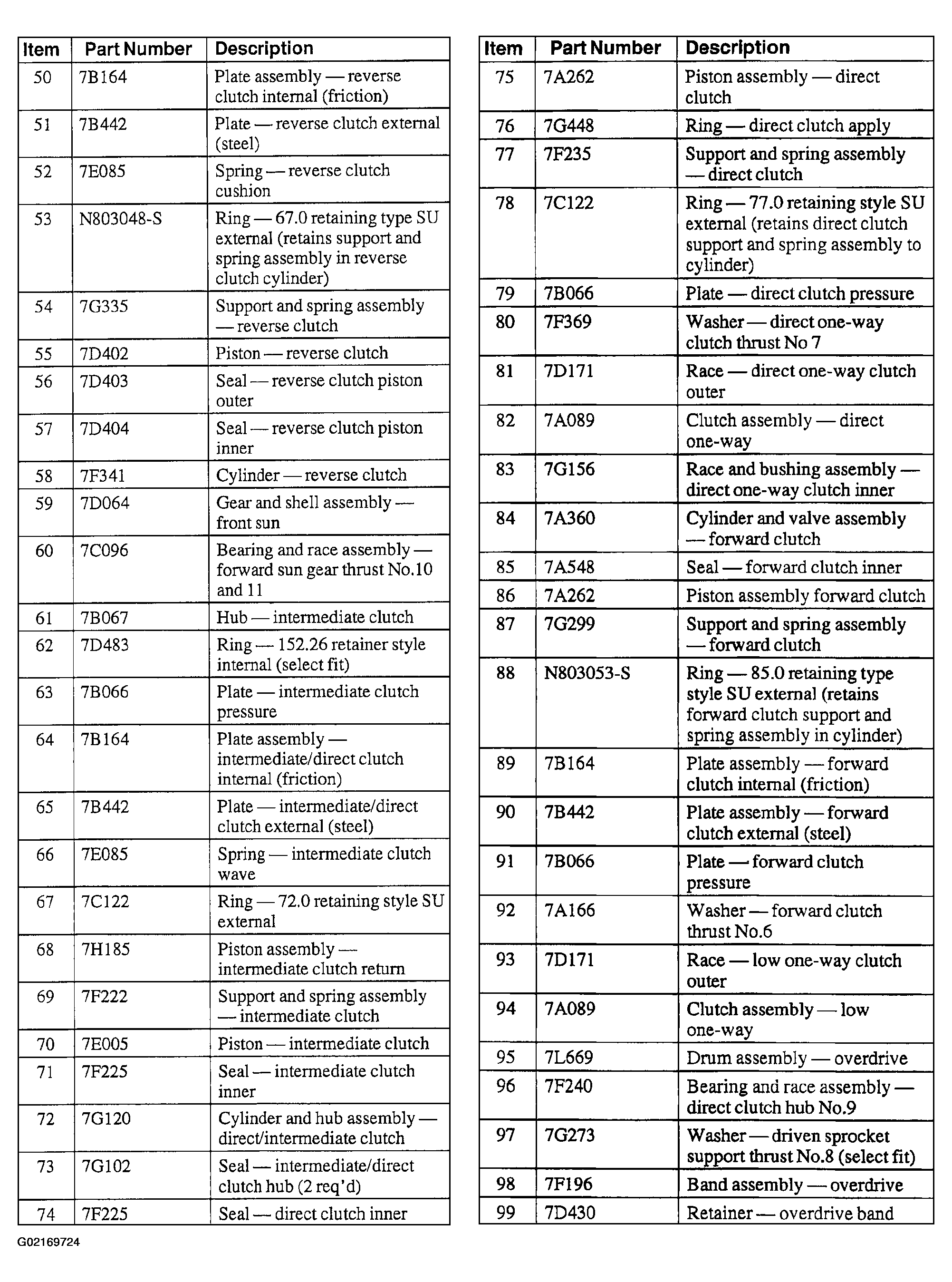

Fig 6: Disassembled View Legend (6 Of 9)

G02169724

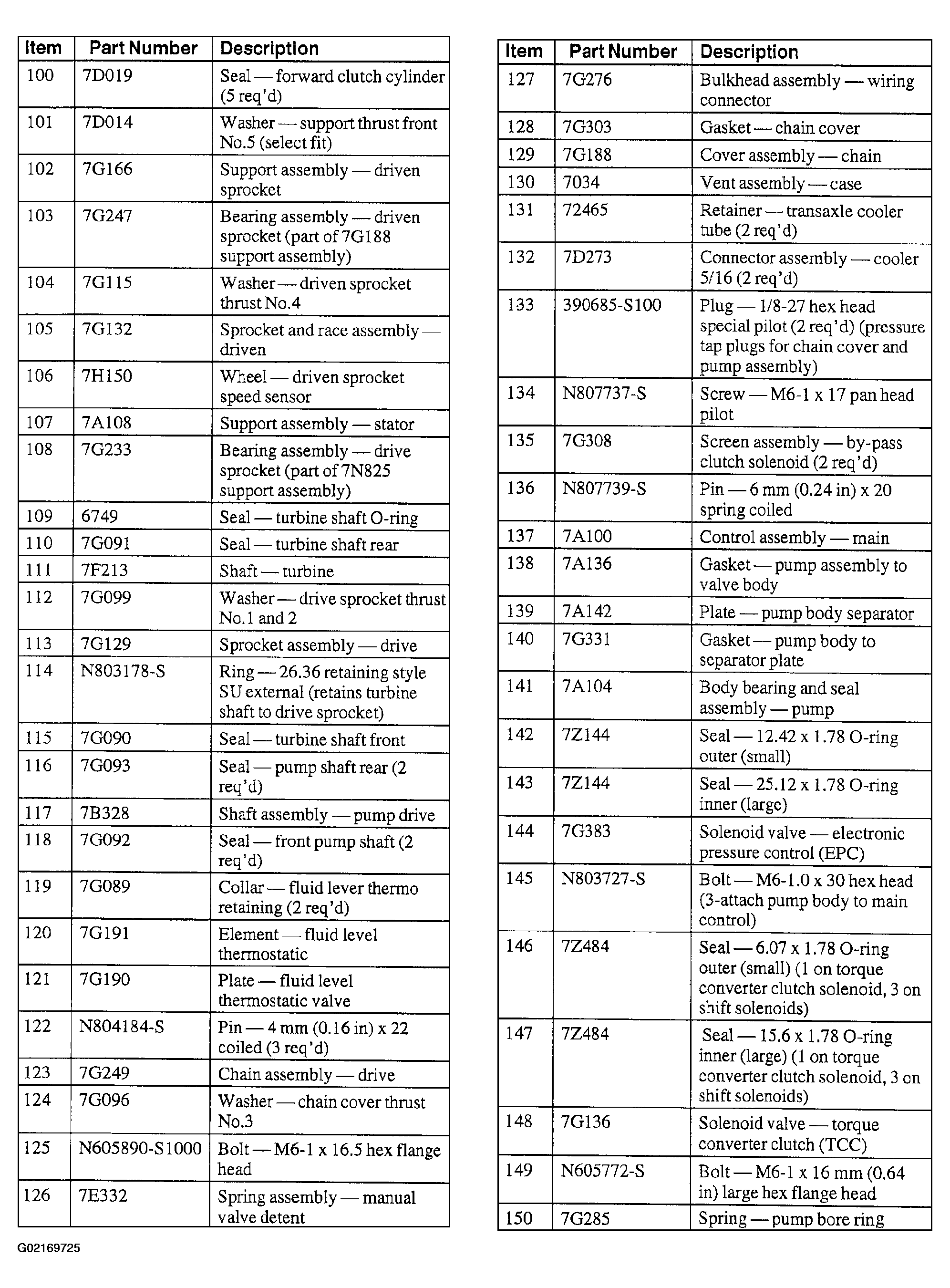

Fig 7: Disassembled View Legend (7 Of 9)

G02169725

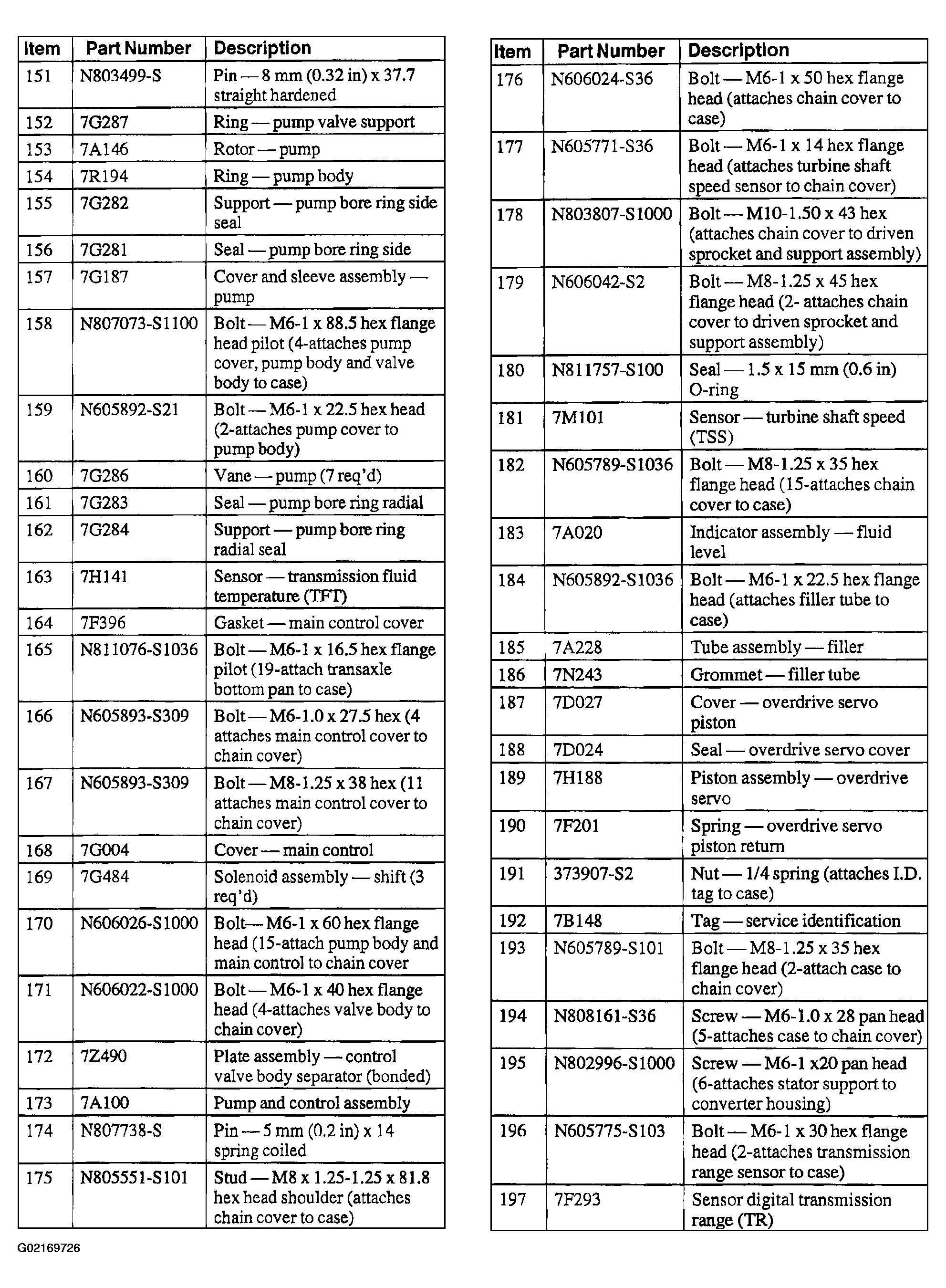

Fig 8: Disassembled View Legend (8 Of 9)

G02169726

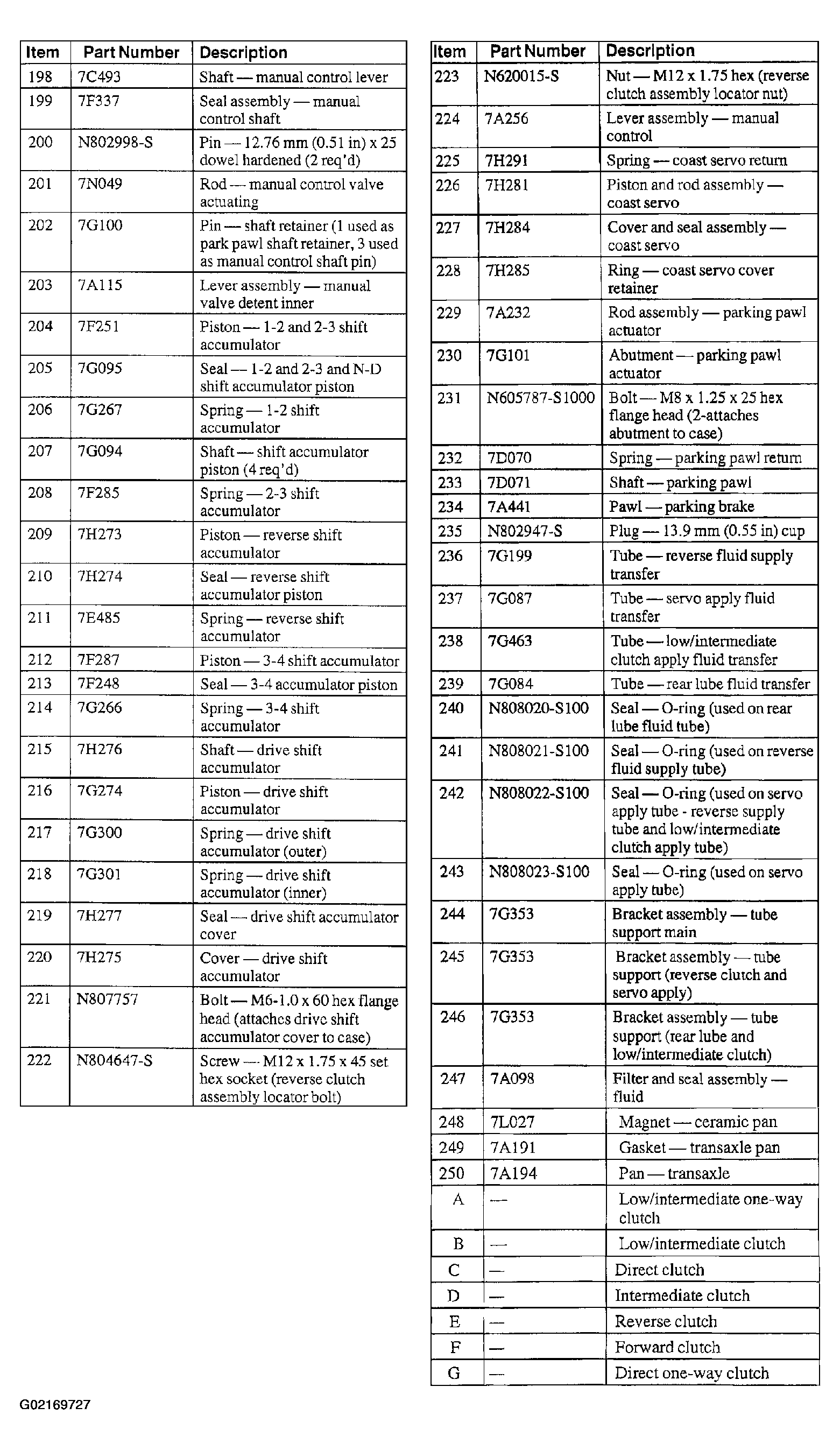

Fig 9: Disassembled View Legend (9 Of 9)

G02169727
