Neutral Drive Accumulator

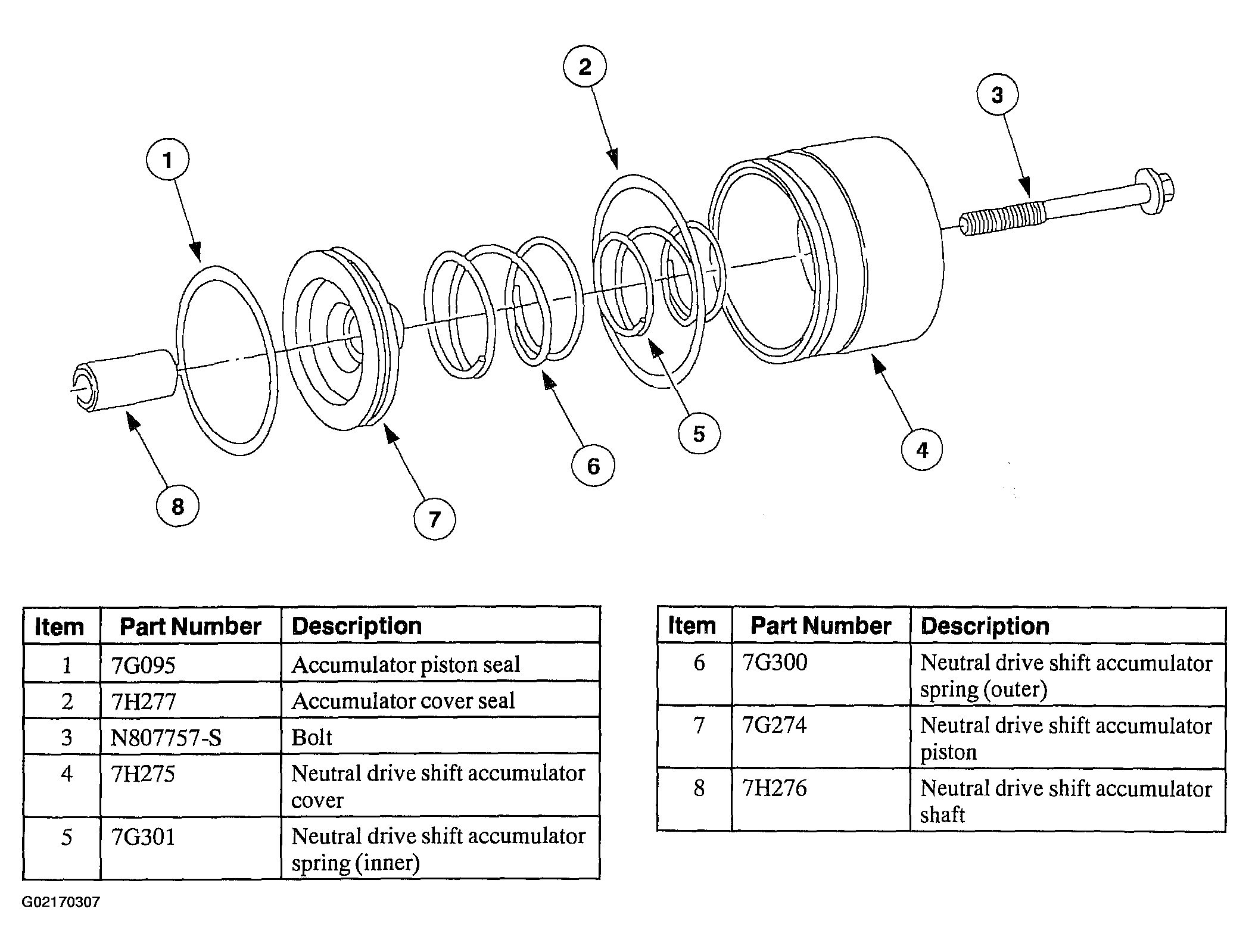

Fig 1: Neutral Drive Accumulator Exploded View
G02170307
  1. NOTE: Lightly coat the seals with petroleum jelly prior to installation.
    • Remove and replace the neutral drive accumulator piston seal.
    • Remove and replace the neutral drive accumulator cover seal.
      Fig 2: Replacing Seals
      G02170308
