Torque Converter End Play Check

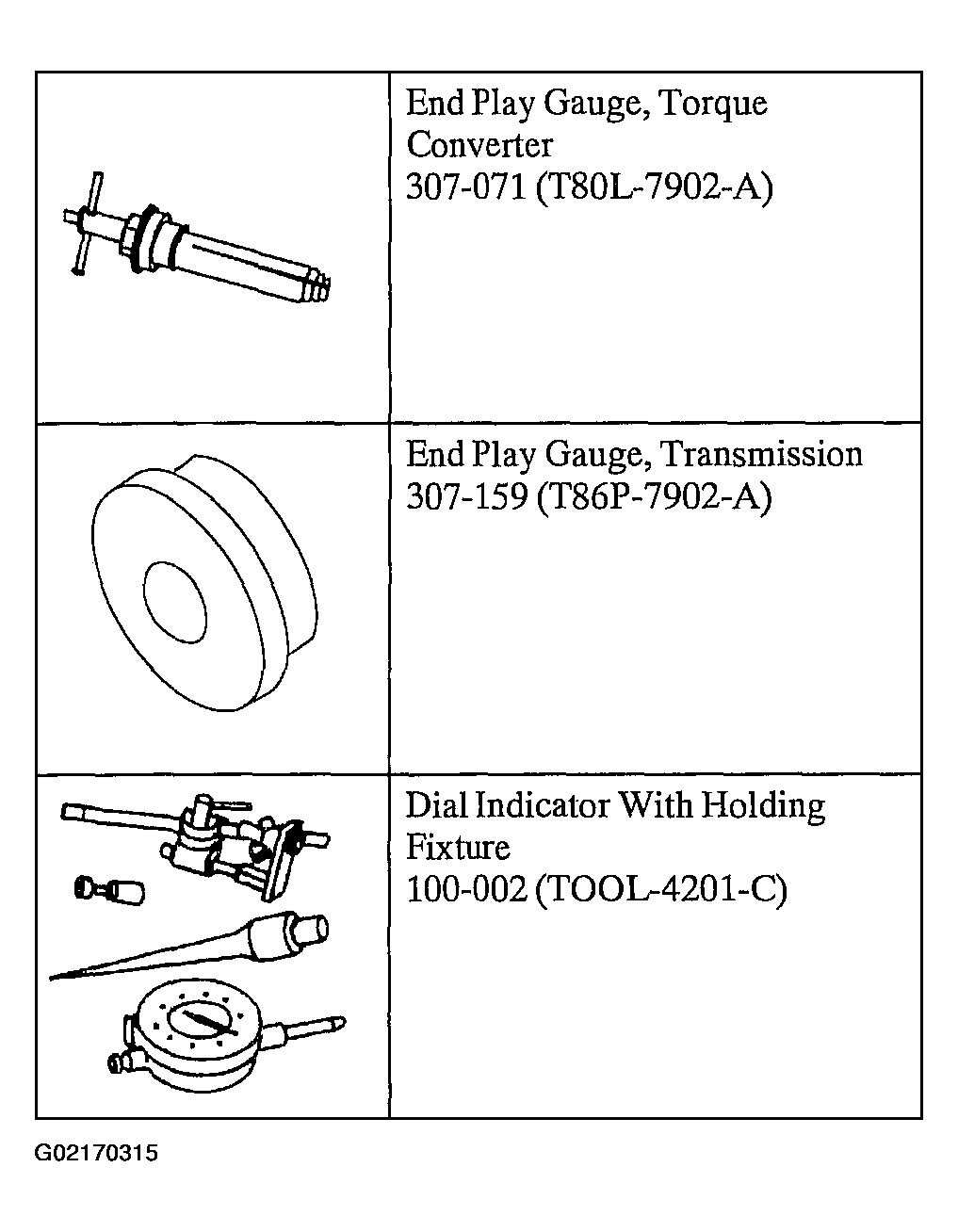

Fig 1: Special Tool(s)
G02170315
  1. Install the special tool.
    Fig 2: Installing Special Tool
    G02170316
  2. Tighten the nut.

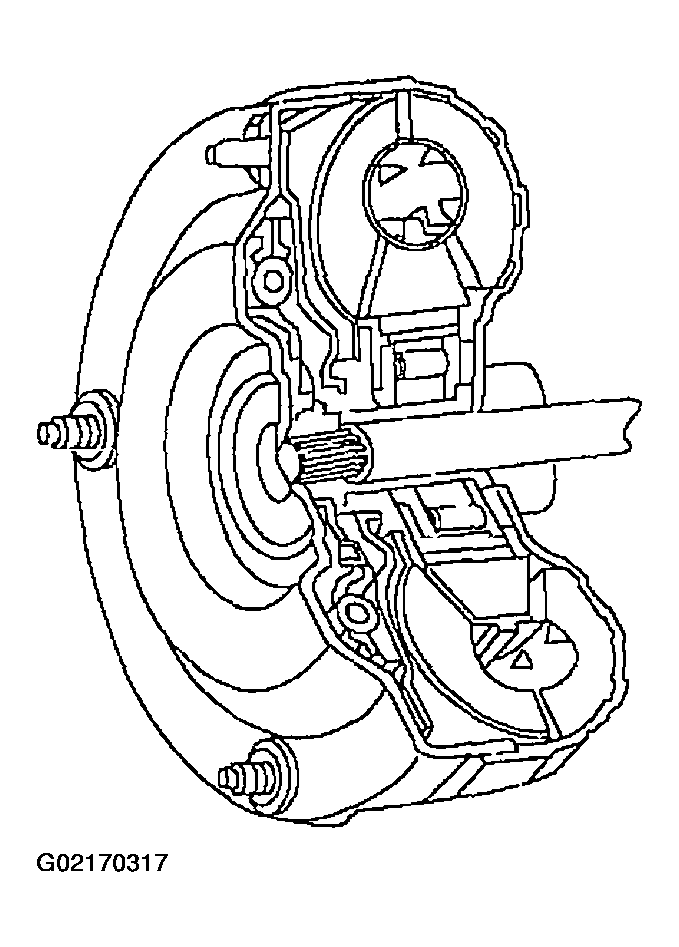

    Fig 3: Tightening Nut
    G02170317
  3. Install the special tool.
    Fig 4: Installing Special Tool
    G02170318
    4. NOTE: If the indicator reading is above specification, replace the torque converter (7902).

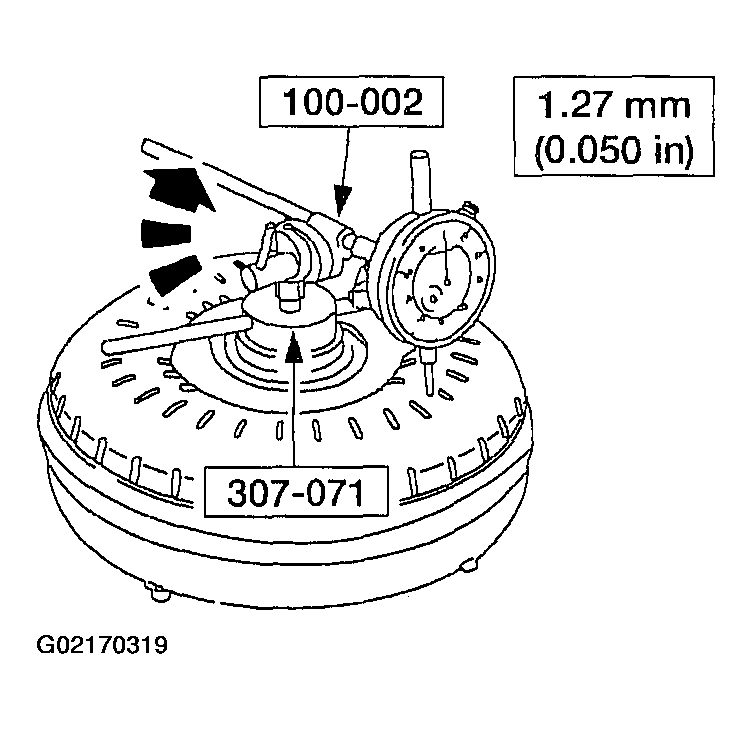

    Fig 5: Checking End Play
    G02170319
  4. With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.
