End Play Specifications

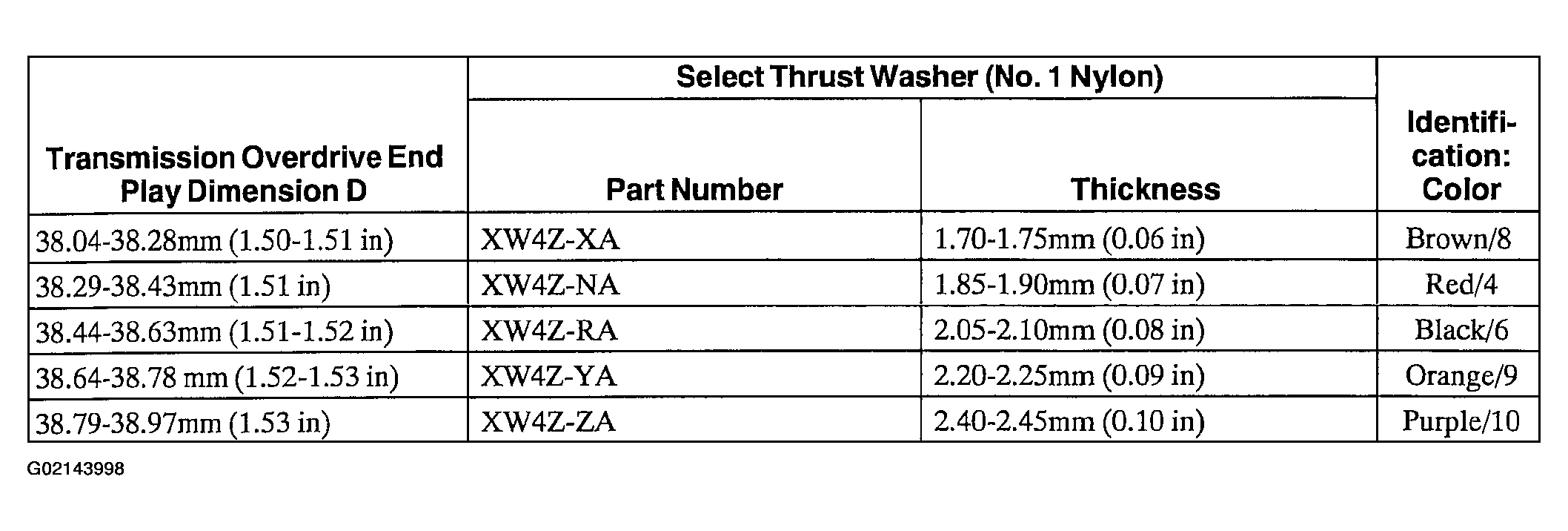

Fig 1: End Play Specifications (1 Of 2)

G02143998

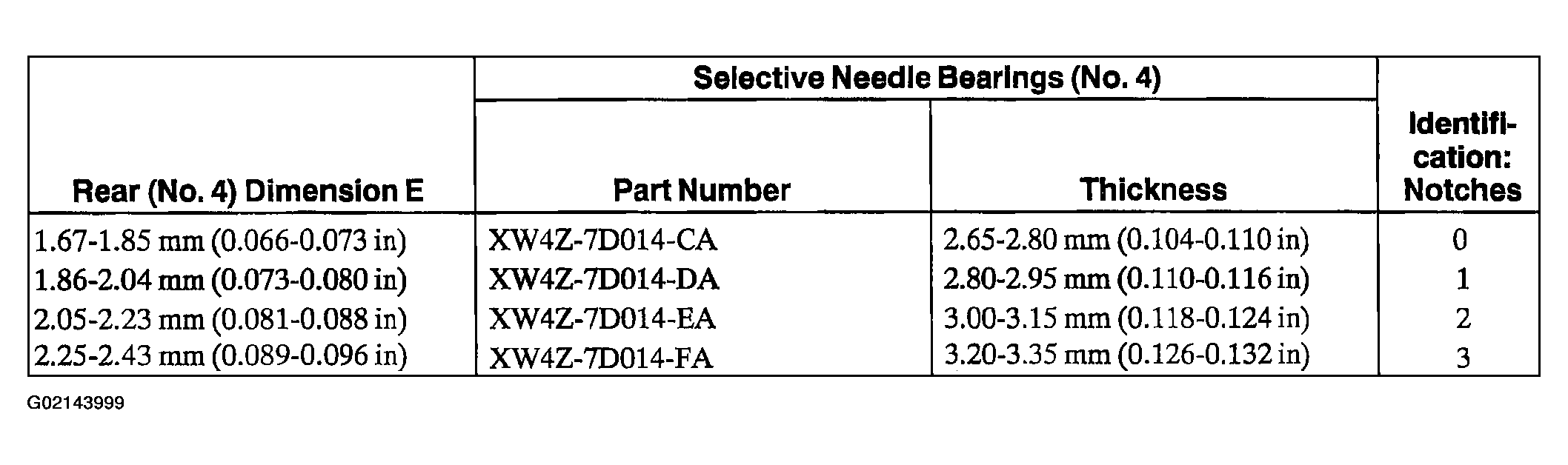

Fig 2: End Play Specifications (2 Of 2)

G02143999
