Overdrive Planetary & One-Way Clutch Assembly: Notes

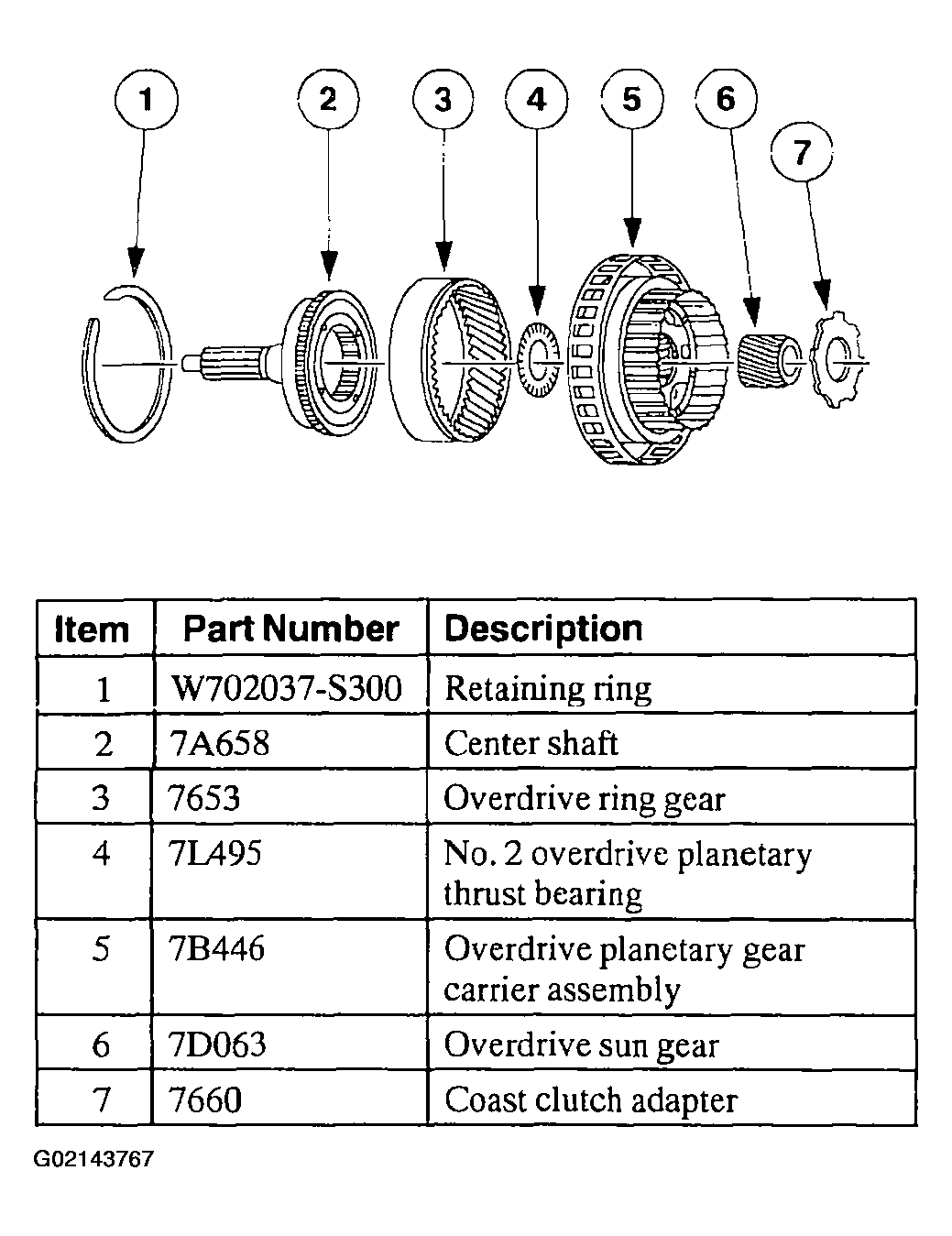

Fig 1: Overdrive Planetary & One-Way Clutch Assembly - Exploded View

G02143767
